Description

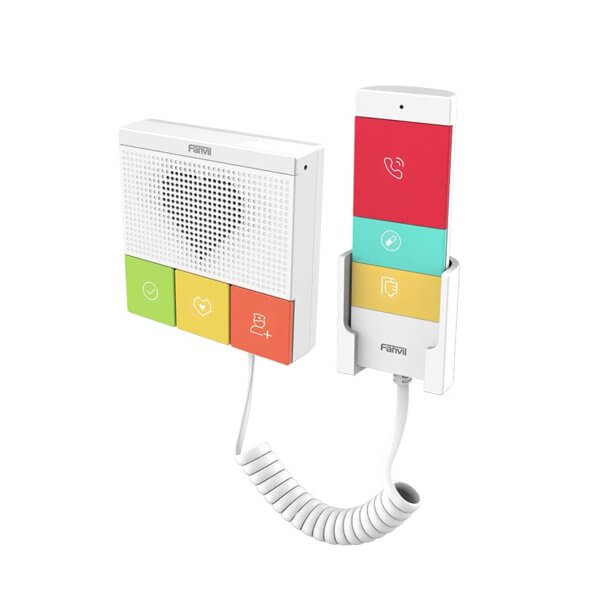

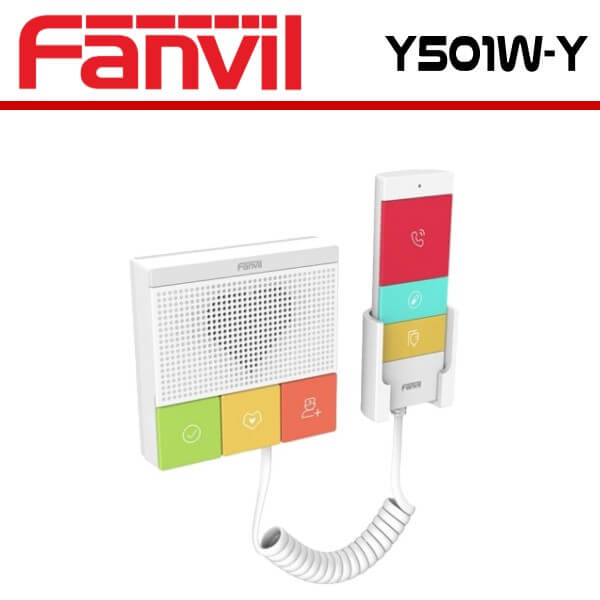

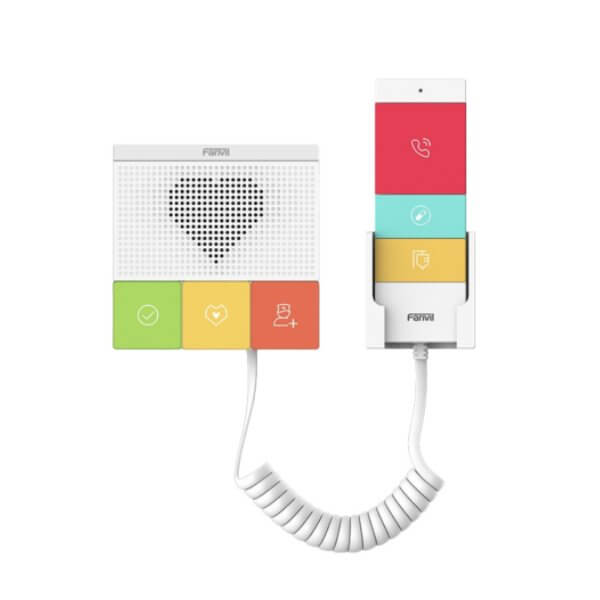

Fanvil Y501W-Y SIP Intercom Nigeria

The Fanvil Y501W-Y Nigeria SIP healthcare intercoms are tailored for indoor applications like home care and nursing homes, serving as crucial tools for emergency communication, security enhancement, and efficient broadcasting. With high-definition audio, support for 2 SIP accounts, detachable DSS keys, and IP54 waterproof and dustproof certification, these devices optimize functionality and user experience.

The Y501W-Y and Y501W-Y-E models feature built-in 2.4G and 5G Wi-Fi for improved connectivity. They offer flexible installation options, including standard 86 box embedded and wall-mountable choices, ensuring seamless integration into existing setups. Whether in home care or nursing facilities, the Fanvil Y501W-Y Nigeria intercoms prioritize convenience, reliability, and enhanced patient care and safety.

Highlights

• Support audio codec G.722 and Opus.
• Support specific 433MHz wireless button
• Features 2 SIP accounts and 6 antibacterial material detachable function buttons
• Support HD audio with codec G.722 and Opus
• Built-in 2.4G&5G Wi-Fi(Y501W-Y/Y501W-Y-E)
• Built-in 1 short circuit input/output interface
• IP54 waterproof and dustproof
• Support PoE power supply
• Support wall mountable installation (Y501-Y/Y501W-Y) and 86 box embedded installation(Y501-Y-E/Y501W-Y-E)

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4GHz & 5G Wi-Fi(Y501W-Y/Y501W-Y-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Support wireless button (Optional)
• Network Time Synchronization
• Built-in Wi-Fi
  • 2.4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• WIFI : 2.4G & 5G (Y501W-Y/Y501W-Y-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Y501-Y Series : 6 DSS buttons (Finish, Nursing, Assistant, Call,Dressing change, Infusion)
• Up to 10 wireless buttons supported
• Status indicator light : Red(registration failed、network anomaly)、Green(registration successful、call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 0.94W~1.98W(Y501-Y/Y501-Y-E)
  • 1.42W~2.35W(Y501W-Y/Y501W-Y-E)
• Power Consumption (PoE)：
  • 1.48W~2.37W(Y501-Y/Y501-Y-E)
  • 1.99W~3.05W(Y501W-Y/Y501W-Y-E)
• Housing material : ABS
• 433 wireless button specification：
  • communication mode：FSK
  • working frequency：433MHZ
  • communication protocol：Ebelong1.1
• Installation : Indoor installation
  • Standard 86 Box Embedded
  • Wall Mountable
• Color : White
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• N.W/CNT：3.97kg
• G.W/CNT：4.4 kg
• Equipment Dimension :
  • 87.56 x 87.56 x 30mm (Wall Mountable)
  • 87.56 x 87.56 x 21.5mm (86 Box Embedded)
• Packing Dimension : 234x168x44 mm
• Outer CTN Dimension : 356x245x254mm (10pcs)
