Description

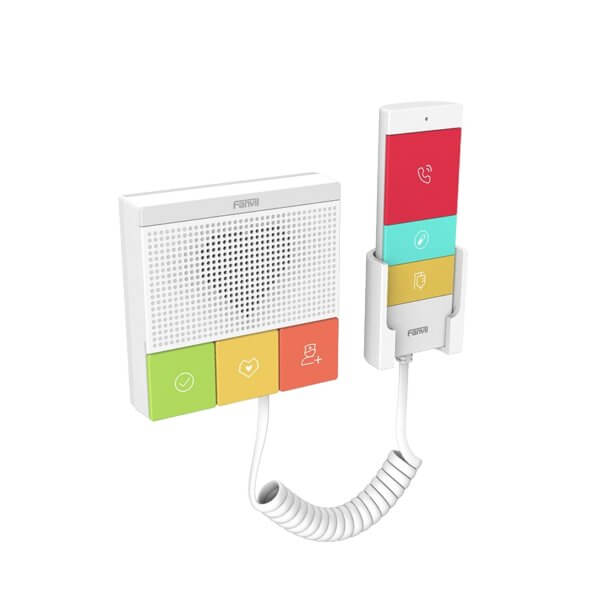

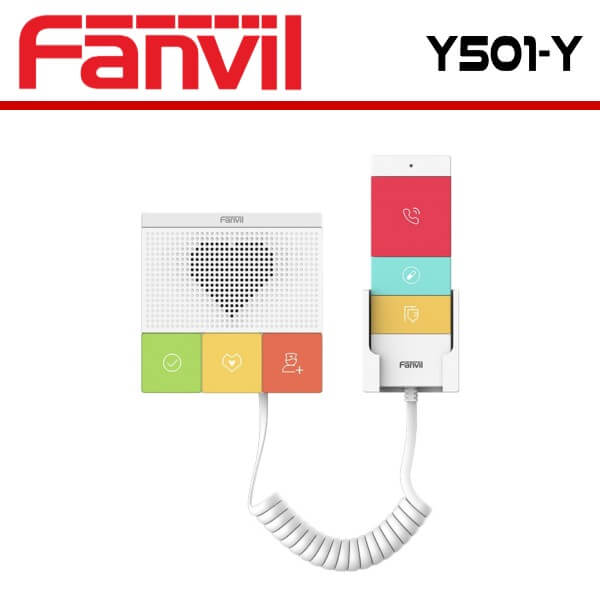

Fanvil Y501-Y SIP Intercom Nigeria
The Fanvil Y501-Y Nigeria SIP healthcare intercoms are advanced solutions designed for healthcare environments like home-based care, nursing houses, and indoor facilities where communication and security are critical. These systems offer features such as emergency communication, security, and broadcasting to enhance care and safety. With high-definition audio, support for 2 SIP accounts, and customizable detachable keys, they prioritize user experience and efficiency. They are built to endure harsh conditions with IP54 waterproof and dustproof ratings.
The Y501-Y series includes built-in 2.4G & 5G Wi-Fi for flexible connectivity, ensuring uninterrupted communication even in areas where wired connections are challenging. Installation options for the Fanvil Y501-Y Nigeria include standard 86 box embedding and wall mounting, adapting to diverse architectural environments. Fanvil’s commitment to quality and reliability ensures these intercoms set a new standard for healthcare communication, revolutionizing patient care and safety.
Highlights
- Support audio codec G.722 and Opus.
- Support specific 433MHz wireless button
- Features 2 SIP accounts and 6 antibacterial material detachable function buttons
- Support HD audio with codec G.722 and Opus
- Built-in 2.4G&5G Wi-Fi(Y501W-Y/Y501W-Y-E)
- Built-in 1 short circuit input/output interface
- IP54 waterproof and dustproof
- Support PoE power supply
- Support wall mountable installation (Y501-Y/Y501W-Y) and 86 box embedded installation(Y501-Y-E/Y501W-Y-E)
Features
Generic
- 2 SIP Lines
- Auto answer
- HD Voice
- PoE Enabled
- Built-in 2.4GHz & 5G Wi-Fi(Y501W-Y/Y501W-Y-E)
- Intercom function
- External Power Supply (Optional)
Intercom Function
- Support customized DSS keys
- Support wireless button (Optional)
- Network Time Synchronization
- Built-in Wi-Fi
- 2.4G, 802.11 b/g/n
- 5G, 802.11 a/n
- Action URL / Active URL
Audio
- Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
- Wideband Codec : G.722, Opus
- Duplex intercom with Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer up to 300ms
- DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
Networking
- Physical : 10/100 Mbps Ethernet
- WIFI : 2.4G & 5G (Y501W-Y/Y501W-Y-E)
- IP Mode : IPv4/IPv6/IPv4&IPv6
- IP Configuration : Static / DHCP / PPPoE
- Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
- VPN : L2TP / OpenVPN
- VLAN
- LLDP
- QoS
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- LLDP
- PPPoE
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Physical Specifications
- Y501-Y Series : 6 DSS buttons (Finish, Nursing, Assistant, Call,Dressing change, Infusion)
- Up to 10 wireless buttons supported
- Status indicator light : Red(registration failed、network anomaly)、Green(registration successful、call)
- 1 RJ45 port
- 1 short circuit input interface
- 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
- Power : DC12V/1A or POE
- Power Consumption (Adapter):
- 0.94W~1.98W(Y501-Y/Y501-Y-E)
- 1.42W~2.35W(Y501W-Y/Y501W-Y-E)
- Power Consumption (PoE):
- 1.48W~2.37W(Y501-Y/Y501-Y-E)
- 1.99W~3.05W(Y501W-Y/Y501W-Y-E)
- Housing material : ABS
- 433 wireless button specification:
- communication mode:FSK
- working frequency:433MHZ
- communication protocol:Ebelong1.1
- Installation : Indoor installation
- Standard 86 Box Embedded
- Wall Mountable
- Color : White
- working temperature : -10 ~50 °C
- Storage temperature : -20 ~ 50 °C
- Relative humidity : 10% – 90%
- N.W/CNT:3.97kg
- G.W/CNT:4.4 kg
- Equipment Dimension :
- 87.56 x 87.56 x 30mm (Wall Mountable)
- 87.56 x 87.56 x 21.5mm (86 Box Embedded)
- Packing Dimension : 234x168x44 mm
- Outer CTN Dimension : 356x245x254mm (10pcs)
