Description

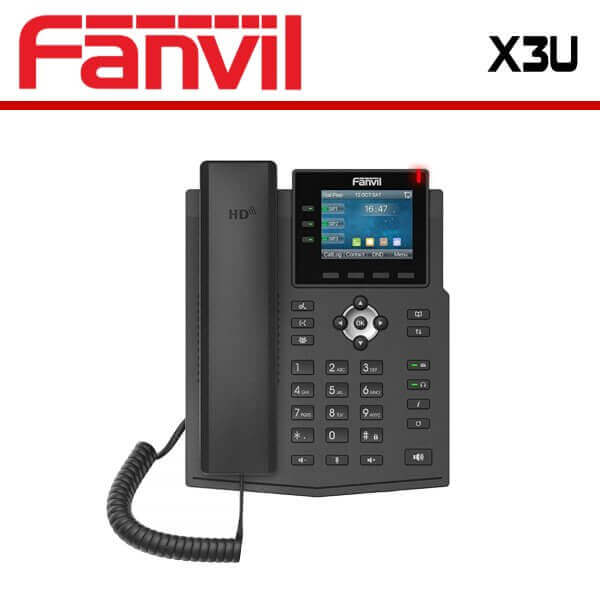

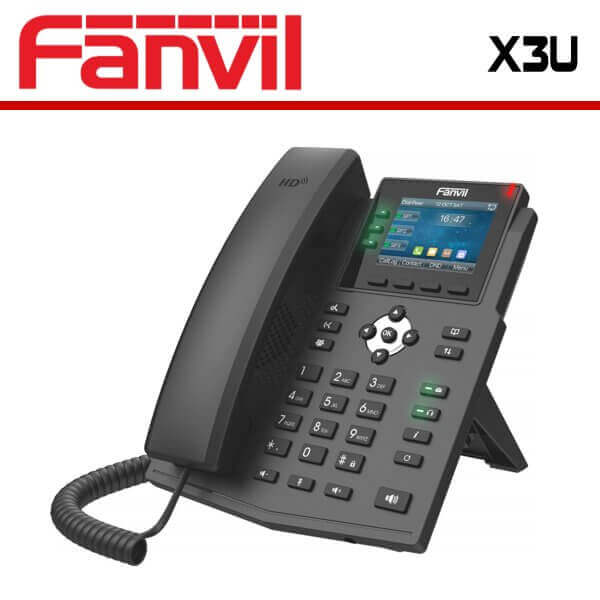

Fanvil X3U IP phone Nigeria
The Fanvil X3U Nigeria features a 2.8inch color-screen display, dual gigabit ports and supports EHS headsets. The Fanvil X3U Nigeria is an entry-level Gigabit IP Phone that does not compromise features and quality. The X3U Pro supports 6 SIP lines and has 3 line keys on the main display. This IP Phone has HD audio on both the speakerphone and the handset. The Fanvil X3U Nigeria is perfect for deployments where basic phone features are required, but a stylish and elegant design are needed.
The Fanvil X3U has HD audio on both the speakerphone and the handset. It also supports Opus thus guaranteeing you of crystal clear voices during phone calls. As an ideal cost-effective Gigabit IP phone, Fanvil X3U provides the direct access to instructions with the intuitive design of the high-resolution color display and newly increased line keys, offering you greater flexibility, productivity, to exceed the different demands of businesses.
Features
- 6 SIP Lines, 3 Way Conference, SIP Hotspot
- 3 Line Keys on Main Display – With LED Light
- 8 Inch Main Colour Display
- HD Audio on Speakerphone and Handset
- Opus Voice – Can Handle a Variety of Audio Applications, Including IP Voice, Multiparty Conference etc
- Supports EHS Wireless Headset
- Dual Gigabit Ports, Integrated PoE
- Support IPv4, IPv6 Protocol
- Stand with 2 Adjustable Angles of 45 and 50 Degrees
- Compatible with Major Platforms Such as – Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya and more
Clear Backlight Screen
The Fanvil X3U Nigeria comes with a large 2.8″ 320 x 240 pixel Color LCD Screen which delivers an enhanced visual clarity, as well as an easy and quick access to information . The backlit screen is easy to read even in poor light conditions.
6 – Line Operation
A user can easily make or receive calls using 6 different SIP lines. This feature is not only highly efficient in offices, but is also useful in boosting the productivity of workers.
Supports 3-way conferences
The Fanvil X3U Nigeria IP Phone is designed to allow for 3-way group calls to enable you to have a teleconference with two other parties, delivering a more powerful and flexible session management.
PoE (Power over Ethernet) Integrated
Fanvil X3U Nigeria IP Phone is equipped with two 10/100Mbps Gigabit Ethernet ports to allow for an easy connection to Power over Ethernet. It is designed without any heavy cabling thus reducing the number of wires on your working space and allowing for an easy installation of the IP Phone.
Multi-Platform Compatibility
Based on SIP, Fanvil X3U Nigeria IP Phone is configured to allow for a full compatibility with major leading professional office platforms including Asterisk, 3CX, Elastix, BroadSoft, Zycoo, and many other world’s top platforms.
Specifications
Generic
- 6 SIP Lines
- HD Voice
- PoE enabled
- 2.8 inch colour screen
- Handset / Hands-free / Headst mode
- Desktop stand/ Wall-mounted installation (needs additional wall handing parts)
- Optional external power supply
Phone functions
- Local Phonebook (1000 entries)
- Remote Phonebook (XML/LDAP, 1000 entries)
- Call logs (In/Out/Missed, 600 entries)
- Black/White List Call Filter
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
- Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
- Support Recording (Through Server)
- Action URL / Active URI
- uaCSTA
Call functions
- Call out / Answer / Reject
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forward (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Parking/Pick-up (Depending on server)
- Redial
- Do-Not-Disturb
- Auto-Answering
- Voice Message (With server)
- 3-way Conference
- Hot Line
- Hot desking
Audio
- HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
- HAC handset
- Wideband ADC/DAC 16KHz Sampling
- Narrowband Codec : G.711a/u, G.726-32K, G.729A, iLBC
- Wideband Codec : G.722, Opus
- Full-duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer
- DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
Networking
- Physical : 10/100 Mbps Ethernet, dual bridged port for PC bypass
- IP Mode : IPv4/IPv6/IPv4&IPv6
- IP Configuration : Static IP / DHCP / PPPoE
- Network Access Control : 802.1x
- VPN : L2TP / OpenVPN
- VLAN
- LLDP
- QoS
- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Deployment & Management
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR069
- Web Management Portal
- Web-based Packet Dump
- Configuration Export / Import
- Phonebook Import/Export
- Firmware Upgrade
- Syslog
Physical Specifications
- Main LCD x1 : 2.8-inch (320×240) Color Screen
Keypad : 37 keys, including
– 4 Soft-keys
– 9 Function keys (Hold/Transfer/Conference/Phonebook /MWI/Headset/Redial)
– 2 Line keys (With LED Indicator Light)
– 4 Navigation keys
– 1 OK key
– 12 Standard Phone Digits keys
– 3 Volume Control keys (Up/Down/Mute (Microphone))
– 1 Hands-free key - HD Handset (RJ9) x1
- Standard RJ9 Handset Wire x1
- 1.5M CAT5 Ethernet Cable x1
- Back Rack x1
- Status Indicator Light x1 (Red)

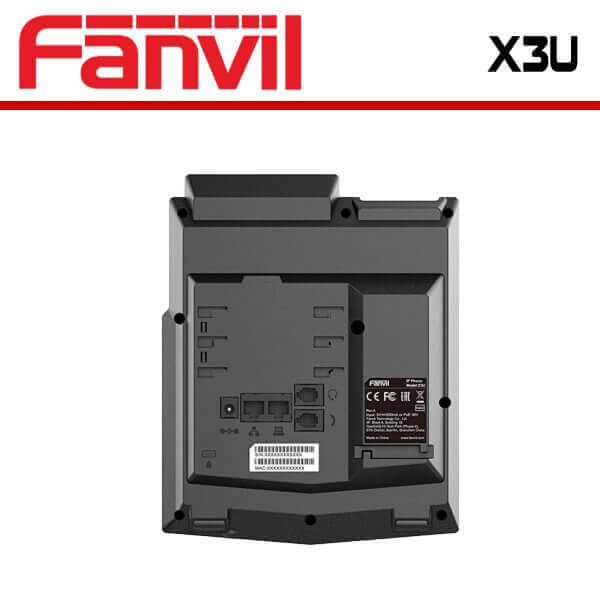

- RJ9 Port x2 : Handset x1, Headset x1
- RJ45 Port x2 : Network x1, PC x1 (Bridged to Network)
- Safety Keyhole x1
- DC Power Input : 5V/0.6A
- Power Consumption : Idle 0.9~1.65W,Peak 1.8~2.95W
- Working Temperature : 0~45℃
- Working Humidity : 10~95%
- Installation :
– Desktop Stand
– Wall-mounted (need an additional wall hanging parts) - Color : Black
– Device Dimensions :
– Desktop Stand (Angles 1) : 169×186.3×174.5 mm
– Desktop Stand (Angles 2) : 169×177.6×183.7 mm
– Wall-mounted : 169×115.6×212.5 mm - Gift Box Dimensions : 274x215x68 mm
- Outer CTN Dimensions : 450x360x294 mm (10 PCS)
