Fanvil X3SG Nigeria

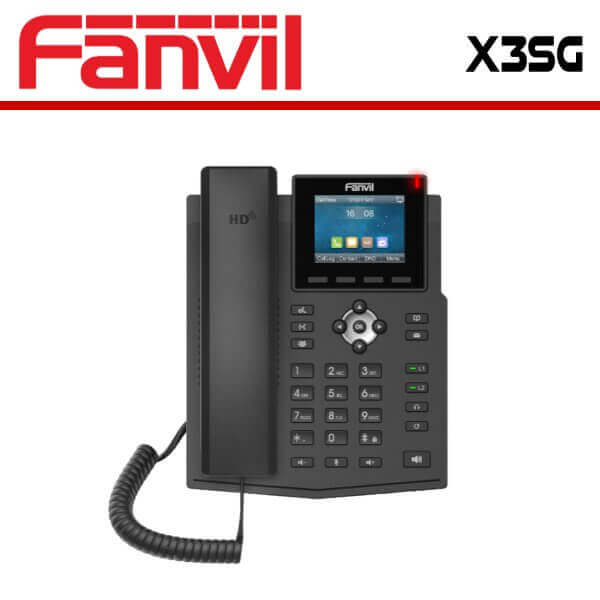

The Fanvil X3SG Nigeria is entry Level IP Phone takes communication a notch higher using its numerous advanced features. It is an upgrade version of the Fanvil X3G IP Phone.

Category:

Description

Fanvil X3SG Entry Level IP Phone Nigeria

The Fanvil X3SG Nigeria is entry Level IP Phone takes communication a notch higher using its numerous advanced features. It is an upgrade version of the Fanvil X3G IP Phone. The Fanvil X3SG Nigeria IP Phone runs on IPV6 Linux System and is designed to support Opus codec as well as Power over Ethernet. Its large 2.8″ color screen display not only enhances visual clarity, but also gives an easy access to information. Newly added function keys increased SIP lines and supported EHS headset also make it an efficient business tool in office.

Fanvil X3SG Nigeria offers a smoother user experience, much more visual information at a glance, plus HD Voice characteristics. Dual 10/100 Mbps(X3G : 10/100/1000 Mbps) network ports with integrated PoE are ideal for extended network use. The X3S series supports two VoIP accounts, simple, flexible, and secure installation options, Open VPN. It also operates with SRTP/ HTTPS/ TLS, 802.1x. As a very cost-effective and powerful IP solution, the X3SP maximizes productivity in both small and large office environments.

Features

  • 4 SIP lines, 3-way conference, SIP hotspot
  • 8” main color display
  • HD audio on speakerphone and handset
  • Opus voice : can handle a variety of audio applications, including IP voice, multiparty conference etc.
  • Support EHS wireless headset
  • Dual Gigabit ports, integrated PoE
  • Stand with 2 adjustable angles of 45 and 50 degrees
  • Compatible with major platforms : Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, and many others.

2.8-inch Colour Display

Bright 2.8-inch 320×240 color display on Fanvil X3SG Nigeria IP phone, provides high-resolution graphics for the user.

Enhanced HD Audio Communication

With wideband codec G.722 and Opus, Fanvil X3SG Nigeria prevents the background noise from the external environment and presents you ideal HD audio in communication

Support EHS headset Free your Hands

Wireless EHS headset supported by Fanvil X3SG new version through EHS cable allows you to deal with other issues while making a phone call, which is more productive in many working spaces.

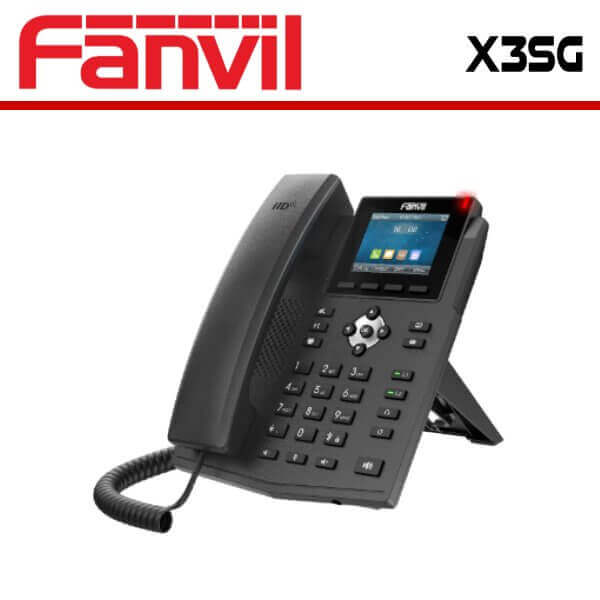

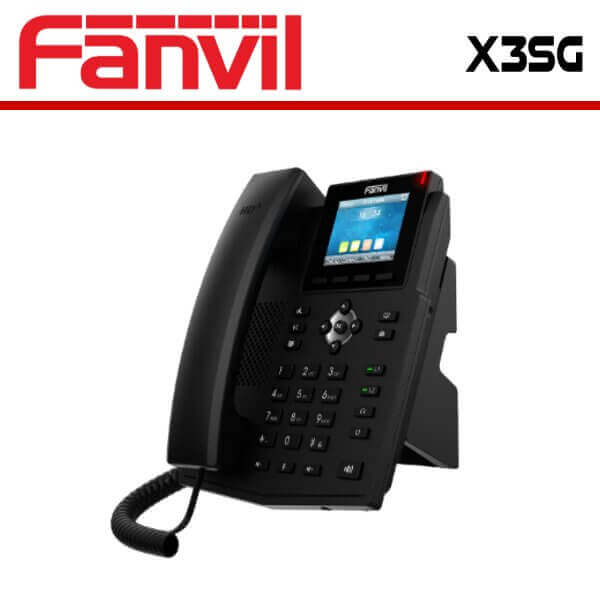

Flexible Installation Mode

Fanvil X3SG Nigeria can be installed in the desktop stand mode with two different angles but also in a wall-mounted mode by an additional hanging part, addressing the diverse applications.

Specifications

Generic

  • 20 SIP lines
  • HD Voice
  • Support receiving Video Call
  • PoE Enabled
  • 3 LCDs (Main + DSS)
  • Handset / Hands-free / Headphone mode
  • Intelligent DSS Keys
  • Desktop Stand / Wall-mounted (need an additional wall hanging part)
  • Optional External Power Supply

Phone Functions

  • Local Phonebook (2000 entries)
  • Remote Phonebook (XML/LDAP, 2000 entries)
  • Call logs (In/Out/Missed, 1000 entries)
  • Black/White List Call Filter
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronisation
  • Built-in Bluetooth 2.1 : Support Bluetooth headset
  • Support WiFi Dongle
  • Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
  • Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
  • Support Recording (Through Flash Drive or Server)
  • Action URL/Active URI
  • uaCSTA

Call Functions

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forward (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (With server)
  • 3-way Conference
  • Hot Line
  • Hot desking

Video

  • Video codec : H.264
  • Video call resolution : QCIF / CIF / VGA

Audio

  • HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz Frequency Response)
  • HAC handset
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec : G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
  • Wideband Codec : G.722, AMR-WB, Opus
  • Full-Duplex Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD)/Comfort Noise Generation (CNG)/Background Noise Estimation (BNE)/Noise Reduction (NR)
  • Packet loss concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF : In-band, Out-of-band – DTMF-Relay (RFC2833)/SIP INFO

Network

  • Physical : 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
  • IP Mode : IPv4/IPv6/IPv4&IPv6
  • IP Configuration : Static IP / DHCP / PPPoE
  • Network Access Control : 802.1x
  • VPN : L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

  • 0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • LLDP
  • PPPoE
  • 1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Deployment & Management

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Export / Import
  • Phonebook Import/Export
  • Firmware Upgrade
  • Syslog

Physical Specifications

  • Main LCD x1 : 4.3 inch (480×272) LCD colour screen
  • DSS Key-mapping LCD x2 : 2.4 inch (240×320) LCD colour screen
  • Keypad : 51 keys, including
    – 5 Line Keys (with LED Indicator Light)
    – 4 Soft-keys
    – 8 function keys (hold, call forward, conference, phonebook, call log, MWI, headset, redial)
    – 4 Navigation keys
    – 12 Standard Phone Digits keys
    – 3 Volume Control keys (Up/Down/Mute (Microphone))
    – 12 DSS Keys (With LED Indicator Light)
    – 1 Page-Switch (PS) key (With LED Indicator Light)
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 5M CAT5 Ethernet Cable x1
  • Back Rack x1
  • Status Indicator Light x1 (Red)
  • RJ9 Port x2 : Handset x1, Headset x1
  • RJ45 Port x2 : Network x1, PC x1 (Bridged to Network)
  • 0 Port x1 (Connect with USB dongle or flash driver)
  • Safety keyhole x1
  • DC Power Input : 5V/2A
  • Power Consumption (PoE) : 1.7W~10.46W
  • Power Consumption (Adapter) : 1.38W~9.13W
  • Working Temperature : 0 ~ 45℃
  • Working Humidity : 10 ~ 95%
  • Installation :
    – Desktop Stand
    – Wall-Mounted (need an additional wall hanging part)
  • Colour : Black
  • Device Dimensions :
    – Desktop Stand (Angle 1) : 239 x 199.3 x 185.8mm
    – Desktop Stand (Angle 2) : 239 x 188.5 x 195.6mm
    – Wall-Mounted : 239 x 119.2 x 233.6mm
  • Gift Box Dimensions : 335 x 243 x 84mm
  • Outer CTN Dimensions : 506 x 440 x 356mm (10 PCS)
