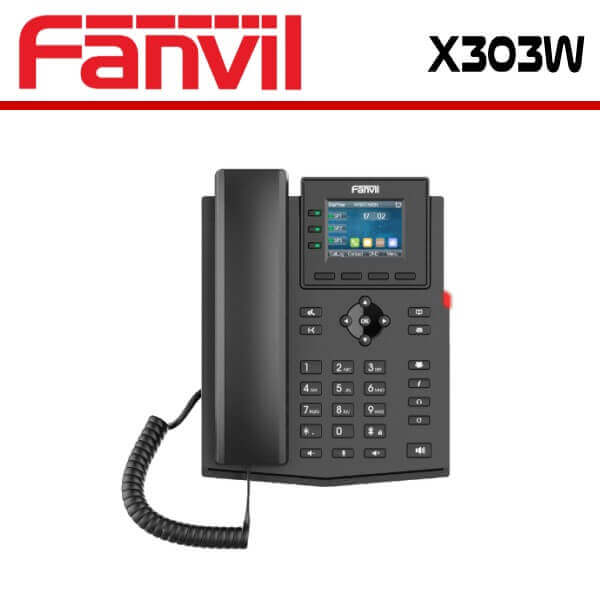

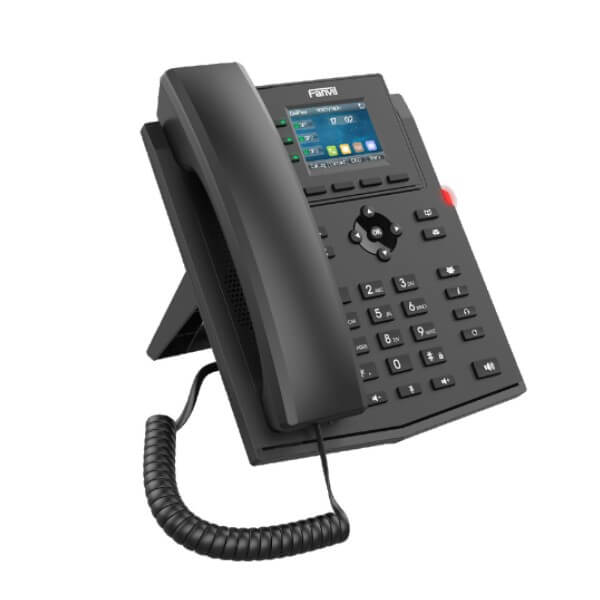

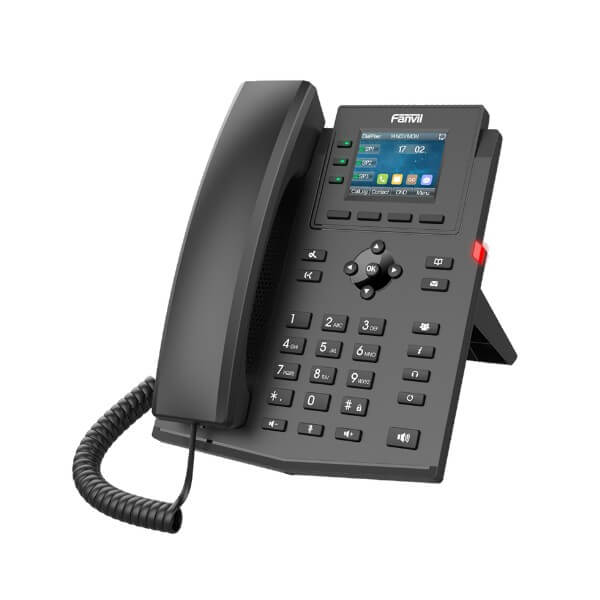

Fanvil X303W IP Phone Nigeria
The Fanvil X303W Nigeria is an affordable color screen Wi-Fi IP phone designed for business use, providing outstanding performance. Featuring a 2.4-inch 320×240 pixel color screen, it provides an easy-to-use interface, supports 4 SIP lines, and allows for 6-way audio conferences. With HD audio and built-in 2.4GHz & 5GHz Wi-Fi, the Fanvil X303W Nigeria guarantees efficient and high-quality communication for businesses.
Features
Generic
- 4 SIP Lines
- HD Voice
- PoE Enabled
- Built-in 2.4GHz & 5GHz Wi-Fi
- 2.4-inch color screen
- Handset / Hands-free / Headset mode
- Desktop Stand / Wall mountable (optional)
- External Power Supply Phone Functions
- Local Phonebook (1000 entries)
- Remote Phonebook (XML/LDAP, 1000 entries)
- Call logs (In/Out/Missed, 600 entries)
- Blocked List/Allowed List
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Support Poly wireless headset (Through Poly APD-80 EHS Cable)
- Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
- Support Recording (Through Server)
- Action URL / Active URI
- uaCSTA
Call Functions
- Call out / Answer / Reject
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forward (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Call Parking/Pick-up (Depending on server)
- Redial
- Do-Not-Disturb
- Auto-Answering
- Voice Message (On server)
- 6-way Audio Conference
- Hot Line
- Hot desking
Audio
- Wideband ADC/DAC 16KHz Sampling
- Narrowband Codec : G.711a/u,G.723.1,G.726, G.729A/B, iLBC
- Wideband Codec : G.722, Opus
- Full-duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC) X303W is the cost-effective color screen Wi-Fi IP phone with high performance specially for enterprise. It features a 2.4-inch 320×240 pixel color screen, supporting 4 SIP lines and 6-way audio conference to render a user-friendly experience. X303W has rich functions such as HD audio and built-in 2.4GHz & 5GHz Wi-Fi, providing an efficient and high-quality business communication experience for enterprises
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer
- DTMF : In-band, Out-of-Band (RFC2833/ SIP INFO)
- VQM voice quality monitoring
Network
- Physical : 10/100 Mbps Ethernet, dual bridged port for PC bypass
- IP Mode : IPv4/IPv6/IPv4&IPv6
- IP Configuration : Static IP / DHCP / PPPoE
- Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
- Network Access Control : 802.1x
- VPN : L2TP / OpenVPN
- VLAN
- LLDP
- QoS
- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
- AES128 & AES256
Physical Specifications
- LCD : 2.4-inch (320×240) Color Screen
- Handset (RJ9) x1
- Standard RJ9 Handset Wire x1
- 1.5M CAT.5E Ethernet Cable x1
- Desktop stand x1
- Status Indicator Light x1 (Red)
- RJ9 Port x2 : Handset x1, Headset x1
- RJ45 Port x2 : Network x1, PC x1 (Bridged to Network)
- Security Slot x1
- DC Power Input : DC5V / 1A
- Power Consumption (Adapter) : 1.218~2.39W
- Power Consumption (PoE) : 2.12~3.49W
- Working Temperature : 0~45℃
- Working Humidity : 10~95%
- Color : Black
- N.W/CTN : 8.98kg
- G.W/CTN : 9.69kg
- Gift Box Dimensions : 250x220x55mm
- Outer CTN Dimensions : 460x300x270mm (10 PCS)
