Description

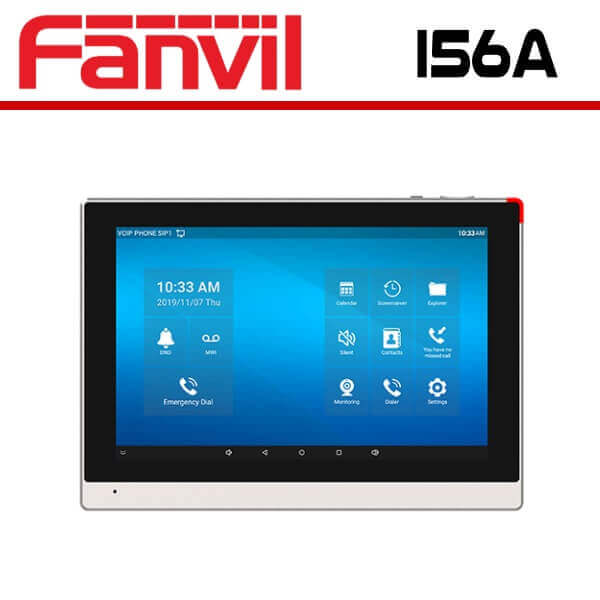

Fanvil i56A Indoor Station Nigeria
The Fanvil i56A Nigeria is a 10.1-inch colored touch screen SIP indoor station with Android 9.0 OS, which can be applied in different indoor scenarios. Working with door phone and intercom at the entrance, Fanvil i56A Nigeria can be easily achieved remote access control for residences. It can also be connected to alarms and other intelligent security devices via rich interfaces.
Features
- Android 9.0 OS
- 1-inch colour touch screen
- Built-in 1W double speakers with AEC
- Support visual intercom and remote access control
- Real-time monitor of the door phone and cameras
- Built-in 2.4G/5G WiFi and Bluetooth 5.0
- 1 pair of RS-485 interfaces
- 8 alarm input interfaces and 2 short circuit output interfaces

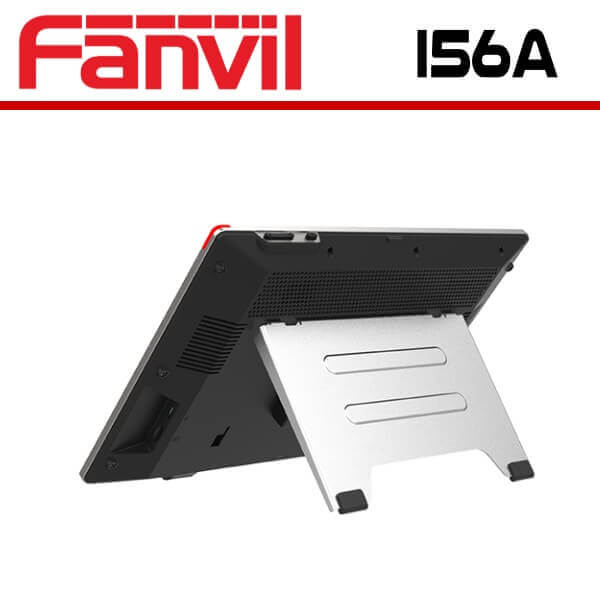

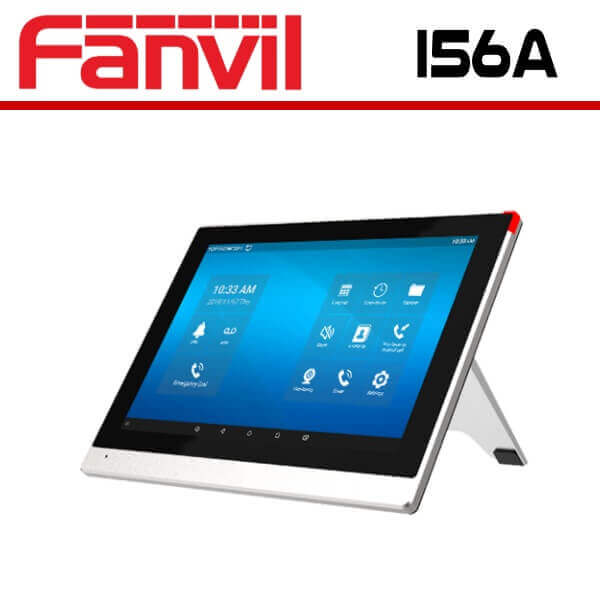

- Wall-mounted and desktop installation methods (with the external desk stand)
- Compatible with major platforms : 3CX, Avaya, Asterisk, BroadSoft, Metaswitch, Elastix and etc.
Elegant Design with 10.1 Inch Touch Screen
The Fanvil i56A Nigeria delivers a user-friendly experience with an elegant design and a clear 10.1″ colored touch screen.
Built-in 2.4Gz/5Ghz WiFi
The Fanvil i56A Nigeria features built-in 2.4Ghz/5Ghz WiFi, and allows users to choose wireless connection mode for different requirements.
HD Audio and Video Communication
Fanvil i56A Nigeria users can communicate with visitors with superb audio and clear video images.
Rich Interfaces
The Fanvil i56A Nigeria is flexible and powerful with rich interfaces to connect more security devices.
Specifications
General
- 6 SIP Lines
- HD Voice
- PoE
- External Power Supply(Optional)
Display
- 1 x LCD : 10.1-inch 1280×800 Colour Touch Screen
Audio
- Wideband ADC/DAC 16KHz sampling
- Narrowband Codec : G.711a/u, G.729AB, iLBc
- Wideband Codec : G.722, opus
- Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive litter Buffer up to 300ms
- DTMF : In-band, Out of Band DTMF (RFC2833) / SIP INFO
Video
- Hardware video decoding : H.264
- Video call resolution : QVGA / CIF / VGA / 4CIF / 720P / 1080P
Network
- 10/100 Mbps Ethernet
- IP Mode :IPv4
- IP Configuration : Static / DHCP
- Network Access Control : 802.1x
- VPN : OpenVPN (Requires third-party app support)
- VLAN
- LLDP
- CDP
- QoS
- WiFi
Protocols
- SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
- DNS A/SRV/NAPTR
- RTP/RTCP/SRTP
- RTSP
- STUN
- DHCP
- CDP
- LLDP
- CDP
- 1x
- OpenVPN (Requires third-party app support)
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Deployment & Management
- Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
- Web management portal
- Supports Web
- Supports encrypted configuration files download with AES
- Supports Web upgrade
- Supports factory reset data
Physical Specification
- 2 keys (Power, volume +/-)
- 10 Pin Cable x1
- 6 Pin Cable x1
- 4 Pin Cable x1
- Wall-mount Bracket x1
- Screws Kit x1
- RJ45 interface x1
- Micro USB interface x1
- TF Slot x1
- RS-485 interface x1
- 2 embedded short circuit output interface
- 2 relays : MAX DC30V / 2A, AC125V / 0.5A
- Alarm input interface x8
- Power : DC12V/1A or PoE
- Housing material : ABS
- Installation :
– Desktop (Need to purchase stand separately)
– Wall-mounted - Working temperature : 0 ~ 45℃
- Relative humidity : 10% – 90%
- Equipment Dimension : 258x183x19mm
- Packing Dimension : 318x217x75mm
- Outer CTN Dimension : 450x393x338mm (10 pcs)
