Description

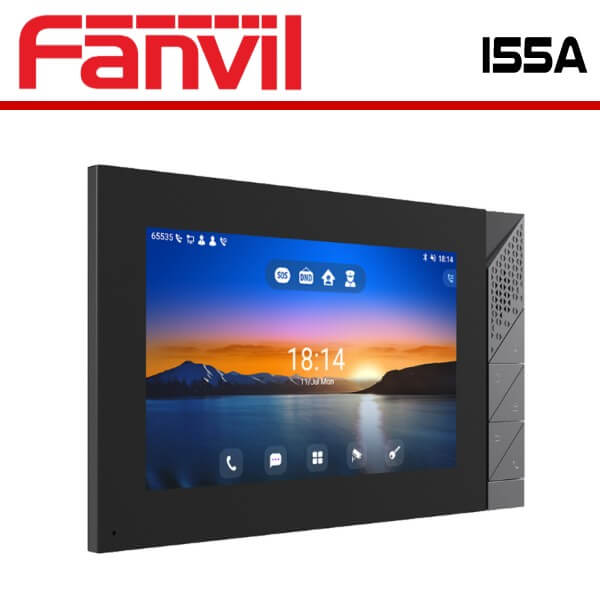

Fanvil i55A SIP Indoor Station Nigeria
The Fanvil i55a Nigeria indoor station features 7-inch colour touch screen with an intuitive UI. Based on Android 9.0 operating system, it meets industry application customization needs and secondary development. Featuring powerful functionalities like remote door opening and real-time monitoring for security devices, Fanvil i55a Nigeria serves as a management assistant for communities, villas and office buildings.

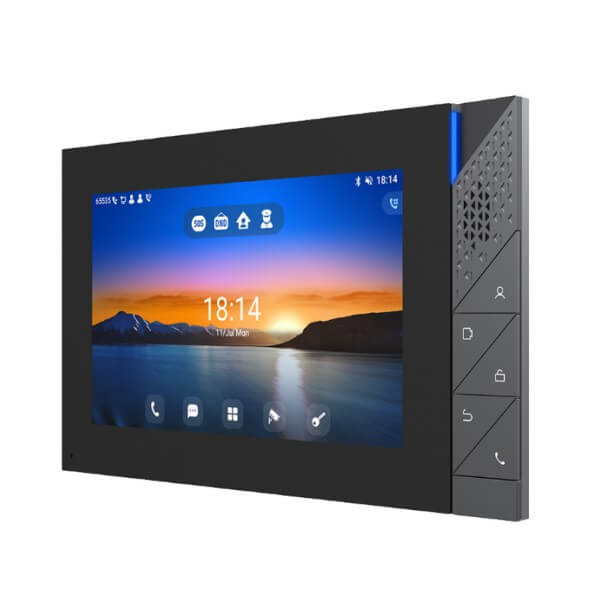

Fanvil I55a Lagos
Features
- 7-inch (1024×600) capacitive colour touch screen
- Android 9.0 operating system, meeting the customization needs of industry applications and secondary development
- Aluminium panel design and five physical buttons, reliable and durable
- Check real-time video of door phones with H.264 video codec and 1080P high resolution
- HD voice speech quality with built-in 1.5W double speakers and Acoustic Echo Canceller
- Built-in Bluetooth 5.0 and 2.4GHz/5G WiFi
- Support RS-485, 8 alarm input interfaces and 2 embedded relays
- Support PoE, wall-mounted installation”

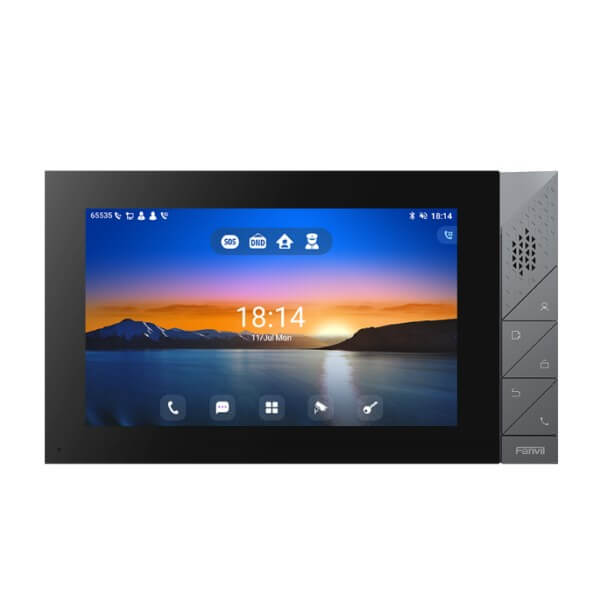

Fanvil I55a Abuja
Specifications
General
- 2 SIP Lines
- HD Voice
- PoE
- 1 x LCD : 7-inch 1024*600 Color Touch Screen
- External Power Supply(Optional)
- RAM/ROM：2G/16G
Operating System
- Android 9.0 OS with higher security and better compatibility
- Support 3rd Party Applications
- Secondary Development of API
Device Features
- Local Phonebook (1000 entries)
- Remote Phonebook
- Call logs (In/out/missed, 1000 entries)
- Blocked List/Allowed List
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Built-in Bluetooth 5.0
- Built-in Wi-Fi
- 4GHz, 802.11 b/g/n
- 5GHz, 802.11 a/n/ac
- Miracast
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive litter Buffer up to 300ms
- DTMF : In-band, Out of Band DTMF (RFC2833) / SIP INFO
Fanvil I55a Sip Indoor Station Nigeria
Video
- Hardware video decoding : H.264
- Video call resolution : QVGA / CIF / VGA / 4CIF / 720P / 1080P
Network
- 10/100 Mbps Ethernet
- IP Mode : IPv4
- IP Configuration : Static / DHCP
- VPN : OpenVPN (Requires third-party app support)
- Wi-Fi
Protocols
- SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
- DNS A/SRV/NAPTR
- RTP/RTCP/SRTP
- RTSP
- STUN
- DHCP
- OpenVPN (Requires third-party app support)
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Fanvil I55a Sip Indoor Station Abuja
Call Features
- Call out / Answer / Reject
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forwarding (Always/Busy/No Answer)
- Do-Not-Disturb
- Auto-Answering
- Hot Line
- IP call
Deployment & Management
- Action URL / Active URI
- SIP Hotspot
- Custom Ringtone
- Multicast
- Action Plan
Audio
- Wideband ADC/DAC 16KHz sampling
- Narrowband Codec : G.711a/u, G.729AB, iLBc
- Wideband Codec : G.722, opus
- Acoustic Echo Canceller (AEC)
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
- Web Management Portal
- Supports Web
- Supports encrypted configuration files download withAES
- Supports Web upgrade
- Supports factory data reset
Fanvil I55a Nigeria
Physical Specifications
- 5 keys (Manager center key/Monitor key/Unlock key/Return(Hang up key)/Answer key)
- 10 Pin Cable x1
- 2Pin Cable x1
- Wall-mount Bracket x1
- Screws Kit x1
- RJ45 interface x1
- Micro USB interface x1
- TF Slot x1
- RS-485 interface x1
- 2 embedded short circuit output interface
- 2 relays : MAX DC30V / 2A, AC125V / 0.5A
- Alarm input interface x8
- Doorbell input interface x1
- Power : DC12V/1A or PoE
- Housing material : ABS & aluminum alloy
- Installation :
- Wall-mounted
- Working temperature : -10 ~ 50℃
- Relative humidity : 10% – 90%
- Equipment Dimension : 217x124x21mm
- Packing Dimension : 257x175x76mm
- Outer CTN Dimension : 405*377*277mm (10 pcs)2 keys (Power, volume +/-)
