Fanvil I51w Nigeria
Fanvil I51w Sip Indoor Station Lagos

Fanvil i51W Nigeria

Rating

Fanvil i51W Nigeria

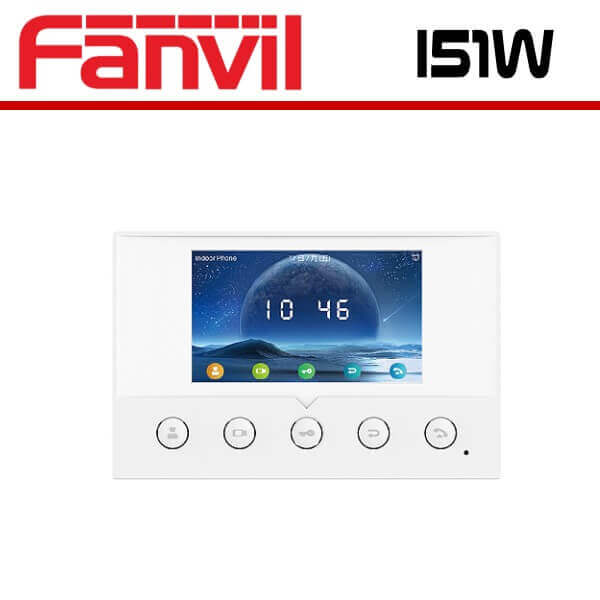

Fanvil i51W Nigeria is a 4.3-inch color screen SIP indoor station with 5 function buttons, which can be applied in different indoor scenarios.

Category:

Description

Fanvil i51W SIP Indoor Station Nigeria

Fanvil i51W Nigeria is a 4.3-inch color screen SIP indoor station with 5 function buttons, which can be applied in different indoor scenarios. Working with door phone and intercom at the entrance, Fanvil i51W can be easily achieved remote access control for residences. It can also be connected to alarms and other intelligent security devices via rich interfaces.
The Fanvil i51W Nigeria acts as an interface between you and the SIP door phone or intercom at the residence’s entrance providing a reliable and convenient way to deploy remote access control projects. The i51W can also be connected to alarms and smart security devices for added functionality. It provides a user-friendly interface that adds to the experience with its simple-to-use buttons and elegant design. HD Audio and an H.264 video codec offer a great audio and video experience with clear images and sounds.

The five buttons on the i51W serve the following functions : Call Management, Unlock, Pick Up, Surveillance, Back/Hang Up. The i51w can connect multiple devices such as a door sensor, IP phone, vibration sensor, emergency button, door phone and or a PIR sensor among others.

Features

  • 4.3-inch color screen
  • 5 physical function keys
  • Built-in 1.5W speaker with AEC
  • Support visual intercom and remote access control
  • Real-time monitor of the door phone and cameras
  • Built-in 2.4G Wi-Fi
  • 8 alarm input interfaces
  • 1 pair of RS-485 interfaces
  • Wall-mounted and desktop installation methods (with the
    external desk stand)
  • Compatible with major platforms : 3CX, Avaya, Asterisk,
  • BroadSoft, Metaswitch, Elastix and etc.

Elegant Design with 4.3-inch Color Screen

The Fanvil i51W Nigeria delivers a user-friendly experience with an elegant design and a clear 4.3-inch color screen.

HD Audio and Video Communication

Users can communicate with visitors with superb audio and clear video images via Fanvil i51W.

5 Easy-to-access Physical Buttons

Users can easily achieve different functions including surveillance, back/hang up, unlock, pick up, and call management with one press on Fanvil i51W.

Built-in 2.4G Wi-Fi

Fanvil i51W Nigeria supports built-in 2.4G Wi-Fi, and it allows users to choose wireless connection mode for different requirements.

Rich Interfaces

Fanvil i51W Nigeria is flexible and powerful with rich interfaces to connect more security devices.

Specifications

General

  • 4 SIP Lines
  • HD Voice
  • PoE
  • External Power Supply(Optional)

Display

  • 1 x LCD : 4.3-inch 480×272 Colour Screen

Audio

  • Wideband ADC/DAC 16KHz sampling
  • Narrowband codec : G.711A/U, G.729AB, iLBC
  • Wideband codec : G.722, Opus
  • Full-duplex hands-free speakerphone with AEC
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
  • VQM voice quality monitoring

Video

  • Hardware video decoding : H.264
  • Video call resolution : QVGA / CIF / VGA / 4CIF / 720P / 1080P

Network

  • 10/100 Mbps Ethernet
  • IP Mode :IPv4/IPv6/IPv4&IPv6
  • IP Configuration : Static / DHCP / PPPoE
  • VPN : L2TP / OpenVPN
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)
  • WiFi

Protocols

  • SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • PPPoE
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Deployment & Management

  • Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
  • Web management portal
  • Web-based packet dump
  • Configuration export / import
  • Firmware upgrade
  • Syslog

Physical Specification

  • 5 Function keys (Management Center, Monitor, Unlock, Return/Hang up, Answer)
  • 10 Pin Cable x1
  • 4 Pin Cable x1
  • 2 Pin Cable x1

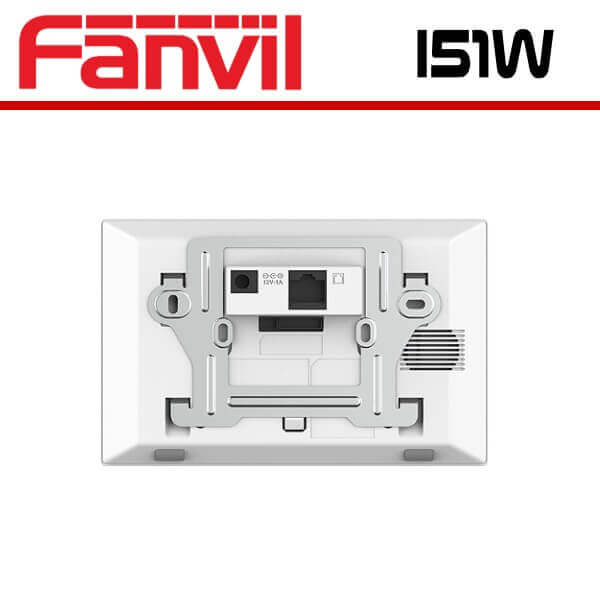

  • Wall-mount Bracket x1
  • Screws Kit x1
  • RJ45 Interface x1
  • RS485 Interface x1
  • Alarm Input Interface x8
  • DC Power Input : 12V/1A
  • Power Consumption (PoE) : 1.82~5.93 W
  • Power Consumption (Adapter) : 1.54~4.78 W
  • Working Temperature : 0~45℃
  • Working Humidity : 10~90%
  • Colour : White
  • Installation :
    – Desktop (Need to purchase stand separately)
    – Wall-mounted
  • Device Dimensions : 163x104x26 mm
  • Gift Box Dimensions : 179x115x40 mm
  • Outer CTN Dimensions : (20 PCS) 380x225x250 mm
