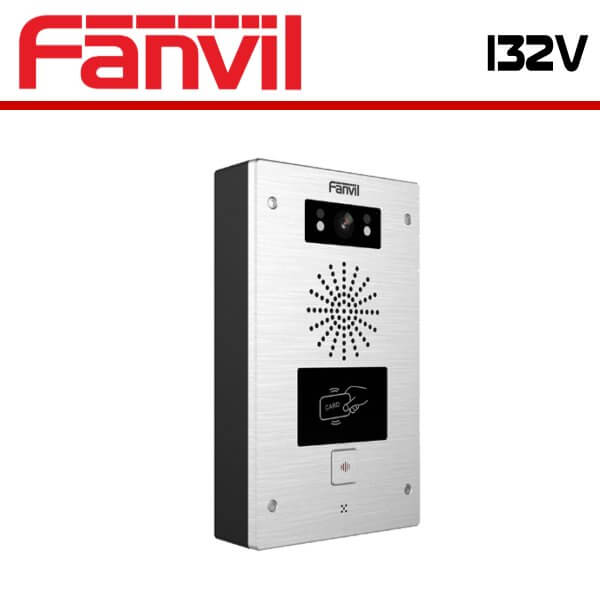

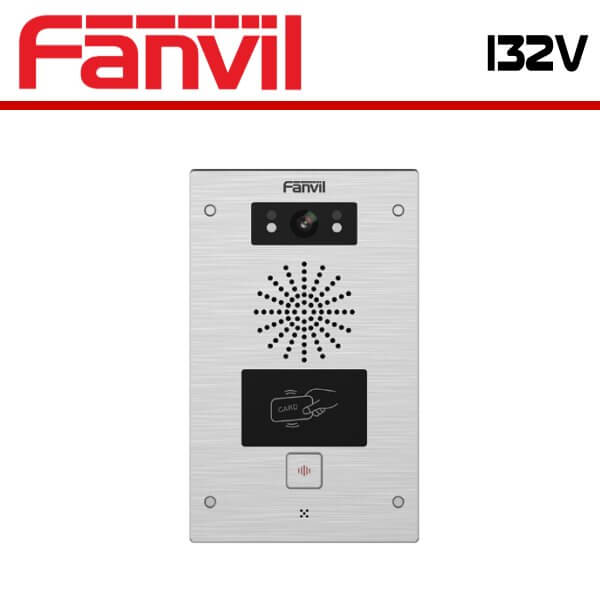

Fanvil i32V SIP Video Door Phone Nigeria

Fanvil i32V Nigeria is a network-connected intercom and door entry solution with a built-in HD video camera, infrared LEDs, and RFID reader. Designed for both indoor or outdoor installation, the Fanvil i32V SIP Video Door Phone is a full-duplex intercom with wideband audio support and acoustic echo cancellation to clarify the sound and increase comprehension. A built – in 3W speaker projects sound clearly and loudly while an integrated video camera takes dual-stream video with the primary stream being 720p HD resolution for excellent detail. The intercom has built-in infrared LEDs for video at night. The built-in RFID reader enables secure, contactless entry using RFID cards or keyfobs.

Fanvil i32V Nigeria supports both 125 kHz and 13.56 MHz RFID standards. It also supports HD video and 2x video streams. Equipped with with HD cameras with infrared night vision, visitors can be identified clearly even at night. Moreover, Fanvil i32V Nigeria supports two video streams in which the main code stream works for high-quality video on monitoring and the sub-code stream works for smooth SIP video call. When connecting with the VMS video management system via ONVIF protocol, Fanvil i32V Video Intercom enables video preview and video recording, which can be widely used for round-the-clock video surveillance.

Features

Built-in HD camera with infrared night vision, adopt H.264 codec
Access control (by call, RFID/IC card, and indoor switch)
All-in-one (Access control, Intercom, and Broadcasting)
HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller (AEC)
IP65 waterproof and dustproof
IK10 anti-collision with robust die-cast aluminum frame
-40°C to 70°C wide range temperature adaptability
Support online management and upgrade
Compatible with major platforms : Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, etc.

HD Video & Two Video Streams

A user can simply press the “Call” button to make a call with full – duplex video. The Fanvil i32V Nigeria SIP Video Intercom provides you the infrared night vision using its built-in 720P HD camera which captures crystal clear images. It also supports two video streams in which the main code stream works for high-quality video on monitoring and the sub-code stream for smooth SIP video call.

HD Voice Quality

Built to support the advanced DSP noise reduction algorithms and systematic procedures of omnidirectional sound pickup, the Fanvil i32V Nigeria SIP Video Intercom Nigeria delivers crystal clear conversations. It can effectively minimize background noises which may distract the audibility and fluency of phone calls.

Different ways to unlock the door

The Fanvil i32V Nigeria SIP Video Door Phone allows user to simply to open the door with RFID/IC cards, remote DTMF and indoor switch.

24H Video Surveillance

Connected with VMS (video management system) via ONVIF, the Fanvil i32V SIP Video Intercom can be used for 24H video monitoring. This enables the user to keep an eye on their office or premise even when they are miles away.

Multi-Protection Design

Fanvil i32V Nigeria is waterproof and dustproof grade IP65 designed, it is also anti-collision standard IK10 and the wide temperature range from -40℃ to 70℃, the Fanvil i32V SIP Video Intercom is built to meet special demands and requirements of various industries. It can therefore withstand harsh weather conditions whenever it is used in outdoor settings.

Alarm Linkage

The Fanvil i32V Nigeria Video Intercom can trigger the record of camera video or the alarm indicator using an integrated short output port.

Access Control

Fanvil i32V Nigeria Intercom enables the user to open the door remotely from the comfort of their seat regardless of their distance from the unit, by connecting to the electric lock with the short-circuit input port.

Record Output

The Fanvil i32V Video Intercom can connect to the audio input port of the camera or digital record device
using a record output port to provide 24h Monitoring services.

External Active Speaker

Fanvil i32V SIP Video Intercom can connect to speaker by the audio output port to play voice messages or music as desired by the user.

Multi – Platform Compatibility

The Fanvil 32V SIP Video Intercom is configured to work perfectly with different various professional office platforms including Huawei, BroadSoft, Asterisk, NEC, ZTE, Elastix, 3CX, Metaswitch, Avaya, and many others.

Easy Online Configuration and Management

An easy batch deployment incorporated into the Fanvil Device Management System enables a user to simply configure and manage the Fanvil i32V SIP Video Intercom without wasting much time.

2 SIP Lines

The Fanvil i32V SIP Video Intercom supports 2 SIP accounts, therefore boosting efficiency and enhancing communication in the office. This generally improves the productivity of employees.

Supports Power over Ethernet (PoE)

The Fanvil i32V Nigeria SIP Video Intercom is a highly economical device which is built to minimize high power consumption using Power over Ethernet. It is equipped with an adaptive 10/100mbps Gigabit Ethernet port which connects to a power source.

SIP Compliance

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use.

Wall – Mountable, Simple & Space – Saving

The Fanvil i32V Nigeria SIP Video Intercom is a wall-mountable device which combines the advantages of a neat, compact appearance with the most commonly used functions of a communication intercom. It is a good choice for hospitals, hotels and general business functions

Specifications

Generic

2 SIP Lines
Full-duplex hands-free
Intelligent DSS Keys (Speed Dial/intercom etc)
Auto answer
Intercom function
Industrial Standard Certifications : IP65&IK10, CE/FCC

Access Control Function :

Unlock door method : DTMF, RFID/IC card, indoor switch, WEB page
Support 2000 Remote access list
Support 2000 RFID/IC cards
Support 200,000 door open records
Support electric lock internal or external power supply options
Dynamic multicast function
Support ONVIF
Support customized DSS keys
Network Time Synchronization
Action URL / Active URI

Audio :

Narrowband Codec : G.711a/u, G.723.1, G.726-32K, G.729AB
Wideband Codec : G.722
Full-duplex Acoustic Echo Canceller (AEC) ̢ Hands-free Mode, 96ms tail-length
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
Packet Loss Concealment (PLC)
Dynamic Adaptive litter Buffer up to 300ms
DTMF : In-band, Out of Band DTMF (RFC2833) / SIP INFO

Video :

Sensor : 1/2.7” color CMOS
2 Megapixels
Video Code : H.264
Resolution :
– Main stream 1280×720@25fps
– Sub-stream 704×576(D1)@25fps
Viewing angle : 112° (H), 84° (V)
Minimum illumination : 0.1Lux, support for infrared illumination

Networking :

10/100 Mbps
IP Configuration : Static / DHCP / PPPoE
Network access authority authentication : 802.1x
VPN : L2TP / OpenVPN
VLAN
LLDP

Protocols :

SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
LLDP
PPPoE
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Deployment & Maintenance :

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/TR-069/SIPPNP
Web Management Portal
Web-based Packet Dump
Configuration Import/Export
Firmware Upgrade
Syslog

Physical Specifications :

1 DSS button (speed dial button)
1 RJ45 port
1 Wiegand port
1 audio output interface
1 recording output interface
2 embedded short circuit input interface
2 relays : MAX DC30V / 2A, AC125V / 0.5A
Active switching output : 12V / 500mA DC(only 1 relay support)
2 door magnetic detection interface
1 tamper alarm switch
RFID reader : ID (EM4100,125KHz) & IC(MIFARE ONE,13.56MHz)
Power : DC12V/1A or PoE
Housing material : aluminum alloy shell
Protection level :IP65 and IK10
Installation : Wall-mounting
Working temperature : -40 ~ 70 °C
Storage temperature : -40 ~ 70 °C
Relative humidity : 10% – 90%
Equipment Dimension : 195x120x34mm
Packing Dimension : 260x165x62mm
Outer CTN Dimension : 348x328x280mm(10 PCS)
Equipment weight : 1015g
