Description

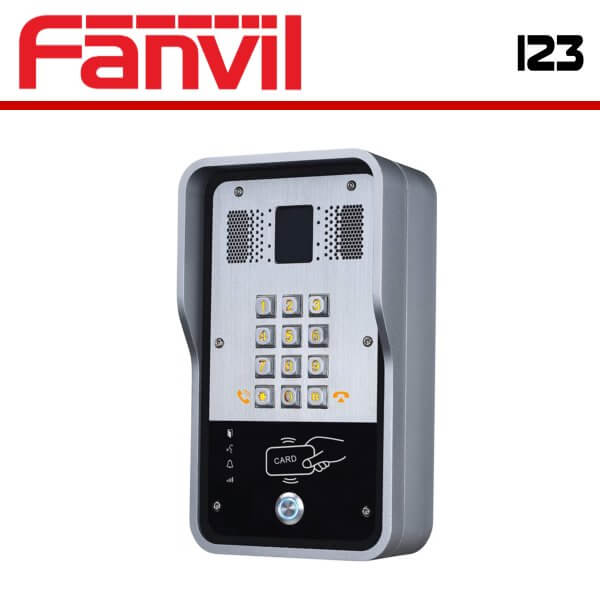

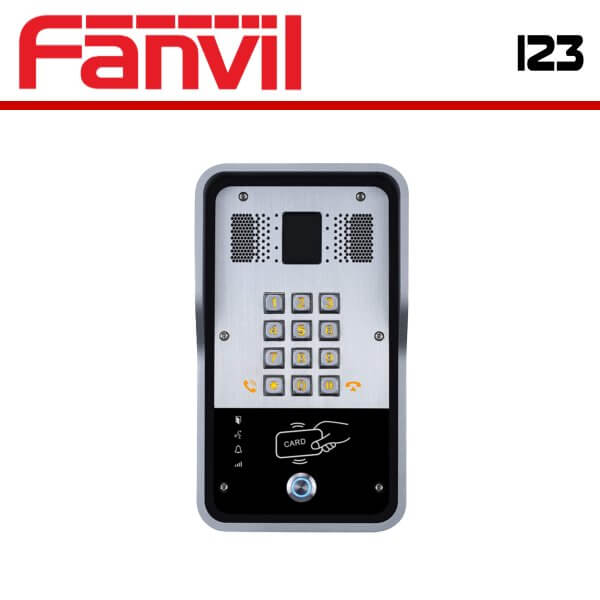

Fanvil i23 SIP Door Phone Nigeria
Fanvil i23 Nigeria IP Door Phone is an all-weather intercom with network connectivity which uses SIP and a built-in 125 kHz RFID card reader. Fanvil i23S has a rugged aluminum casing that makes it IP65 and IK10 rated against the elements and tampering. The Fanvil i23 Nigeria IP Door Phone supports the open SIP communications protocol, making it compatible with many VoIP platforms, including 3CX, BroadSoft, Asterisk, Xorcom, and Huawei. Being a VoIP intercom, the Fanvil i23 Nigeria IP Door Phone is simpler to manage, scalable, with less burden on your infrastructure, and includes PoE power. Fanvil i23S IP Door Phone gives you full-duplex wideband audio with background noise reduction to clarify pages.
Features
- Compatible with standard SIP(RFC3261) protocol and main IP-PBX/IMS platform
- Enclosure designed on International Protection (IP) markings to protect against intrusion – accidental or intentional – waterproofed to IP65 and anti-collision up to IK10
- Adapts to operate under various environmental conditions and temperatures (supports temperatures ranging from -40 to 70 Celsius.)
- All-in-One(Access Control, Intercom, and Broadcasting)
- Status indication icon
- Access Control(by call, by code, IC/RFID, Indoor Switch)
- Built-in 3W speaker and AEC, support high-quality hands-free communication.
- System online maintenance and management
HD Voice Quality
Fanvil i23 Nigeria is built to support the advanced DSP noise reduction algorithms and systematic procedures of omnidirectional sound pickup, the Fanvil i23S SIP Door Phone Nigeria delivers crystal clear conversations. It can effectively minimize background noises which may distract the audibility and fluency of phone calls.
Water & Dust – Resistant
The Fanvil i23 SIP audio door Phone Nigeria is made of the high strength aluminum alloy with Cast aluminum bottom and has a fixed hexagon screw to keep the surface shell from being removed. This structure can successfully prevent the Fanvil i23S IP Door Phone from moisture, dust and minimizes any man‐made damage. Its power resistant level is up to Ik10 standard, while its water and dust‐proof level is up to IP65.
Multi – Platform Compatibility
The Fanvil i23 Nigeria SIP Door Phone is configured to work perfectly with different various professional office platforms including Huawei, BroadSoft, Asterisk, NEC, ZTE, Elastix, 3CX, Metaswitch, Avaya, and many others.
Easy Configuration and Management
An easy batch deployment incorporated into the Fanvil Device Management System enables a user to simply configure and manage the Fanvil i23 Nigeria SIP Door Phone without wasting much time.
2 SIP Lines
The Fanvil i23S SIP Door Phone supports 2 SIP accounts, therefore boosting efficiency and enhancing communication in the office. This generally improves the productivity of employees.
Supports Power over Ethernet (PoE)
The Fanvil i23 Nigeria SIP Door Phone is a highly economical device which is built to minimize high power consumption using Power over Ethernet. It is equipped with an adaptive 10/100mbps Gigabit Ethernet port which connects to a power source. For users who do not have PoE equipment, the traditional power adapter should be used.
SIP Compliance
The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use.
Wall – Mountable, Simple & Space – Saving
The Fanvil i23 Nigeria SIP Door Phone is a wall-mountable device which combines the advantages of a neat, compact appearance with the most commonly used functions of a communication intercom. It is a good choice for hospitals, hotels and general business functions
Specifications
Access control function
- Two SIP lines, support SIP 2.0 (RFC3261) and related RFC
- PoE Enabled
- Full-duplex hands-free (HF)
- Default Auto Answer
- Open the door operation : DTMF, password, RFID card, switch
- Support 200,000 door open records
- Support 1000 remote access list
- Support 1000 RFID cards
- Support electric lock internal or external power supply options
- Support customized DSS keys
- Network Time Synchronization
- Action URL / Active URI remote control
Audio
- Narrowband speech codec : G.711a / u, G.723.1, G.726-32K, G.729AB
- Broadband speech codec : G.722
- Full Duplex Echo Cancellation (AEC) – 96ms tail-length
- DTMF : In-band, out-of-band DTMF (RFC2833) / SIP Info
Networking/ Protocols
- Support PoE (802.3af)
- Primary and secondary DNS servers are supported
- Support RTSP
- Support SNTP client
- VLAN
- Support VPN L2TP / openVPN
- Support SRTP
- Support HTTP / HTTPS web pages
- Support QoS : 802.1p / q, DSCP
- Support MD5 authentication
- Support Web Filter
- DHCP / static / PPPoE
- Support STUN
Deployment & Maintenance
- Auto-Provisioning via FTP / TFTP / HTTP / HTTPS / DHCP / TR069 / SIP PNP
- Web Management Portal
- Web-based Packet Dump
- Configuration Backup / Restore
- Entry Log Export
- Access Table Export / Import
- Firmware Upgrade
- Syslog(include door access logs)
Physical Specifications
- 1 DSS button (speed dial button)
- 5 indicator lights (including hot-key backlight)
- Numeric keypad
- 1 indoor switch
- 1 relay : MAX DC30V / 1A, AC125V / 0.5A
- Active switching output : 12V / 650mA DC
- RFID reader : ID (EM4100) standard type, IC(MIFARE ONE)
- Microphone : -38dB
- Speaker : 4Ω / 3W
- WAN port : RJ-45, 10 / 100M adaptive
- Power supply : 12V ± 15% / 1A DC or POE
- PoE : 802.3af (Class 3 – 6.49 to 12.95W)
- Network cable : CAT5 or better
- Shell Material : Aluminum Cover and Cast-Aluminum back case
- Installation method : Wall-mounting or Flush-mounting
- Storage Temperature :-40~70℃
- Working Humidity : 10~90%
- Protection level : IP65 and IK10
- Overall Dimension : 223 x 130 x 74mm (W x H x L)
- Gift Box Dimensions : 310 x 175 x 115mm
- Outer CTN Dimensions : 370 x 370 x 330mm(6 PCS)
- Package Weight :1800g
