Fanvil i20S Nigeria

The Fanvil i20S Nigeria RFID SIP Intercom is an all-in-one door phone that supports remote DTMF, local passwords, and RFID cards

Category:

Description

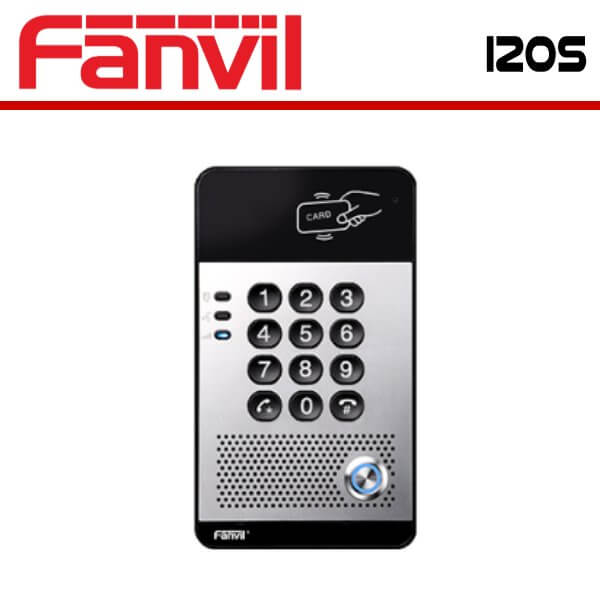

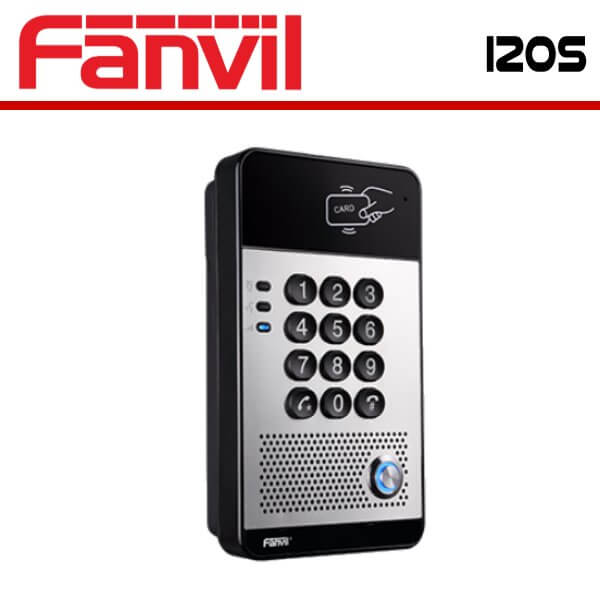

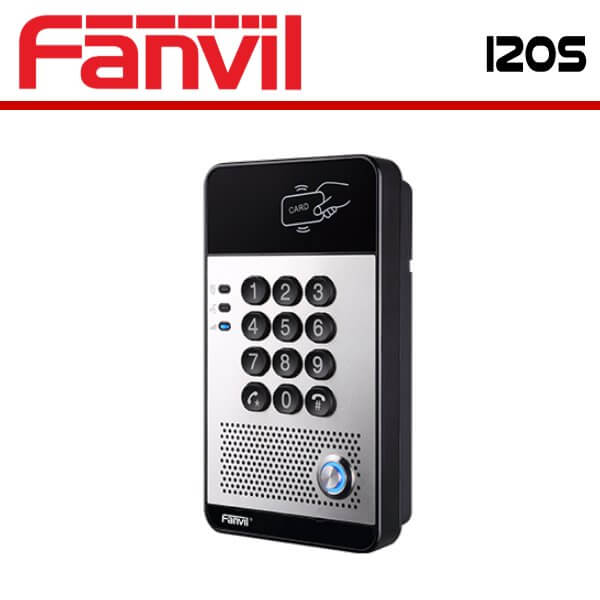

Fanvil i20S SIP Door Phone Nigeria

The Fanvil i20S Nigeria RFID SIP Intercom is an all-in-one door phone that supports remote DTMF, local passwords, and RFID cards. It allows you to gain access to your building in a way that works best for you. The Fanvil i20S Nigeria SIP door phone can be paired with an IP video camera device to make it a video door entry solution. It features a numeric keypad design with two-way communication and a remote controller for easy door operation. The Fanvil i20S Nigeria can be used in common applications such as entry to a warehouse or an apartment building. It is a multi-functional solution that supports remote DTMF, local password and RFID cards to open the door. Enable the speed-dial with a simple press of one button. End-uses can use a VoIP phone, PC, or SIP software to talk with visitors and monitor remotely. The robust mechanical construction of the Fanvil i20S Nigeria SIP door phone offers a protective coverage rating against dust and water (IP65).

Features

HD Voice Quality

Fanvil i20S Nigeria is built to support the advanced DSP noise reduction algorithms and systematic procedures of omnidirectional sound pickup delivering crystal clear conversations. It can effectively minimize background noises which may distract the audibility and fluency of phone calls. It can also optimize the sound pickup range, thus guaranteeing its user a high quality voice which in turn leads to a general amazing communication experience. An embedded 3W speaker and AEC mechanism allows for high – quality hands-free communication.

Water & Dust – Resistant

The Fanvil i20S Nigeria SIP audio door Phone Nigeria is made of the high strength aluminum alloy with Cast aluminum bottom and has a fixed hexagon screw to keep the surface shell from being removed. This structure can successfully prevent the Fanvil i20S IP Door Phone  from moisture, dust and minimizes any man‐made damage. Its power resistant level is up to Ik10 standard, while  its water and dust‐proof level is up to IP65.

Multi – Platform Compatibility

The Fanvil i20S Nigeria SIP Door Phone is configured to work perfectly with different various professional office platforms including Huawei, BroadSoft, Asterisk, NEC, ZTE, Elastix, 3CX, Metaswitch, Avaya, and many others.

Easy Configuration and Management

An easy batch deployment incorporated into the Fanvil Device Management System  enables a user to simply configure and manage the Fanvil i20S SIP Door Phone without wasting much time.

2 SIP Lines

The Fanvil i20S SIP Door Phone supports 2 SIP accounts, therefore boosting efficiency and enhancing communication in the office. This generally improves the productivity of employees.

Supports Power over Ethernet  (PoE)

The Fanvil i20S Nigeria SIP Door Phone is a highly economical device which is built to minimize high power consumption using Power over Ethernet. It is equipped with an adaptive 10/100mbps Gigabit Ethernet port which connects to a power source. For users who do not have PoE equipment, the traditional power adapter should be used. If the device is connected to a PoE switch and power adapter at the same time, the power adapter will be used in priority and will switch to PoE power supply at power failure on the power adapter.

SIP Compliance

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Furthermore, the Fanvil i20S SIP Door Phone can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. The Fanvil i20S Door Phone is based on SIP v2 (RFC 3261 and works perfectly with most of the SIP platforms such as Asterisk,3CX,  and BroadSoft  that currently exist in the market.

Wall – Mountable, Simple & Space – Saving

The Fanvil i20S Nigeria Door Phone is a wall-mountable device which  combines the advantages of a neat, compact appearance with the most commonly used functions of a communication intercom. It is a good choice for hospitals, hotels and general business functions

Specifications

Generic :

  • 2 SIP Lines
  • PoE – Enabled
  • Full-duplex speakerphone (HF)
  • Intelligent DSS Keys (Speed Dial)
  • Wall-mount installation
  • Integrated RFID Card reader
  • Integrated indoor switchgear
  • Integrated one Relay
  • External Power Supply
  • All-in-One : Access Control, Intercom and Broadcasting
  • Access control-by call, code, RFID card
  • Industrial Standard Certifications : IP65, CE/FCC

Call Features :

  • Intercom
  • Speed Dial
  • Auto-Answering (per line)
  • Voice Message (on server)
  • Local 3-way Conference
  • Hot Line

Phone Features :

  • Open Door Log
  • Access Table (500 entries)
  • Support RFID Card issues (500 entries)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Action URL / Active URI

Audio :

  • Narrowband CODEC : G.711a/u, G.723.1, G.726-32K, G.729AB
  • Wideband CODEC : G.722
  • Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer up to 300ms
  • DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking :

  • 802.3af PoE
  • IP Configuration : Static / DHCP / PPPoE
  • Network Access Control : 802.1x
  • VPN : L2TP / PPTP / IPSec
  • VLAN : 802.1p/q
  • QoS : DSCP

Protocols :

  • SIP2.0 over UDP / TCP /TLS
  • RTP / RTCP /SRTP
  • STUN
  • DHCP
  • PPPoE
  • 802.1x Open VPN
  • SNTP
  • FTP / TFTP
  • HTTP / HTTPS
  • TR069

Deployment & Maintenance :

  • Auto-Provisioning via FTP / TFTP / HTTP / HTTPS / DHCP / TR069 / SIP PNP
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Backup / Restore
  • Entry Log Export
  • Access Table Export / Import
  • Firmware Upgrade
  • Syslog(include door access logs)

Physical Specifications :

  • 1 DSS Key
  • Numeric keypad
  • WAN : 10/100BASE-Tx, Auto-MDIX,RJ-45
  • PoE : 802.3af(Class 3 – 6.49~12.95W)
  • Passive Switch(short-circuit output) : NC/NO Contacts, MAX 30V/1A AC/DC
  • Active Switch output : 12V/700mA DC
  • RFID/IC Card : EM4100 (125KHz)—-Standard MIFARE ONE (13.56MHz) —-Custom-made
  • Main Chipset : Broadcom
  • Speaker : 4O/3W
  • Cables : CAT5 or better
  • Power Supply : 12V/1A DC or PoE
  • Shell material : Metal panel, ABS sump
  • Protection level : IP65
  • Working Temperature : -10~60?
  • Storage Temperature : -40~70?
  • Working Humidity : 10~90%
  • Device Dimension : 160 x 93 x 35mm
  • Package size : 178 x 104 x 55mm
  • Device Weight : 300g
  • Gross weight : 420g
