Description

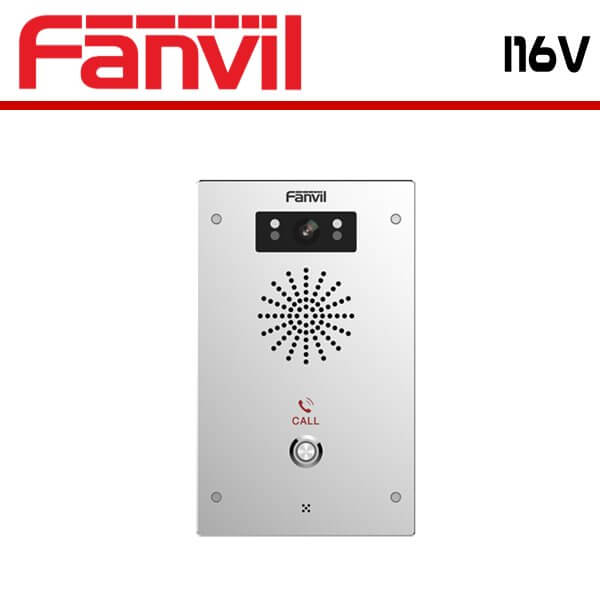

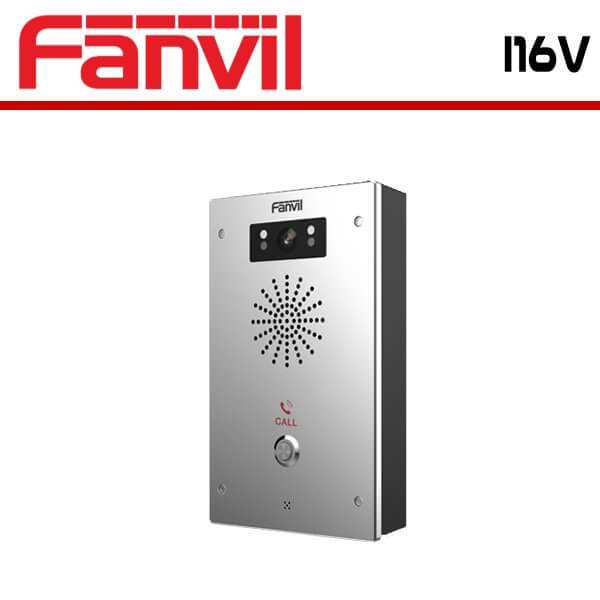

Fanvil i16V SIP Video Intercom Nigeria
The Fanvil i16V Nigeria offers HD SIP Video capabilities, HD Audio, and broadcasting functionalities. The i16V has a 2-way speaker with HD audio and noise reduction. It can be used as a 24-hour video surveillance device when configured. The call button can be set up to make a call with full duplex video so that the person in the inside can see clearly who is on the other end. At night the i16V has an infrared night vision camera.
Fanvil i16V Nigeria is a rugged designed, rated IP65 against dust and water ingress and IK10 against impacts. It has an extended operating temperature range : -40°F to 158°F. Power the intercom using PoE. The Fanvil i16V Nigeria has a built-in 3W speaker with high HD audio quality and background noise reduction. Users can press the “Call” button to make calls with full-duplex video. A built-in 720P HD camera offers infrared night vision. The i16V can be used for 24H video monitoring when connected with a VMS (video management system) via ONVIF.
Features
- 2 SIP
- Full Duplex hands free
- Intelligent DSS Keys (Speed dial / Intercom)
- Built-in HD camera with infrared night vision, adopt H.264 codec
- HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller
- IP65 waterproof and dustproof
- IK10 anti-collision with robust die-cast aluminum frame
- Anti-tamper-alarming as long as the cover is apart from the housing, and reporting to the control center at the same time
- -40ºC to 70ºC wide range temperature adaptability
- Built-in 2 short-in detect port and 2 short-out control port
- 2 Megapixels
- 1 x RJ45
- 2 relays : MAX DC30V/2A, AC125V/0.5A
HD Video
A user can simply press the “Call” button to make a call with full – duplex video. The Fanvil i16V Nigeria SIP Video Intercom provides you the infrared night vision using its built-in 720P HD camera which captures crystal clear images.
HD Voice Quality
Built to support the advanced DSP noise reduction algorithms and systematic procedures of omnidirectional sound pickup, the Fanvil i16V SIP Video Intercom Nigeria delivers crystal clear conversations. It can effectively minimize background noises which may distract the audibility and fluency of phone calls.
24H Video Surveillance
Connected with VMS (video management system) via ONVIF, the Fanvil i16V Nigeria SIP Video Intercom can be used for 24H video monitoring. This enables the user to keep an eye on their office or premise even when they are miles away.
Multi-Protection Design
With a waterproof and dustproof grade IP65 design, the anti-collision standard IK10 and the wide temperature range from -40℃ to 70℃, the Fanvil i16V Nigeria SIP Video Intercom is built to meet special demands and requirements of various industries. It can therefore withstand harsh weather conditions whenever it is used in outdoor settings.
Alarm Linkage
The Fanvil i16V Nigeria Video Intercom can trigger the record of camera video or the alarm indicator using an integrated short output port.
Access Control
Fanvil i16V Video Intercom enables the user to open the door remotely from the comfort of their seat regardless of their distance from the unit, by connecting to the electric lock with the short-circuit input port.
Record Output
The Fanvil i16V Video Intercom can connect to the audio input port of the camera or digital record device
using a record output port to provide 24h Monitoring services.
External Active Speaker
Fanvil i16V SIP Video Intercom can connect to speaker by the audio output port to play voice messages or music as desired by the user.
Multi – Platform Compatibility
The Fanvil i16V Nigeria SIP Video Intercom is configured to work perfectly with different various professional office platforms including Huawei, BroadSoft, Asterisk, NEC, ZTE, Elastix, 3CX, Metaswitch, Avaya, and many others.
Easy Online Configuration and Management
An easy batch deployment incorporated into the Fanvil Device Management System enables a user to simply configure and manage the Fanvil i16V Nigeria SIP Video Intercom without wasting much time.
2 SIP Lines
The Fanvil i6V SIP Video Intercom supports 2 SIP accounts, therefore boosting efficiency and enhancing communication in the office. This generally improves the productivity of employees.
Supports Power over Ethernet (PoE)
The Fanvil i16V SIP Video Intercom is a highly economical device which is built to minimize high power consumption using Power over Ethernet. It is equipped with an adaptive 10/100mbps Gigabit Ethernet port which connects to a power source. For users who do not have PoE equipment, the traditional power adapter should be used. If the device is connected to a PoE switch and power adapter at the same time, the power adapter will be used in priority and will switch to PoE power supply at power failure on the power adapter.
SIP Compliance
The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Furthermore, the Fanvil i16V Nigeria SIP Video Intercom can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. The Fanvil i16V Video Intercom is based on SIP v2 (RFC 3261) and works perfectly with most of the SIP platforms such as Asterisk,3CX, and BroadSoft that currently exist in the market.
Wall – Mountable, Simple & Space – Saving
The Fanvil i16V Nigeria SIP Video Intercom is a wall-mountable device which combines the advantages of a neat, compact appearance with the most commonly used functions of a communication intercom. It is a good choice for hospitals, hotels and general business functions
Specifications
General
- 2 SIP lines
- Full-duplex hands free(HF)
- Intelligent DSS Keys (Speed Dial/intercom etc)
- Auto answer
- Intercom function
- Industrial Standard Certifications : IP65&IK10, CE/FCC
Intercom Function :
- Dynamic multicast function
- Support ONVIF
- Support customized DSS Keys
- Network Time Synchronization
- Action URL / Active URI
Video :
- Sensor : 1/2.7” color CMOS2 Megapixels
- Video codec : H.264
- Resolution : main stream 1280×720@25fps
- Sub – stream 704×576(D1)@25fps
- Viewing angle : 112° (H), 84° (V)
- Minimum illumination : 0.1Lux, support for infrared illumination
Audio :
- Wideband ADC/DAC 16KHz Sampling
- Narrowband Codec : G.711a/u, G.723.1, G.726-32K, G.729AB
- Wideband Codec : G.722
- Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background
- Noise Estimation (BNE)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive litter Buffer up to 300ms
- DTMF : In-band, Out of Band DTMF (RFC2833) / SIP INFO
Deployment and Maintenance :
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069
- Web Management Portal
- Web-based Packet Dump
- Configuration Import and Export
- Firmware Upgrade
- Syslog
Networking :
- 10/100Mbps
- IP Configuration : Static / DHCP / PPPoE
- Network access authority authentication : 802.1x
- VPN : L2TP / OpenVPN
- VLAN
- QoS
Protocols :
- 10/Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Physical Specifications :
- 1 DSS button (speed dial button)
- 1 RJ45 port
- 1 audio output interface
- 1 recording output interface
- 2 short circuit input interface
- 2 short circuit output interface
- G-sensor for tamper alarm
- Power : DC12V/1A or PoE
- Housing material : aluminum alloy shell
- Protection level :IP65 and IK10
- Installation : Wall-mounting
- Working temperature : -40 ~ 70°C
- Storage temperature : -40 ~ 70°C
- Relative humidity : 10% – 90%
- Equipment size : 195x120x34mm
- Packing size : 260x165x62mm
- Equipment weight : 1015g
