Fanvil i16SV Nigeria

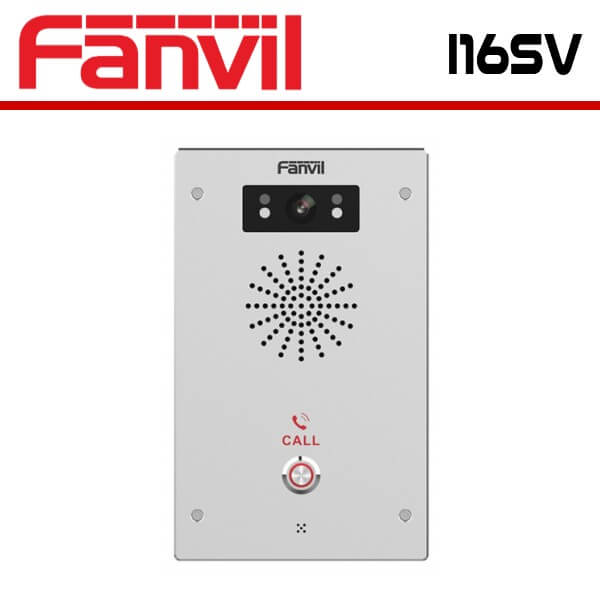

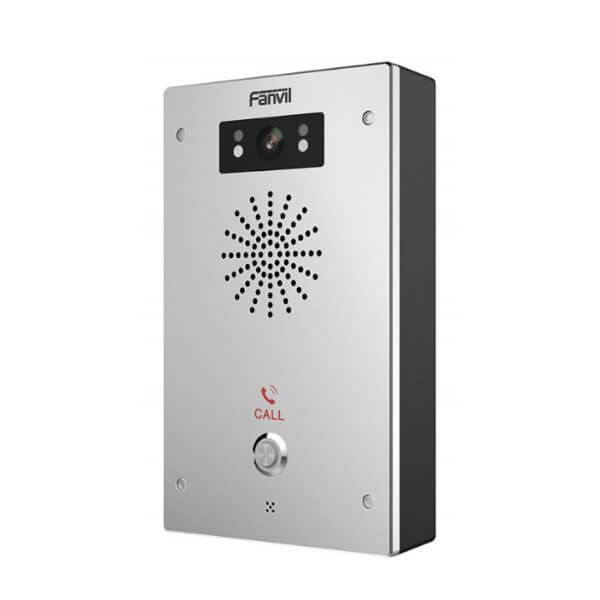

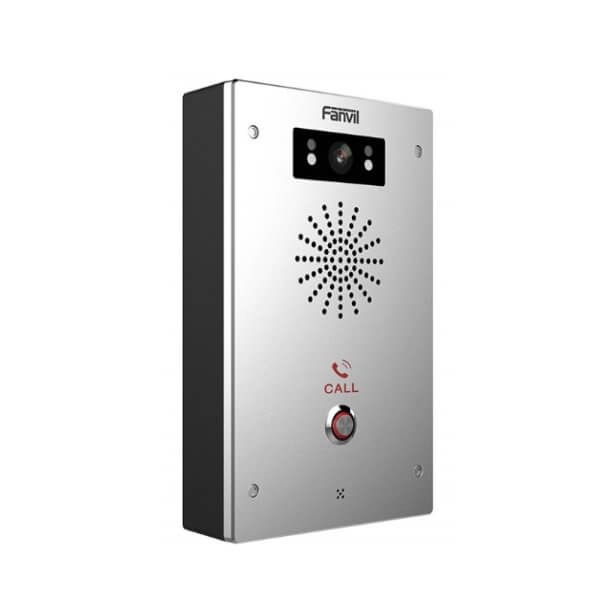

The Fanvil i16SV Nigeria SIP Intercom is a top-tier choice designed for outdoor use, featuring high reliability, HD audio, and video capabilities.

Description

Fanvil i16SV SIP Intercom Nigeria

The Fanvil i16SV Nigeria SIP Intercom is a top-tier choice designed for outdoor use, featuring high reliability, HD audio, and video capabilities. With an IP65/IK10 protection grade, it ensures durability against harsh weather and physical impact. This innovative intercom integrates security, audio/video communication, and broadcasting in a compact solution, ideal for residential, commercial, and industrial settings. The Fanvil i16SV Nigeria sets a new standard for effective communication in diverse outdoor environments, offering advanced design and robust features for enhanced security and seamless communication workflows.

Highlights

  • Built-in HD camera with infrared night vision, adopt H.264 codec (only i16SV)
  • IP65 waterproof and dustproof.
  • IK10 anti-collision with robust die-cast aluminum frame
  • Anti-tamper- alarming as long as the cover is apart from the housing, and reporting to the control center at the same time
  • HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller
  • Audio line out port, expandable external active speaker.
  • Built-in 2 short-in detect port and 2 short-out control port
  • Support built-in TF card slot for data storage or audio offline broadcasting.
  • Compatible with major platforms : Asterisk, Broadsoft, 3CX, Metaswitch,Elastix, Avaya etc.

Features

Generic

  • 2 SIP lines
  • Speed dial
  • Linkage with IP camera to realize video intercom
  • Oral announcement of the IP address(in English)
  • MP3 broadcasting
  • Support programmable DSS key
  • Support mono active speaker
  • Talkback recording output
  • Switch signal input and output
  • Support TF card
  • PoE enabled

Device Functions

  • Auto-answering
  • Programmable DSS keys
  • Through button or web page volume adjustment
  • Network time synchronization
  • Time Plan (task management)
  • Incoming call multicast
  • Dynamic multicast function
  • HTTP API
  • Action URL / Active URI

Call Functions

  • Call out / answer / reject
  • Call waiting
  • Intercom, Multicast
  • Speed dial
  • Anonymous call (Hide caller ID)

Audio

  • Narrowband codec : G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K
  • Wideband codec : G.722, Opus
  • Full-duplex hands-free speakerphone with AEC
  • DTMF : In-band, Out-of-Band (RFC2833/ SIP INFO)

Video (Only i16SV)

  • Sensor : 1/2.8” color CMOS
  • Pixels : 2 Mega
  • Video coding : H.264
  • Resolution : 720P/1080P
  • Minimum illumination : 0.1Lux, support for infrared illumination
  • Viewing angle :
    • Diagonal : 126°
    • Horizontal : 98°
    • Vertical : 65°

Network

  • Physical : 10/100 Mbps Ethernet
  • IP mode : IPv4/IPv6/IPv4&IPv6
  • IP configuration : Static IP / DHCP / PPPoE
  • VPN : L2TP / OpenVPN
  • VLAN

Protocols

  • SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • PPPoE
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Physical Specifications

  • 1 DSS key (support LED)
  • RJ45 port x1 : connect the network
    • PoE enabled
  • Line out port x1 : connect the active speaker
    • Out : adjustable by volume, max up to1.2Vpp.
    • Port : terminal socket
  • Recording output port x1 : connect audio device
    • Out : mixed output of local microphone voice and call voice recording
    • Impedance : 15 Ohm
  • Port : terminal socket
  • Short circuit input and output port x2 (built-in relay)
    • Relay : MAX DC30V / 2A, AC125V / 0.5A
    • Active switching output : 12V/500mA DC(only 1 relay support)
    • Port : terminal socket
  • Tamper alarm switchx1
  • TF card slot x1 : connect TF card
  • DC port x1 : DC power input
    • DC power input : DC12V~24V/1A
    • Port : 2 Pin terminal socket
  • PoE level : Class 3
  • Protection level : IP65 and IK10
  • Housing material : aluminum alloy shell
  • Installation : wall-mounted
  • Working temperature : -30℃ ~ 60℃
  • Storage temperature : – 40℃ ~ 70℃
  • Working humidity : 10~95%
  • N.W/CTN : 9.5kg
  • G.W/CTN : 10.05kg
  • Device dimensions : 195x120x40 mm
  • Gift box dimensions : 260x165x62 mm
  • Outer CTN dimensions : 348x328x280 mm (10 PCS)
