Description

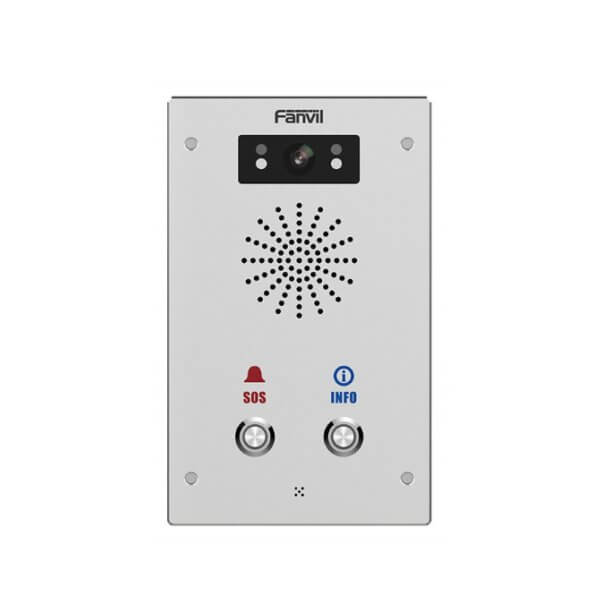

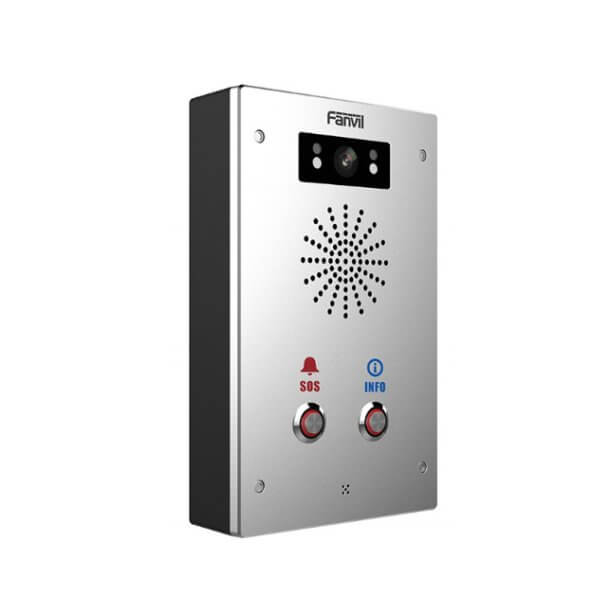

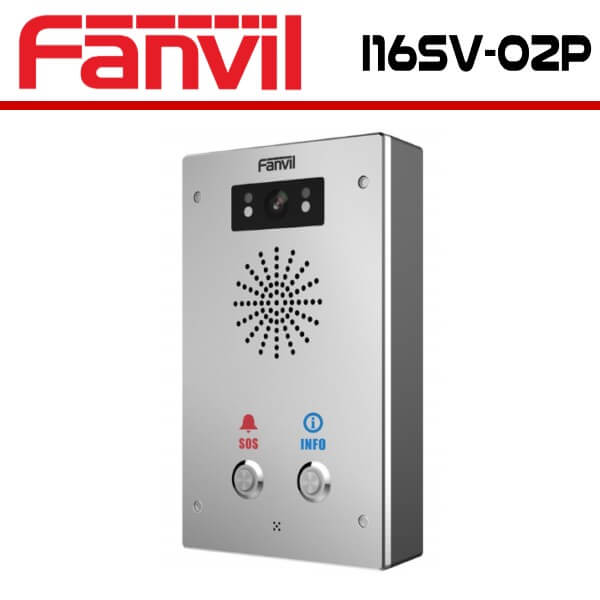

Fanvil i16SV-02P SIP Intercom Nigeria
The Fanvil i16SV-02P Nigeria SIP Intercom is a top-tier outdoor communication solution, boasting high-definition audio/video, IP65/IK10 protection, and versatile broadcasting features. Designed for durability in diverse environments, it ensures uninterrupted operation against dust, water, and impacts.
This intercom system prioritizes communication efficiency with crystal-clear audio, HD video streaming, and advanced broadcasting capabilities. It serves various settings like industrial facilities, commercial complexes, and residential communities, delivering seamless communication infrastructure.
The Fanvil i16SV-02P Nigeria SIP Intercom sets new standards for outdoor communication, blending advanced technology, reliability, and performance to meet modern user needs comprehensively.
Highlights
- Built-in HD camera with infrared night vision, adopt H.264 codec (only i16SV-02P)
- IP65 waterproof and dustproof.
- IK10 anti-collision with robust die-cast aluminum frame
- Anti-tamper- alarming as long as the cover is apart from the housing, and reporting to the control center at the same time
- HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller
- Audio line out port, expandable external active speaker.
- Built-in 2 short-in detect port and 2 short-out control port
- Support built-in TF card slot for data storage or audio offline broadcasting.
Features
Generic
- 2 SIP lines
- Speed dial
- Linkage with IP camera to realize video intercom
- Oral announcement of the IP address(in English)
- MP3 broadcasting
- Support programmable DSS key
- Support mono active speaker
- Talkback recording output
- Switch signal input and output
- Support TF card
- PoE enabled
Device Functions
- Auto-answering
- Programmable DSS keys
- Through button or web page volume adjustment
- Network time synchronization
- Time Plan (task management)
- Incoming call multicast
- Dynamic multicast function
- HTTP API
- Action URL / Active URI
Call Functions
- Call out / answer / reject
- Call waiting
- Intercom, Multicast
- Speed dial
- Anonymous call (Hide caller ID)
Audio
- Narrowband codec : G.711A/U, G.729A/B, iLBC, G.723, G.726-32K
- Wideband codec : G.722, Opus
- Full-duplex hands-free speakerphone with AEC
- DTMF : In-band, Out-of-Band (RFC2833/ SIP INFO)
Video (Only i16SV-02P)
- Sensor : 1/2.8” color CMOS
- Pixels : 2 Mega
- Video coding : H.264
- Resolution : 720P/1080P
- Minimum illumination : 0.1Lux, support for infrared illumination
- Viewing angle :
- Diagonal : 126°
- Horizontal : 98°
- Vertical : 65°
Network
- Physical : 10/100 Mbps Ethernet
- IP mode : IPv4/IPv6/IPv4&IPv6
- IP configuration : Static IP / DHCP / PPPoE
- VPN : L2TP / OpenVPN
- VLAN
- LLDP
- Qos
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- PPPoE
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Physical Specifications
- 2 DSS key (support LED)
- RJ45 port x1 : connect the network
- Power over Ethernet (IEEE 802.3af), class 3
- Line out port x1 : connect the active speaker
- Out : adjustable by volume, max up to1.2Vpp.
- Port : terminal socket
- Recording output port x1 : connect audio device
- Out : mixed output of local microphone voice and call voice recording
- Impedance : 15 Ohm
- Port : terminal socket
- Short circuit input and output port x2 (built-in relay)
- Relay : MAX DC30V / 2A, AC125V / 0.5A
- Active switching output : 12V/500mA DC(only 1 relay support)
- Port : terminal socket
- Tamper alarm switchx1
- TF card slot x1 : connect TF card
- DC port x1 : DC power input
- DC power input : DC12V~24V/1A
- Port : 2 Pin terminal socket
- Protection level : IP65 and IK10
- Housing material : aluminum alloy shell
- Installation : wall-mounted
- Working temperature : -30℃ ~ 60℃
- Storage temperature : – 40℃ ~ 70℃
- Working humidity : 10~95%
- Net weight/box : 9.5 kg
- Gross weight/box : 10.05 kg
- Device dimensions : 195x120x40 mm
- Gift box dimensions : 260x165x62 mm
- Outer CTN dimensions : 348x328x280 mm (10 PCS)
