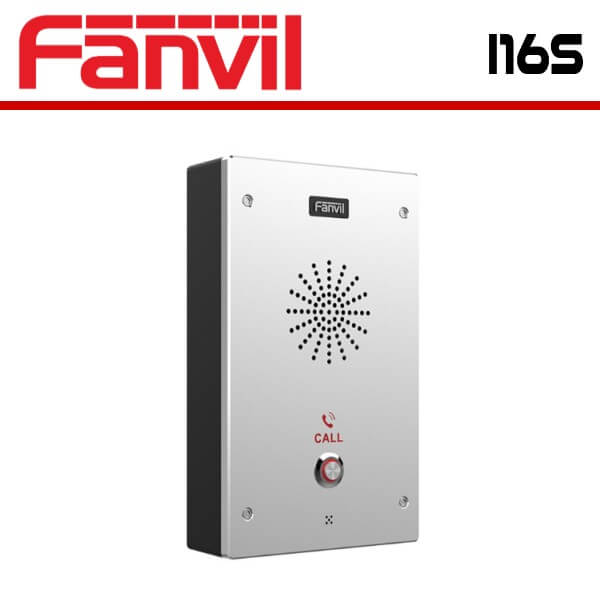

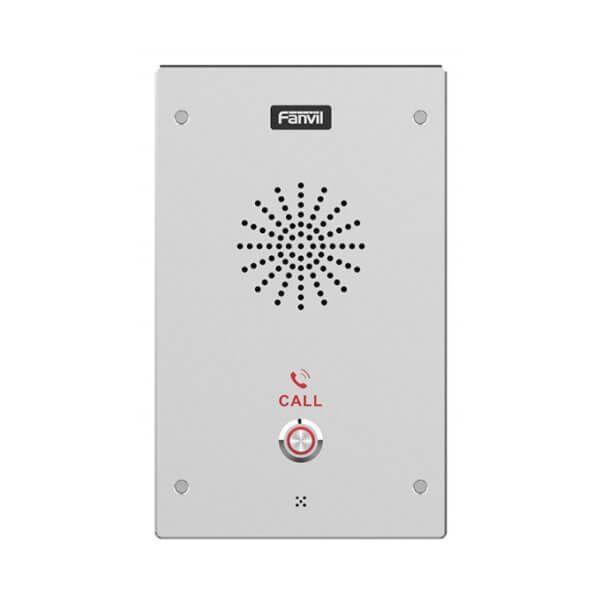

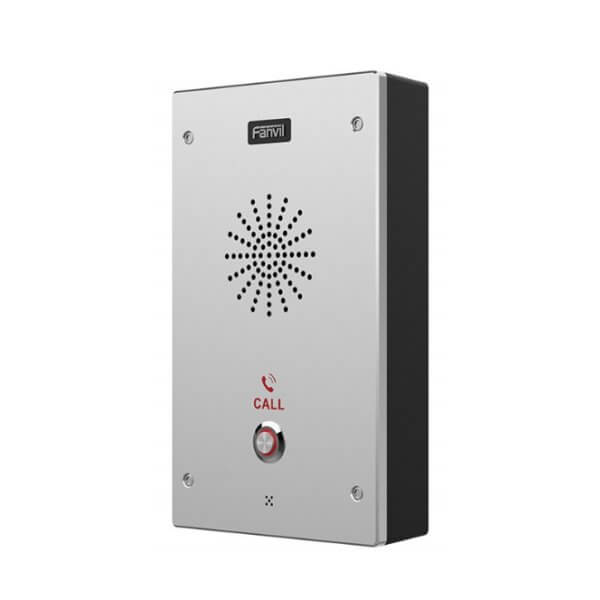

Fanvil i16S SIP Intercom Nigeria

The Fanvil i16S Nigeria SIP Intercom is an advanced solution designed for outdoor environments, prioritizing reliability and performance. With high-definition audio and video capabilities, it ensures clear communication in challenging conditions. Its IP65/IK10 protection rating ensures resilience against the elements, maintaining functionality over time.

Beyond its robust design, the Fanvil i16S Nigeria integrates security features, audio/video intercom, and broadcasting capabilities for versatility. It excels in commercial, industrial, or residential settings, offering seamless communication experiences. Its intuitive interface enhances productivity, embodying innovation and excellence in communication technology.

The Fanvil i16S Nigeria SIP Intercom is more than a communication device; it’s a symbol of engineering ingenuity, providing cutting-edge solutions for modern communication challenges.

Highlights

Built-in HD camera with infrared night vision, adopt H.264 codec (only i16SV)
IP65 waterproof and dustproof.
IK10 anti-collision with robust die-cast aluminum frame
Anti-tamper- alarming as long as the cover is apart from the housing, and reporting to the control center at the same time
HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller
Audio line out port, expandable external active speaker.
Built-in 2 short-in detect port and 2 short-out control port
Support built-in TF card slot for data storage or audio offline broadcasting.
Compatible with major platforms : Asterisk, Broadsoft, 3CX, Metaswitch,Elastix, Avaya etc.

Features

Generic

2 SIP lines
Speed dial
Linkage with IP camera to realize video intercom
Oral announcement of the IP address(in English)
MP3 broadcasting
Support programmable DSS key
Support mono active speaker
Talkback recording output
Switch signal input and output
Support TF card
PoE enabled

Device Functions

Auto-answering
Programmable DSS keys
Through button or web page volume adjustment
Network time synchronization
Time Plan (task management)
Incoming call multicast
Dynamic multicast function
HTTP API
Action URL / Active URI

Call Functions

Call out / answer / reject
Call waiting
Intercom, Multicast
Speed dial
Anonymous call (Hide caller ID)

Audio

Narrowband codec : G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K
Wideband codec : G.722, Opus
Full-duplex hands-free speakerphone with AEC
DTMF : In-band, Out-of-Band (RFC2833/ SIP INFO)

Video (Only i16SV)

Sensor : 1/2.8” color CMOS
Pixels : 2 Mega
Video coding : H.264
Resolution : 720P/1080P
Minimum illumination : 0.1Lux, support for infrared illumination
Viewing angle :
Diagonal : 126°
Horizontal : 98°
Vertical : 65°

Network

Physical : 10/100 Mbps Ethernet
IP mode : IPv4/IPv6/IPv4&IPv6
IP configuration : Static IP / DHCP / PPPoE
VPN : L2TP / OpenVPN
VLAN

Protocols

SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
PPPoE
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Physical Specifications

1 DSS key (support LED)
RJ45 port x1 : connect the network
- PoE enabled
Line out port x1 : connect the active speaker
- Out : adjustable by volume, max up to1.2Vpp.
- Port : terminal socket
Recording output port x1 : connect audio device
- Out : mixed output of local microphone voice and call voice recording
- Impedance : 15 Ohm
- Port : terminal socket
Short circuit input and output port x2 (built-in relay)
- Relay : MAX DC30V / 2A, AC125V / 0.5A
- Active switching output : 12V/500mA DC(only 1 relay support)
- Port : terminal socket
Tamper alarm switchx1
TF card slot x1 : connect TF card
DC port x1 : DC power input
- DC power input : DC12V~24V/1A
- Port : 2 Pin terminal socket
PoE level : Class 3
Protection level : IP65 and IK10
Housing material : aluminum alloy shell
Installation : wall-mounted
Working temperature : -30℃ ~ 60℃
Storage temperature : – 40℃ ~ 70℃
Working humidity : 10~95%
W/CTN : 9.5kg
W/CTN : 10.05kg
Device dimensions : 195x120x40 mm
Gift box dimensions : 260x165x62 mm
Outer CTN dimensions : 348x328x280 mm (10 PCS)
