Description

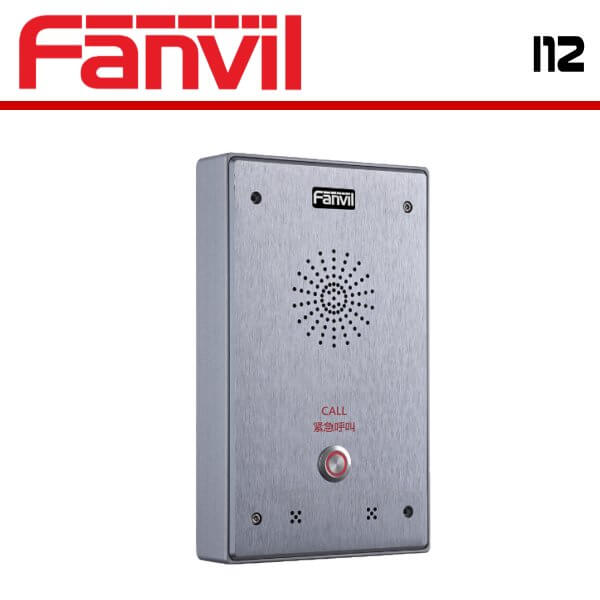

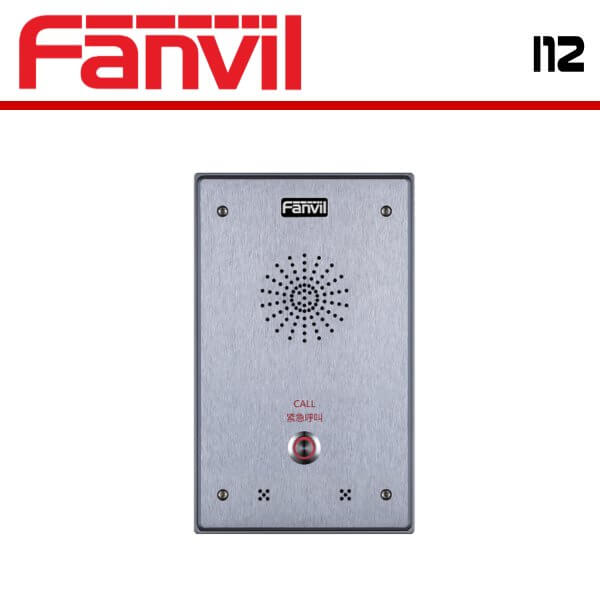

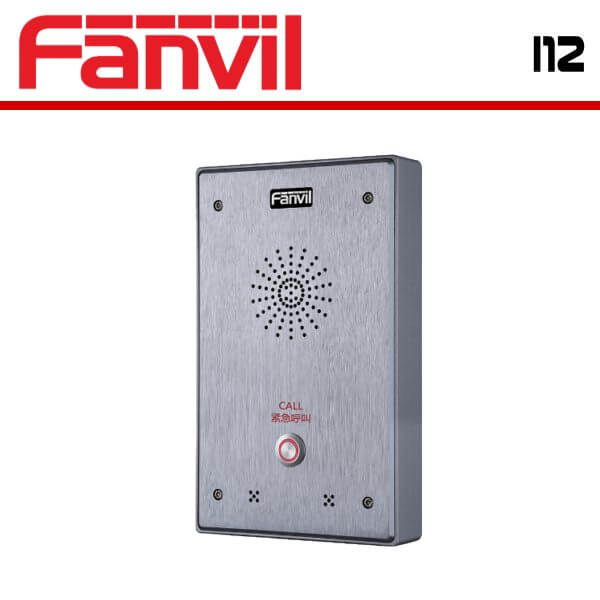

Fanvil i12 SIP Intercom Nigeria

The Fanvil i12 Nigeria single is an intelligent, single button security intercom designed for a range of different application scenarios such as banks, schools, museums, city centers and many more. The Fanvil i12 Nigeria SIP intercom combines IP technology with an industrial intercom and can be easily configured and managed.

Fanvil i12 Nigeria features advanced technology, including environmental noise reduction and rich, wideband audio via the 2W speaker, to offer a premier entry phone experience. With dual Ethernet ports and PoE support, it integrates with your network seamlessly. Fanvil i12 Nigeria has built-in vandal protection, as well, including anti-stamp nets and an anti-tamper switch. Fanvil i12 Nigeria has an incredible operating temperature range of -40°F to 158°F. The Fanvil i12 intercom supports two output short circuits for video surveillance and alarm light and two input short circuits for a door phone button and an emergency button.

Features

HD Video

A user can simply press the “Call” button to make a call with full – duplex video. The Fanvil i12 Nigeria SIP Intercom provides you the infrared night vision using its built-in 720P HD camera which captures crystal clear images.

HD Voice Quality

Built to support the advanced DSP noise reduction algorithms and systematic procedures of omnidirectional sound pickup, the Fanvil i12 Nigeria SIP Intercom Nigeria delivers crystal clear conversations. It can effectively minimize background noises which may distract the audibility and fluency of phone calls.

24H Video Surveillance

Connected with VMS (video management system) via ONVIF, the Fanvil i12 Nigeria SIP Intercom can be used for 24H video monitoring. This enables the user to keep an eye on their office or premise even when they are miles away.

Multi-Protection Design

With a waterproof and dustproof grade IP65 design, the anti-collision standard IK10 and the wide temperature range from -40℃ to 70℃, the Fanvil i12 Nigeria SIP Intercom is built to meet special demands and requirements of various industries. It can therefore withstand harsh weather conditions whenever it is used in outdoor settings.

Alarm Linkage

The Fanvil i12 Nigeria SIP Intercom can trigger the record of camera video or the alarm indicator using an integrated short output port.

Access Control

Fanvil i12 SIP Intercom enables the user to open the door remotely from the comfort of their seat regardless of their distance from the unit,  by connecting to the electric lock with the short-circuit input port.

Record Output

The Fanvil i12 SIP Intercom can connect to the audio input port of the camera or digital record device
using a record output port to provide 24h Monitoring services.

External Active Speaker

Fanvil i12 SIP Intercom can connect to speaker by the audio output port to play voice messages or music as desired by the user.

Multi – Platform Compatibility

The Fanvil i12 SIP Intercom  is configured to work perfectly with different various professional office platforms including Huawei, BroadSoft, Asterisk, NEC, ZTE, Elastix, 3CX, Metaswitch, Avaya, and many others.

Easy Online Configuration and Management

An easy batch deployment incorporated into the Fanvil Device Management System  enables a user to simply configure and manage the Fanvil i12 SIP Intercom without wasting much time.

2 SIP Lines

The Fanvil i12 Nigeria SIP Intercom supports 2 SIP accounts, therefore boosting efficiency and enhancing communication in the office. This generally improves the productivity of employees.

Supports Power over Ethernet  (PoE)

The Fanvil i12 Nigeria SIP Intercom is a highly economical device which is built to minimize high power consumption using Power over Ethernet. It is equipped with an adaptive 10/100mbps Gigabit Ethernet port which connects to a power source. For users who do not have PoE equipment, the traditional power adapter should be used. If the device is connected to a PoE switch and power adapter at the same time, the power adapter will be used in priority and will switch to PoE power supply at power failure on the power adapter.

SIP Compliance

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Furthermore, the Fanvil i12 Nigeria SIP Intercom can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. The Fanvil i12 SIP Intercom is based on SIP v2 (RFC 3261) and works perfectly with most of the SIP platforms such as Asterisk,3CX,  and BroadSoft  that currently exist in the market.

Wall – Mountable, Simple & Space – Saving

The Fanvil i12 Nigeria SIP Intercom is a wall-mountable device which  combines the advantages of a neat, compact appearance with the most commonly used functions of a communication intercom. It is a good choice for hospitals, hotels and general business functions

Specifications

General :

• 2 SIP Lines
• PoE enabled(Power over Ethernet)
• Full-duplex speakerphone
• Intelligent DSS Keys (Speed dial)
• Wall-mount installation
• Special integrated noise reduction module
• Omnidirectional voice pickup
• 2 embedded short-circuit input interfaces
• 2 embedded short-circuit output interfaces. Support 4
  – controlled events : remote DTMF; remote server’s
  – commands; interaction with short circuit input; talking status
• Output interface for active speaker
• Audio record output interface
• External Power Supply
• Multicast
• All in ONE : door access, intercom and paging service
• Industrial standard certifications : IP65, IK10, CE/FC

Call Features :

• Intercom
• Speed dial(speed dial key)
• Auto-answering (per line)
• Voice message (on server)
• Local 3-way Conference

Phone Features :

• Call log (900 entries, in/out/missed)
• Programmable DSS keys
• Network time synchronization
• Action URL / Active URI

Audio :

• Narrowband CODEC : G.711a/u, G.723.1, G.726-32K,G.729AB
• Wideband CODEC : G.722
• Full-duplex Acoustic Echo Canceller (AEC) – Hands-free mode, 96ms tail-length Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise
• Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic adaptive jitter buffer up to 300ms
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833)/ SIP INFO
• Omnidirectional voice pickup : pickup distance to 5 m

Networking :

• Physical : RJ45 Ethernet Jacket x2 : Network x1 (802.3AF POE Enabled), LAN x1 (Bridged to Network)
• IP configuration : Static / DHCP / PPPoE
• Network access control : 802.1x
• VPN : L2TP (Basic Unencrypted) / OpenVPN
• VLAN
• QoS

Protocols :

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• 802.1x
• L2TP (Basic Unencrypted)
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• Tr069

Deployment & Maintenance :

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/ DHCP/TR069/SIP PNP
• Web management portal
• Web-based packet dump
• Configuration backup/restore
• Firmware upgrade
• Syslog

Physical Specifications :

• 1 or 2 Hands-free keys or DSS Keys (Speed dial)
• Rj45 Ethernet Jacket x2 : Network x1 (802.3AF POE enabled), LAN x1 (Bridged to network)
• Main chipset : Broadcom
• Passive switch(short-circuit output) : normally open and normally closed highest at 30V/1A AC/DC
• Audio Amplifier : 2.5W
• Output interface for active speaker
• Audio record output interface
• 2 embedded short-circuit input interfaces/2 embedded short-circuit output interfaces
• Speaker : 2W/4Ω
• Cables : CAT5 or better
• Power supply：10~14V/1.5A DC or PoE
• Shell material : Aluminum cover and back case
• Protection level : IP65 and Ik10
• Working temperature :-40~70℃
• Storage temperature :-40~70℃
• Working humidity : 10~90%
• Overall dimension : 195x120x39mm (W x H x L)
• Package dimensions : 260x165x62mm (W x H x L)
• Package weight : 0.85KG
