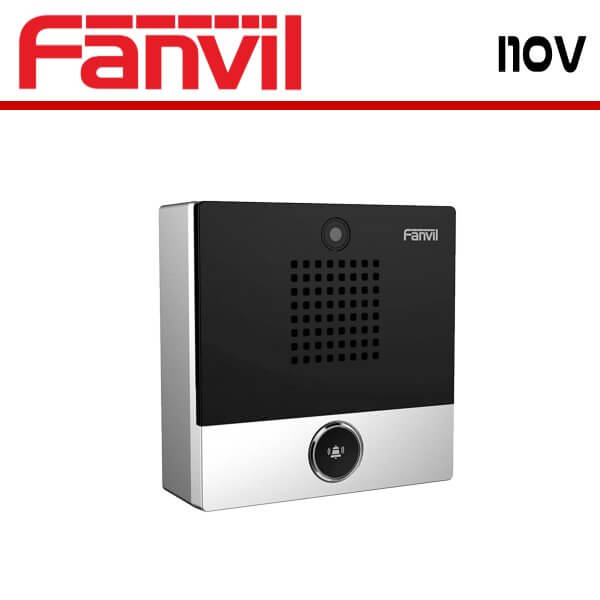

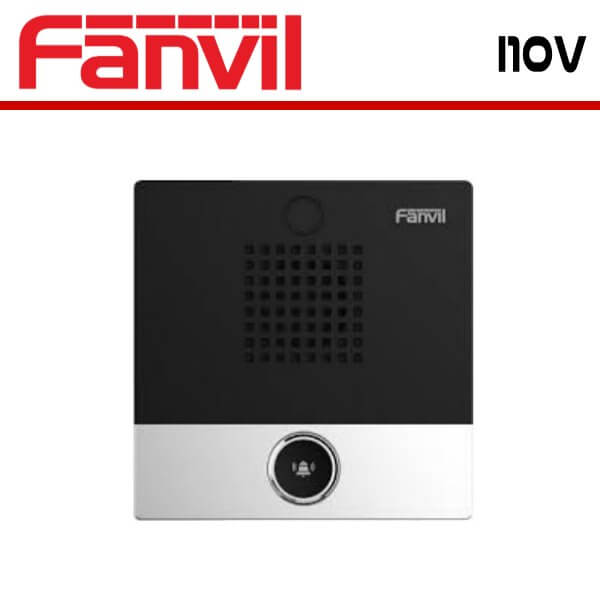

Fanvil i10V SIP Mini Intercom Nigeria
The Fanvil i10V Nigeria is an IP54 certified waterproof and dustproof SIP mini intercom. Designed for indoors, the i10V supports wall mounting and 86mm wall socket installation. A combination of security, audio/video intercom, and broadcasting functionalities make the i10V a qualified communications solution to all users. The i10 Series of intercoms from Fanvil include the i10 with one button, the i10D with two buttons, and the i10V with video capabilities providing a versatile series of security intercoms designed to meet every need.
The Fanvil i10V Nigeria is elegant and compact in size, yet powerful and robust with high-quality communication features. Some of the many scenarios where an i10 device would be ideal are hotel bathrooms, nursing homes, schools, apartment buildings, office entrances, and supermarkets amongst many more. The i10V is mini audio and video intercom that is IP54 rated with a temperature range of -20°C to 50°C.
Features
- Fanvil SIP Mini Intercom i10V
- IP door intercom
- Water and dust protection in accordance with IP54.
- Camera and a bell-button
Unmatched Audio
Fanvil i10V Nigeria boasts of HD audio with built-in 1W speaker, Opus and Acoustic Echo Canceller (AEC)
HD Video
Fanvil i10V Nigeria only need one press to make a video call. Built-in 1 megapixel HD camera with 720P resolution in i10V ensures the high-definition pictures in video call.
Easier Access Control in Office
The Fanvil i10V Nigeria can be connected with the original office access control through the output interface, which enables you to open the door in distance by VoIP phones, cellphones or i10D unlock button after the visitor calls with one press on i10/i10V.
Waterproof and Dustproof
Featuring with IP54 standard and the wide temperature range from -20℃ to 50℃, Fanvil i10V Nigeria can be applied in different kinds of indoor environment.
Efficient Configuration and Management
It is faster and easier to configure and manage i10 series by batch deployment on Fanvil Device Management System.
Specifications
General
- 2 SIP Lines
- Auto answer
- Intercom function
Intercom Function
- Dynamic multicast function
- Support ONVIF
- Support customized DSS keys
- Network Time Synchronization
- Action URL / Active URI
Video (i10V)
- Sensor : 1/4” color CMOS
- Pixel : 1 million
- Video coding : H.264
- Resolution : 720P
- Viewing angle : 90°
- Minimum illumination : 0.1Lux
Audio
- Wideband ADC/DAC 16KHz sampling
- Narrowband Codec : G.711a/u, G.729AB, AMR, iLBC
- Wideband Codec : G.722, AMR-WB, Opus
- Full-duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer up to 300ms
- DTMF : In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
Deployment and maintenance
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
- Web Management Portal
- Web-based Packet Dump
- Configuration Export / Import
- Firmware Upgrade
- Syslog
Networking
- Physical : 10/100 Mbps Ethernet
- IP Mode :IPv4/IPv6/IPv4&IPv6
- IP Configuration : Static / DHCP / PPPoE
- Network Access Control : 802.1x
- VPN : L2TP / OpenVPN
- VLAN
- LLDP
- QoS
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Physical Specification
- i10/i10V :1 DSS button (speed dial button);i10D :2 DSS button
- 1 RJ45 port
- 1 short circuit input interface
- 1 short circuit output interface
- Power : DC12V/1A or POE
- Housing material : ABS
- Installation : Indoor installation
- Working temperature : -20 ~50 °C
- Storage temperature : -20 ~ 50 °C
- Relative humidity : 10% – 90%
- Equipment size : 88 x 88 x 31mm
- Packing size : 95x108x40mm
- Equipment weight : 135g
