Description

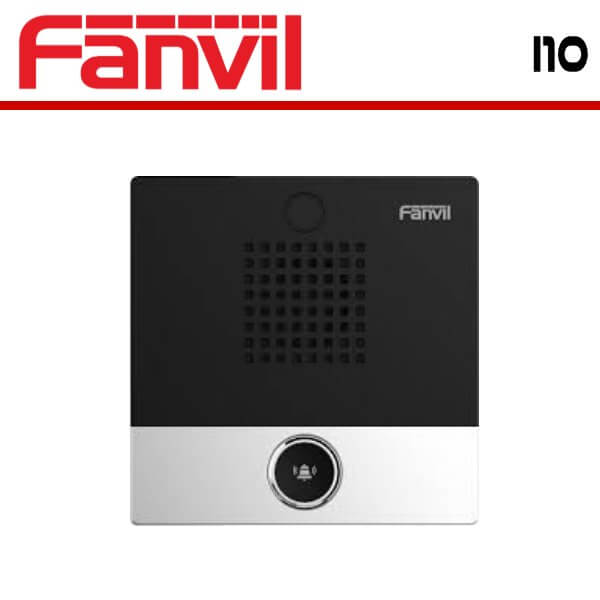

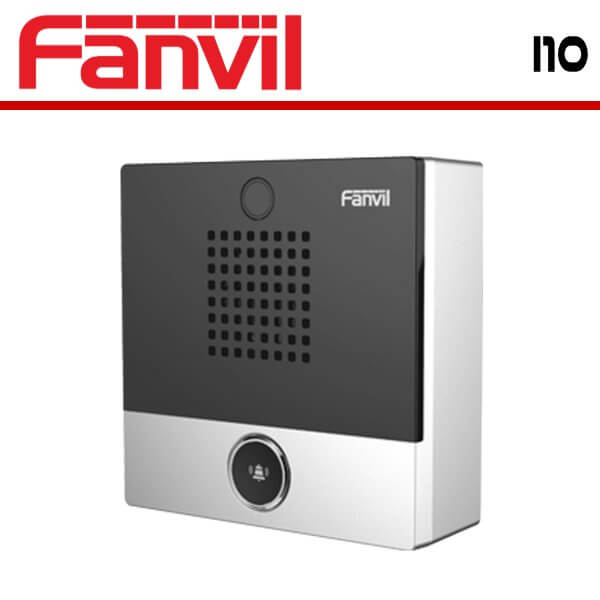

Fanvil i10 SIP Mini Intercom Nigeria
The Fanvil i10 Nigeria is designed for indoor scenes with IP54 waterproof and dustproof. Supports wall mounting and 86mm wall socket installation. It combines security, audio/video intercom and broadcasting functionalities and offers the qualified communication solution for users. The intercom has a single, programmable button for quick dialing an extension. An integrated 1W speaker and microphone provides HD wideband audio for crystal clear sounds. Acoustic echo cancellation further minimizes any background noises. Fanvil i10 Nigeria is an IP intercom that supports the open SIP protocol, enabling you to easily integrate it with compatible VoIP systems or services. Configure and manage i10 centrally from a workstation without much struggle.
The Fanvil IP desk phone can be connected with the system to allow for easy unlocking of the door from the phone. The Fanvil i10 Mini IP Intercom is built in compliance with the IP54 durability standard against water and dust ingress. Power i10 supports PoE. It delivers crystal clear sounds courtesy of HD audio with built-in 1W speaker, Opus, and Acoustic Echo Canceller (AEC). What’s more, the Fanvil i10/i10V can be connected with the original office access control through the output interface, so as to enable you to open the door from a distance by VoIP phones, cellphones or even the i10D unlock button after the visitor calls with just one single press on i10/i10V.
Features
HD Audio
The Fanvil i10 Nigeria SIP Mini Audio Intercom comes with an integrated 1W speaker, Opus, and Acoustic Echo Canceller (AEC) which delivers crystal clear voices devoid of extraneous noises.
Multi – Platform Compatibility
The Fanvil i10 Nigeria SIP Mini Audio Intercom is configured to work perfectly with different various professional office platforms including Huawei, BroadSoft, Asterisk, NEC, ZTE, Elastix, 3CX, Metaswitch, Avaya, and many others.
Waterproof and Dustproof Coating
Featuring with IP54 standard and the wide temperature range from -20℃ to 50℃, the Fanvil i10 Nigeria can be applied in different kinds of indoor environment. It is therefore a highly durable device that can withstand harsh weather conditions such as rain, hence saving you from frequent repair costs due to mechanical damages.
Easy Configuration and Management
An easy batch deployment incorporated into the Fanvil Device Management System enables a user to simply configure and manage the Fanvil i10 SIP Mini Intercom without wasting much time.
2 SIP Lines
The Fanvil i10 SIP Mini Intercom supports 2 SIP accounts, therefore boosting efficiency and enhancing communication in the office. This generally improves the productivity of employees.
Supports Power over Ethernet (PoE)
The Fanvil i10 SIP Mini Intercom is a highly economical device which is built to minimize high power consumption using Power over Ethernet. It is equipped with an adaptive 10/100mbps Gigabit Ethernet port which connects to a power source. For users who do not have PoE equipment, the traditional power adapter should be used. If the device is connected to a PoE switch and power adapter at the same time, the power adapter will be used in priority and will switch to PoE power supply at power failure on the power adapter.
SIP Compliance
The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Furthermore, the Fanvil i10 Nigeria SIP Mini Intercom can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. The Fanvil i10 SIP Mini Intercom is based on SIP v2 (RFC 3261) and (RFC 3262) works perfectly with most of the SIP platforms such as Asterisk,3CX, and BroadSoft that currently exist in the market.
Wall – Mountable, Simple & Space – Saving
The Fanvil i10 Nigeria SIP Mini Intercom is a wall-mountable device which allows for an 86mm wall socket installation and combines the advantages of a neat, compact appearance with the most commonly used functions of a communication intercom. It is a good choice for hospitals, hotels and general business functions.
Specifications
General
- 2 SIP Lines
- Auto answer
- Intercom function
Intercom Function
- Dynamic multicast function
- Support ONVIF
- Support customised DSS keys
- Network Time Synchronisation
- Action URL / Active URI
Video (i10V)
- Sensor : 1/4? color CMOS
- Pixel : 1 million
- Video coding : H.264
- Resolution : 720P
- Viewing angle : 90?
- Minimum illumination : 0.1Lux
Audio
- Wideband ADC/DAC 16KHz sampling
- Narrowband Codec : G.711a/u, G.729AB, AMR, iLBC
- Wideband Codec : G.722, AMR-WB, Opus
- Full-duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer up to 300ms
- DTMF : In-band, Out-of-Band ? DTMF-Relay(RFC2833) / SIP INFO
Deployment and maintenance
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
- Web Management Portal
- Web-based Packet Dump
- Configuration Export / Import
- Firmware Upgrade
- Syslog
Networking
- Physical : 10/100 Mbps Ethernet
- IP Mode :IPv4/IPv6/IPv4&IPv6
- IP Configuration : Static / DHCP / PPPoE
- Network Access Control : 802.1x
- VPN : L2TP / OpenVPN
- VLAN
- LLDP
- QoS
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Physical Specification
- i10/i10V :1 DSS button (speed dial button);i10D :2 DSS button
- 1 RJ45 port
- 1 short circuit input interface
- 1 short circuit output interface
- Power : DC12V/1A or POE
- Housing material : ABS
- Installation : Indoor installation
- Working temperature : -20 ~50 *C
- Storage temperature : -20 ~ 50 *C
- Relative humidity : 10% – 90%
- Equipment size : 88 x 88 x 31mm
- Packing size : 95x108x40mm
- Equipment weight : 135g
