Description

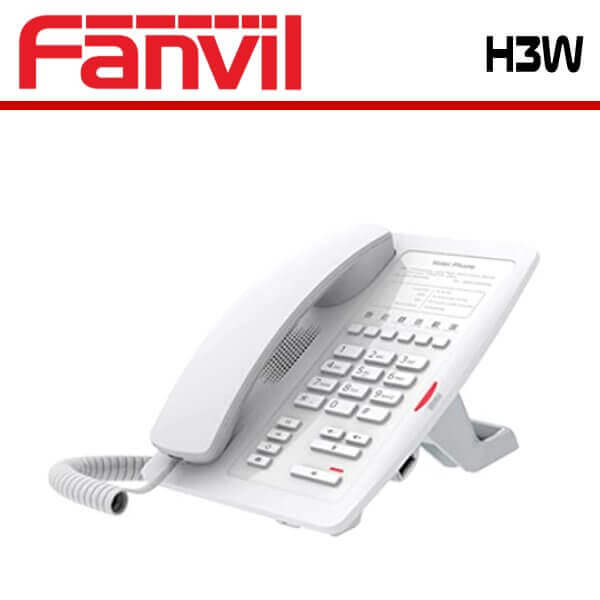

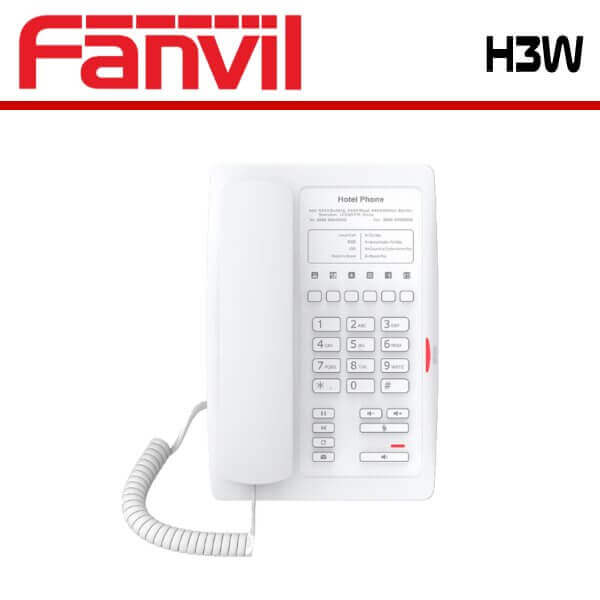

Fanvil H3W Wi-Fi IP Phone Nigeria

The Fanvil H3W Nigeria IP Phone with integrated WiFi allows hotels and other business such as retail and hospitals an easy way to deploy their telephony system via WiFi, completely wirelessly. The H3W is easy to use and has great features such as speed dial, service hotline and more. The H3W has an integrated USB charging port and supports the Opus Codec. Add to that HD Audio and you have a quality phone at an unbeatable price.

Features

• White
• 2 SIP line
• 1 USB Port for Phone Charging
• 6 Programmable Keys for Speed Dial Functions
• Support PoE
• Optional External Power Supply
• Indicator Light
• Call hold, Redial, Call Transfer, Hotline, Voice Mail etc.

Capture Every HD Voice

With the wide codec G.722 and Opus, Fanvil H3W Nigeria can convey every voice during your communications clearly and stably.

Elegant Outlook

Fanvil H3W Nigeria is the IP Phone designed for hotels. With a stylish, fresh appearance, excellent voice quality, and matching integrated communication platform, it can become a new generation of hotel intelligent terminal equipment.

6 Programmable Soft Keys for Service Hotline

6 programmable Soft Keys for the service hotline (Housekeeping, Ticketing, Switchboard, Food and beverage, etc.) and the hotel considerate services (Morning call, Voice message, and etc).

Support SIP Hotspot

Fanvil H3W Nigeria can share one number from the server. When a call comes in, each extension phone will ring together to make sure you won’t miss a call.

Specifications

• Generic

  • 2 SIP Lines
  • HD Voice
  • PoE
  • Handset / Hands-free mode
  • External Power Supply(Optional)

• Phone Functions

  • Call logs (In/Out/Missed, Max support 600 records in the web)
  • Programmable DSS/soft keys
  • Action URL / Active URI
  • Web dial
  • Dial plan
  • SIP Hotspot
  • Distinctive ring
  • Multicast

• Call Functions

  • Call out / Answer
  • Mute / Unmute
  • Call Hold / Resume
  • Speed Dial
  • Redial
  • Auto-Answering
  • Hot Line
  • Customised ring

• Audio

  • Wideband ADC/DAC 16KHz sampling
  • Narrowband codec : G.711A/U, G.729AB, iLBC
  • Wideband codec : G.722, Opus
  • Full-duplex hands-free speakerphone with AEC
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
  • VQM voice quality monitoring

• Network

  • 10/100 Mbps Ethernet
  • IP Mode :IPv4/IPv6/IPv4&IPv6
  • IP Configuration : Static / DHCP / PPPoE
  • Network Access Control : 802.1x
  • VPN : L2TP / OpenVPN
  • VLAN : 802.1P/Q
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)

• Protocols

  • SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • PPPoE
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

• Deployment & Maintenance

  • Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
  • Web management portal
  • Web-based packet dump
  • Configuration export / import
  • Firmware upgrade
  • Syslog

• Physical Specifications

  • Keypad : 26 keys, including :
    – 6 DSS Key
    – 4 Function keys (Hold, Call Transfer, Redial, MWI)
    – 12 Standard Phone Digits keys
    – 3 Volume Control keys, Up/Down/Mute(with red colour LED)
    – 1 Hands-free key
  • MSG indicator (with red colour LED) x1
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset Cord x1
  • RJ9 Port x1 : Handset x1
  • RJ45 Port x2 : Network x1, PC x1 (Bridged to Network)
  • USB Port x1 : Standard A
  • Power : 5V/2A or PoE
  • Power Consumption (PoE) : 1.5W ~ 5.65W
  • Power Consumption (Adapter) : 2.13W ~ 7.46W
  • Working Temperature : 0~45℃
  • Working Humidity : 10~95%
  • Installation : Desktop
  • Colour : Black/white
  • Device Dimensions : 151.7×193.2×131.7mm
  • Gift Box Dimensions : 225x210x125mm
  • Outer CTN Dimensions : 515x435x245mm(8 PCS)
