Description

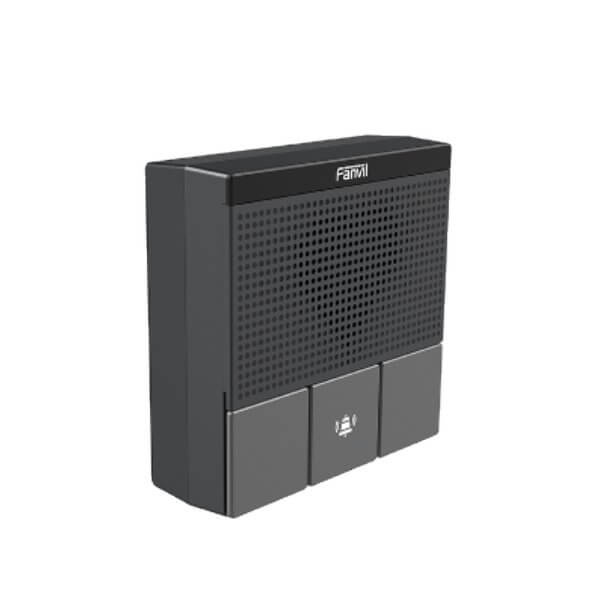

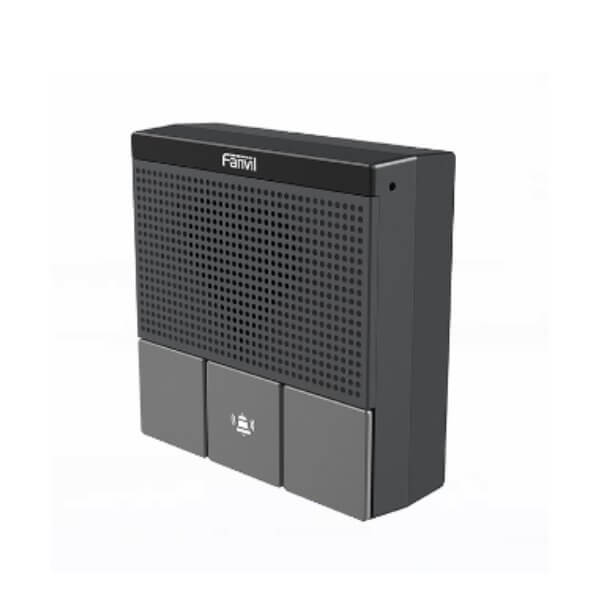

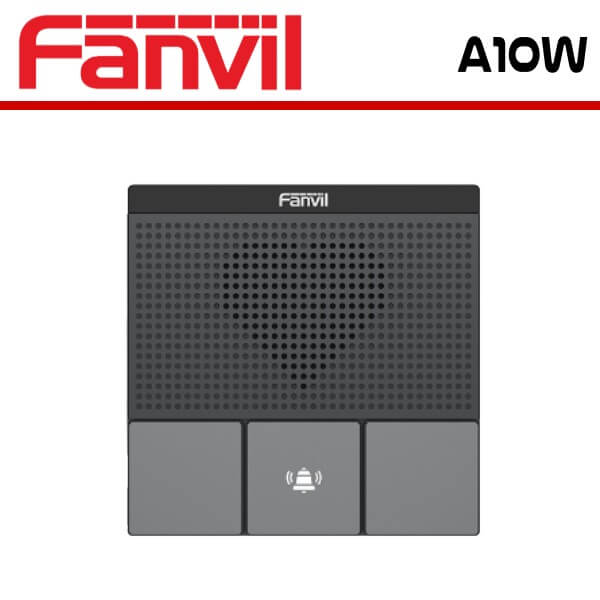

Fanvil A10W SIP Intercom Nigeria

The Fanvil A10W Nigeria SIP mini intercoms are designed for indoor use, offering security, intercom, and broadcasting features. They are sleek, compact, and versatile with 2 SIP accounts, 3 detachable function buttons, and PoE power supply capabilities.

The A10 series features HD audio, IP54 waterproof and dustproof ratings, and built-in 2.4G & 5G Wi-Fi (A10W/A10W-E) for clear communication in any location. Installation options include wall mounting (A10/A10W) and standard 86 box embedding (A10-E/A10W-E), making them suitable for various setups. Ideal for residential complexes, office buildings, and commercial spaces, Fanvil A10W Nigeria SIP mini intercoms offer a reliable communication solution.

Highlights

• Features 2 SIP accounts and 3 detachable function buttons
• Built-in 2.4G & 5G Wi-Fi (A10W/A10W-E)
• IP54 waterproof and dustproof
• Support HD audio with codec G.722 and Opus
• Built-in 2W speaker and Acoustic Echo Canceller (AEC)
• Built-in 1 short circuit input/output interface
• Support PoE power supply
• Support standard 86 box embedded (A10-E/A10W-E) and wall mountable(A10/A10W) installation

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4G & 5G Wi-Fi(A10W/A10W-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Network Time Synchronization
• Built-in Wi-Fi (A10W/A10W-E)
  • 2.4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• Wi-Fi : 2.4G&5G (A10W/A10W-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• A10 Series : 3 DSS button；
• Status indicator light : Fast flashing red (registration failed、network anomaly)、Slow flashing green(call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 0.94W~1.98W (A10/A10-E)
  • 1.42W~2.35W (A10W/A10W-E)
• Power Consumption (PoE)：
  • 1.48W~2.37W (A10/A10-E)
  • 1.99W~3.05W (A10W/A10W-E)
• Housing material : ABS
• Installation : Indoor installation
  • Standard 86 Box Embedded(A10-E/A10W-E)
  • Wall Mountable(A10/A10W)
• Color : Gunmetal
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• Qty/CTN：20 PCS
• N.W/CTN : 3.41kg
• G.W/CTN : 3.6kg
• Equipment Dimension :
  • 87.56 x 87.56 x 30mm (Wall Mountable)
  • 87.56 x 87.56 x 21.5mm ( 86 Box Embedded)
• Packing Dimension : 95x106x40mm
• Outer CTN Dimension : 224x220x210mm(20 PCS)
