Description

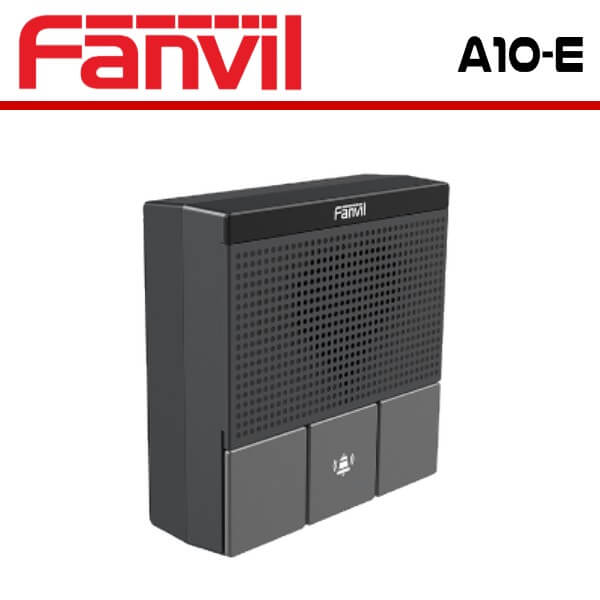

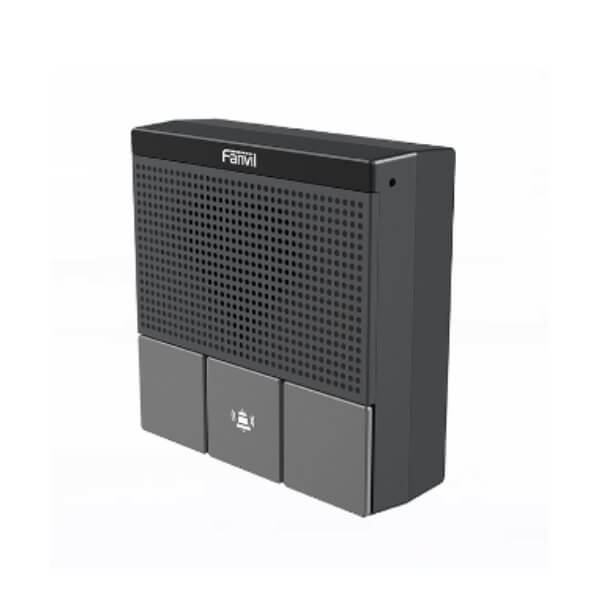

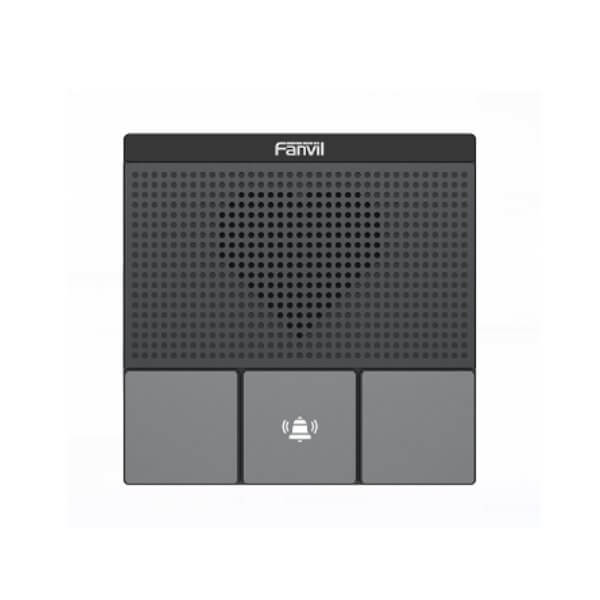

Fanvil A10-E SIP Intercom Nigeria

The Fanvil A10-E Nigeria SIP mini intercoms offer advanced indoor communication solutions with security, intercom, and broadcasting features. With 2 SIP accounts and 3 customizable buttons, they provide flexibility. The inclusion of Power over Ethernet (PoE) streamlines installation.

These intercoms boast HD audio, IP54 waterproof ratings, and 2.4G/5G Wi-Fi options for seamless connectivity. They offer both wall-mountable and standard 86 box embedded options, suitable for various settings from homes to businesses.The Fanvil A10-E Nigeria SIP mini intercoms blend innovation and functionality, ensuring high-quality communication with convenience and adaptability.

Highlights

• Features 2 SIP accounts and 3 detachable function buttons
• Built-in 2.4G & 5G Wi-Fi (A10W/A10W-E)
• IP54 waterproof and dustproof
• Support HD audio with codec G.722 and Opus
• Built-in 2W speaker and Acoustic Echo Canceller (AEC)
• Built-in 1 short circuit input/output interface
• Support PoE power supply
• Support standard 86 box embedded (A10-E/A10W-E) and wall mountable(A10/A10W) installation

Features

Generic

• 2 SIP Lines
• Auto answer
• HD Voice
• PoE Enabled
• Built-in 2.4G & 5G Wi-Fi(A10W/A10W-E)
• Intercom function
• External Power Supply (Optional)

Intercom Function

• Support customized DSS keys
• Network Time Synchronization
• Built-in Wi-Fi (A10W/A10W-E)
  • 2.4G, 802.11 b/g/n
  • 5G, 802.11 a/n
• Action URL / Active URL

Audio

• Narrowband Codec : G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec : G.722, Opus
• Duplex intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF : In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical : 10/100 Mbps Ethernet
• Wi-Fi : 2.4G&5G (A10W/A10W-E)
• IP Mode : IPv4/IPv6/IPv4&IPv6
• IP Configuration : Static / DHCP / PPPoE
• Wi-Fi Encryption : WPA /WPA2-PSK /802.X EAP
• VPN : L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• A10 Series : 3 DSS button；
• Status indicator light : Fast flashing red (registration failed、network anomaly)、Slow flashing green(call)
• 1 RJ45 port
• 1 short circuit input interface
• 1 relay : NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Power : DC12V/1A or POE
• Power Consumption (Adapter)：
  • 0.94W~1.98W (A10/A10-E)
  • 1.42W~2.35W (A10W/A10W-E)
• Power Consumption (PoE)：
• 1.48W~2.37W (A10/A10-E)
• 1.99W~3.05W (A10W/A10W-E)
• Housing material : ABS
• Installation : Indoor installation
  • Standard 86 Box Embedded(A10-E/A10W-E)
  • Wall Mountable(A10/A10W)
• Color : Gunmetal
• working temperature : -10 ~50 °C
• Storage temperature : -20 ~ 50 °C
• Relative humidity : 10% – 90%
• Qty/CTN：20 PCS
• N.W/CTN : 3.41kg
• G.W/CTN : 3.6kg
• Equipment Dimension :
  • 87.56 x 87.56 x 30mm (Wall Mountable)
  • 87.56 x 87.56 x 21.5mm ( 86 Box Embedded)
• Packing Dimension : 95x106x40mm
• Outer CTN Dimension : 224x220x210mm(20 PCS)
