Dinstar UC2000-VF-16T-B Nigeria

Description

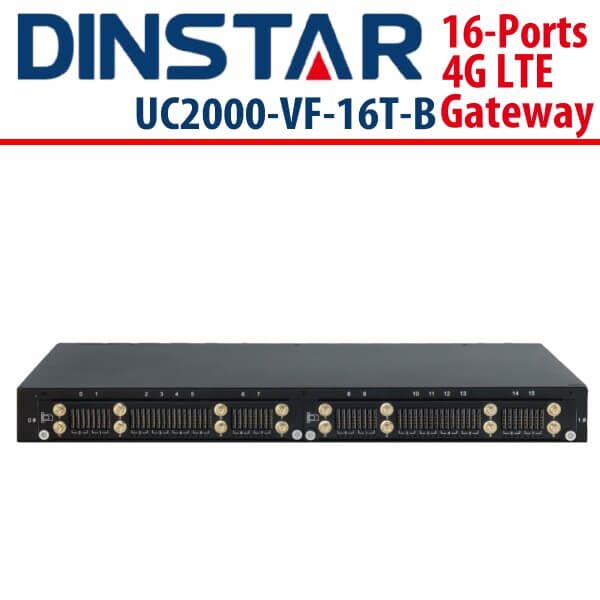

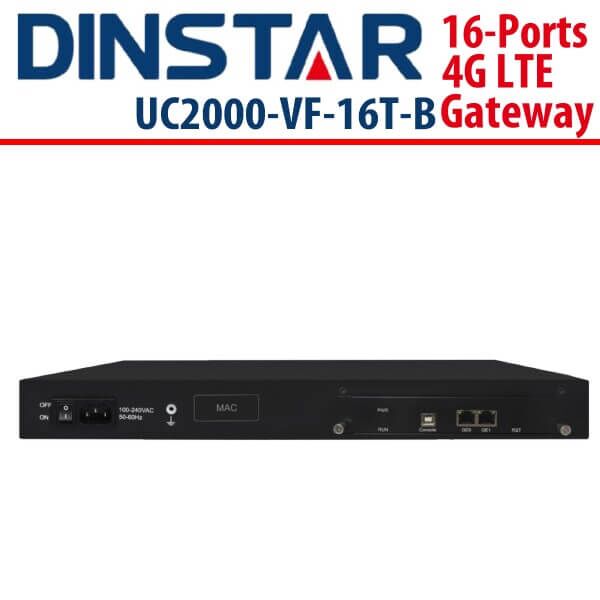

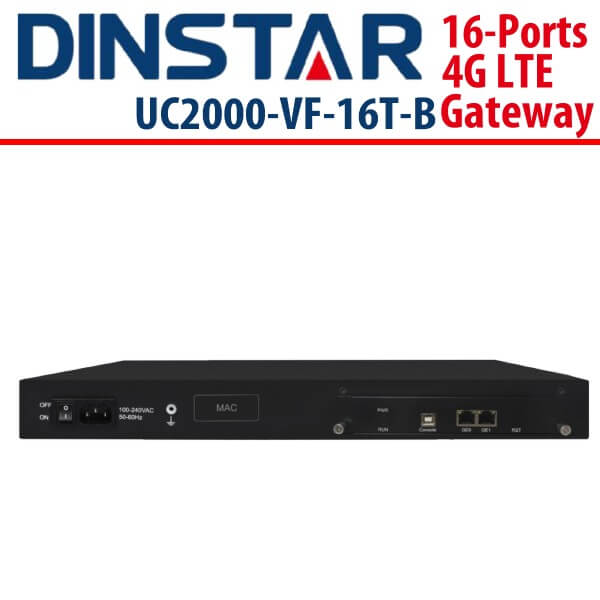

Dinstar UC2000-VF-16T-B 4G Gateway Nigeria

The Dinstar UC2000-VF-16T-B Nigeria supports up to 16 concurrent calls, making it an ideal choice for users. It is a wireless gateway based on DINSTAR new hardware platform and powerful embedded CPU, leveraging state-of-art and latest VoIP / SIP technology, that enables the smooth transit between 4G/3G/2G mobile network and VoIP networks. Moreover, with open API, it allows users to build their own application software to send SMS/USSD messages or bulk SMS messages, or push their text messages from email, HTTP etc. It is suitable for enterprises, multi-site organizations, call centers and areas with limited landline like rural area to cut down telephony costs and enable easy & efficient communications. This is the one among the model of model of Dinstar 4G gateway Nigeria

Key Features :

Up to 16 Channels GSM or LTE
Powerful Embedded CPU
Compatible with LTE-FDD/LTE-TDD/WCDMA/GSM Networks
Compatible with Mainstream VoIP Platform
Hot Swappable SIM Cards
Voice over LTE (VoLTE)
HTTP API for SMS Application Integration
SMS to Email & Email to SMS
Flexible Dial Rules & Manipulation Rules
Auto CLIP
Remote SIMs Management (optional)

Technical Specifications

Hardware Interfaces

Mobile : 16 Channels
SIM Card slots : 16
Antennas Connectors : SMA
Ethernet Interfaces : 2*10/100/1000 Base-T, RJ45
LED Indicators : Power, RUN, Channel indicator
Console : 1* RS232 (USB-B connector)
RST/PWR Button

VoIP & Media

Protocol : SIP v2.0, RFC3261
SIP UDP/TCP/TLS
RTP/SRTP
Codecs : G.711A/U, G.723.1, G.729A/B, G.722, AMR, OPUS(TBD)
Silence Suppression
Comfort Noise Generator(CNG)
Voice Activity Detection(VAD)
Echo Cancellation
Dynamic Jitter Buffer
DTMF : RFC2833, SIP Info
Call Progress Tone Generation
Programmable Gain Control
NAT : STUN, Dynamic NAT, Static NAT

Frequency Bands(2G/3G)

UC2000-VF-16G : GSM Gateway : 850/900/1800/1900MHz
UC2000-VF-16W : WCDMA Gateway with two options
A : WCDMA 850/1900MHz and GSM 850/900/1800/1900MHz;
B : WCDMA 900/2100MHz and GSM 900/1800MHz

LTE Frequency Bands

Type A : FDD : B2/B4/B12WCDMA : B2/B4/B5
Type E : FDD : B1/B3/B5/B7/B8/B20TDD : B38/B40/B41
- WCDMA : B1/B5/B8
- GSM : 900/1800MHz
Type V : FDD : B4/B13
Type J : FDD : B1/B3/B8/B18/B19/B26TDD : B41
- WCDMA : B1/B6/B8/B19
Type AU : FDD : B1/B2/B3/B4/B5/B7/B8/B28TDD : B40
- WCDMA : B1/B2/B5/B8
- GSM : 850/900/1800/1900
