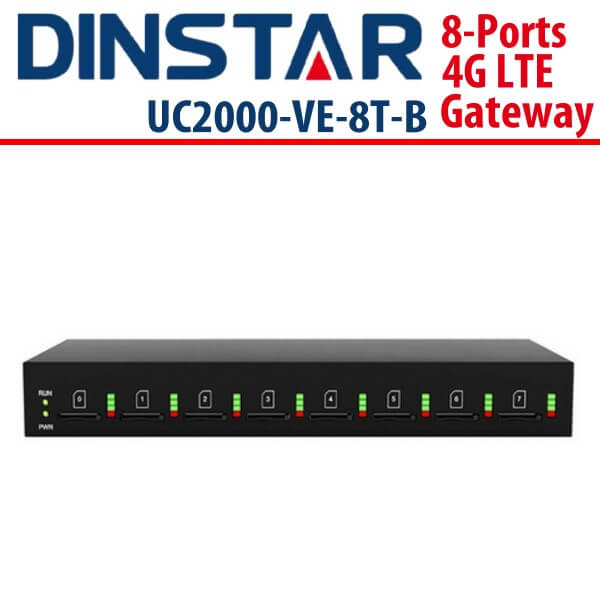

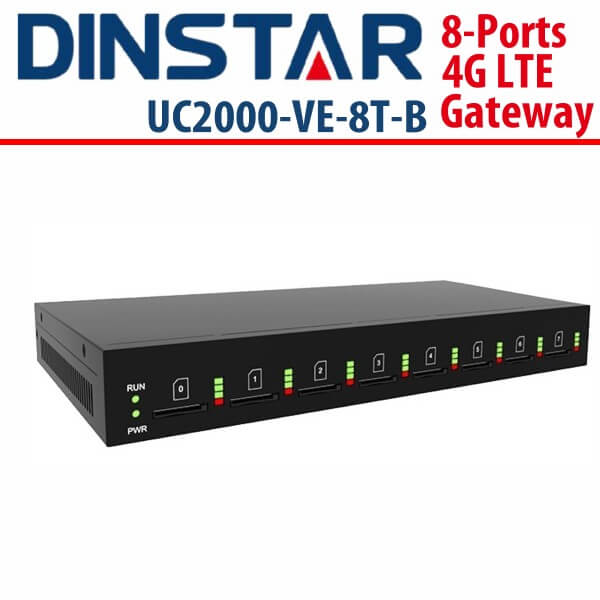

Dinstar UC2000-VE-8T-B Nigeria

The Dinstar UC2000-VE-8T-B Nigeria Gateway has great performance in software features also in new hardware structure design. The gateway provide low cost, easy and flexible IP telephony solution to enterprise, SMEs and business office etc.

Description

Dinstar UC2000-VE-8T-B GSM Gateway Nigeria

The Dinstar UC2000-VE-8T-B Nigeria features a new pop-up SIM card slot that enables its users to easily change a SIM card without having to dismantle equipment. With an opened API, users can build their own application software to send SMS/USSD messages or bulk SMS messages, or push their text messages from email, HTTP etc. The multi-functional gateway helps you to successfully implement calls between 2G/3G mobile network and VoIP network. The Gateway has great performance in software features also in new hardware structure design. The gateway provide low cost, easy and flexible IP telephony solution to enterprise, SMEs and business office etc.This is the one among the model of model of Dinstar GSM gateway Nigeria

Key Features :

8 Channels GSM or LTE
Powerful Embedded CPU
Compatible with LTE-FDD/LTE-TDD/WCDMA/GSM Networks
Compatible with Mainstream VoIP Platform
Hot Swappable SIM Cards
Voice over LTE (VoLTE)
HTTP API for SMS Application Integration
SMS to Email & Email to SMS
Flexible Dial Rules & Manipulation Rules
Auto CLIP
Remote SIMs Management (optional)

Technical Specifications

Hardware Interfaces

Mobile : 8 Channels
SIM Card slots : 8
Antennas Connectors : SMA
Ethernet Interfaces : 2*10/100/1000 Base-T, RJ45
LED Indicators : Power, RUN, Channel indicator
Console : 1* RS232 (USB-B connector)
RST/PWR Button

VoIP & Media

Protocol : SIP v2.0, RFC3261
SIP UDP/TCP/TLS
RTP/SRTP
Codecs : G.711A/U, G.723.1, G.729A/B, G.722, AMR, OPUS(TBD)
Silence Suppression
Comfort Noise Generator(CNG)
Voice Activity Detection(VAD)
Echo Cancellation
Dynamic Jitter Buffer
DTMF : RFC2833, SIP Info
Call Progress Tone Generation
Programmable Gain Control
NAT : STUN, Dynamic NAT, Static NAT

Frequency Bands(2G/3G)

UC2000-VE-4/8G : GSM Gateway : 850/900/1800/1900MHz
UC2000-VE-4/8W : WCDMA Gateway with two options
A : WCDMA 850/1900MHz and GSM 850/900/1800/1900MHz;
B : WCDMA 900/2100MHz and GSM 900/1800MHz

LTE Frequency Bands

Type A :
- FDD : B2/B4/B12
- WCDMA : B2/B4/B5
Type E :
- FDD : B1/B3/B5/B7/B8/B20
- TDD : B38/B40/B41
- WCDMA : B1/B5/B8
- GSM : 900/1800MHz
Type V : FDD : B4/B13
Type J :
- FDD : B1/B3/B8/B18/B19/B26
- TDD : B41
- WCDMA : B1/B6/B8/B19
Type AU :
- FDD : B1/B2/B3/B4/B5/B7/B8/B28
- TDD : B40
- WCDMA : B1/B2/B5/B8
- GSM : 850/900/1800/1900
