Description

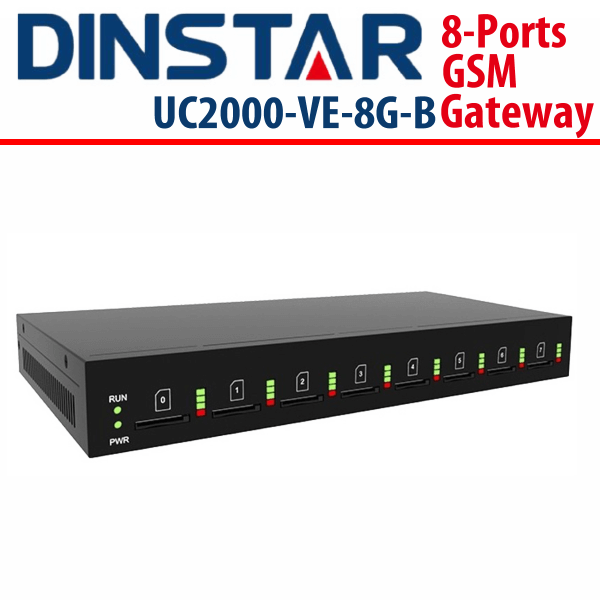

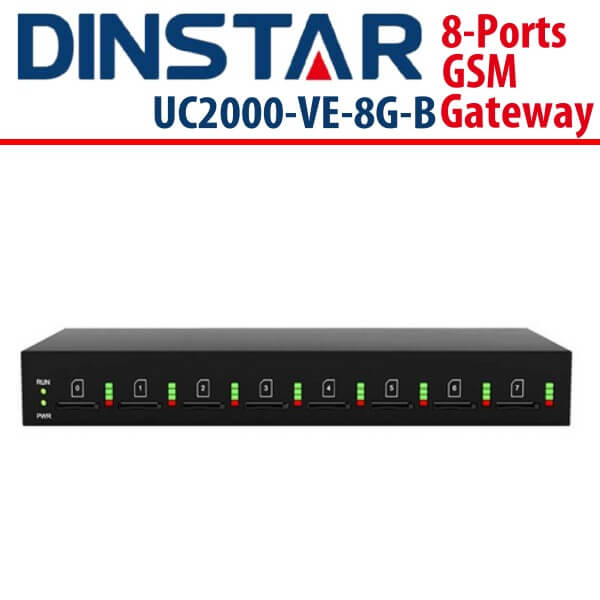

Dinstar UC2000-VE-8G-B GSM Gateway Nigeria
You can successfully make calls between a VoIP Network and a 2G/3G mobile network using the new Dinstar UC2000-VE-8G-B Nigeria, an 8-port GSM VoIP Gateway that is designed to be highly multi-functional. Its newly-designed pop-up SIM card slot enables users to change SIM card without having to dismantle the whole device. Users can also build their own application software so as to send SMS/USSD messages or bulk SMS messages, or push their text messages from email, HTTP etc, thanks to opened API. The Dinstar UC2000-VE-8G-B Nigeria has been optimized for a great performance that enhances your productivity and maximizes your communication experience. It is equipped with advanced software features as well as a new hardware structure design. The gateway provide low cost, easy and flexible IP telephony solution to enterprise, SMEs and business office etc. This is the one among the model of model of Dinstar GSM gateway Nigeria
The Dinstar UC2000-VE-8G-B Nigeria’s 8 channel gateway is able to cover up various networks with ease. These include GSM networks with quad-and frequency of 850/900/1800/1900 MHz and CDMA networks with 800 MHz frequency. Other than that, the gateway device supports VoIP and PSTN hotlines as well. With up to 8 concurrent calls steadily available at the same time, the Dinstar UC2000-VE-8G-B Nigeria is a must have device for manipulation rules and flexible dial rules.
Instant SMS transmission from any of the channels is possible, but the device chooses the fastest one for effective communication. It uses USSD and open API for the SMS transmission. With BCCH and carrier selection options, the device is capable in providing the utmost flexibility. To top it off, there is also pin code management facilities available in the device. Management of remote SIM card enables the Dinstar UC2000-VE-8G-B Nigeria to function smoothly without the need to dismantling.
Key Features :
- 4 or 8 GSM/CDMA/WCDMA Channels supported on UC2000-VE
- Support to different mobile networks :
- GSM : 850/900/1800/1900MHz;
- CDMA : 800MHz; WCDMA : 850/900/1900/2100MHz
- HTTP API for SMS Application Integration
- SMS to Email and Email to SMS
- Flexible Dial Rules and Manipulation Rules
Technical Specifications
Voice Processing
- Protocol : SIP v2.0, RFC3261
- Codecs : G.711A/U law, G.723.1, G.729A/B
- Silence Suppression
- Comfort Noise Generator(CNG)
- Voice Activity Detection(VAD)
- Echo Cancellation : G.168 with up to 128ms
- Dynamic Jitter Buffer
- DTMF : RFC2833, SIP Info
- Call Progress Tone Generation
- Programmable Gain Control
- NAT : STUN, Dynamic NAT, Static NAT
Mobile
- SIM Interface : 1.8v, 3.0v SIM Interface
- Frequency Range :
- GSM : 850/900/1800/1900MHz;
- CDMA : 800MHz
- WCDMA : 850/900/1900/2100MHz
- USSD Encoding : Unicode/ASCII
- HTTP API for SMS
- Polarity Reversal
- PIN Modify
- CID/CLIR
- SMS Send and Receive
- SMS to Email
- Call Waiting/Call Back
- Call Forward
- GSM Audio Coding : HR, FR,EFR, AMR_FR,AMR_HR
Software Features
- Calling Type :
- Mobile to VoIP, VoIP to Mobile
- SIP Trunk and Trunk Group
- Caller/Called Number Manipulation Rules
- SIP Codes Mapping
- White/Black List
- PSTN Hotline
- VoIP Hotline
- Abnormal Call Monitor
- Call Minutes Limitation for Ports/Single Call
- Balance Check
- Low Balance Alarm
- Auto Update SIM Number
- Random Call Interval
- Auto CLIP
- Signaling & RTP Encryption
- SMPP for SMS
Network
- Static IP, DHCP Client, PPPoE
- Network Protocols :
- TCP/UDP,TFTP, FTP, RTP/ RTCP, SSH,ARP,RARP,ICMP Ping, NTP, HTTP, DNS
- Static/Dynamic ARP Request
- PPTP VPN
Maintenance
- Web/Telnet Configuration
- Configure Backup/Restore
- Firmware Upgrade by HTTP/TFTP
- Factory Reset
- CDR (10000 Lines CDRs Storage Locally)
- Syslog/Filelog
- Ping and Tracert
- Traffic statistics : TCP,UDP,RTP
- VoIP Call Statistics
- PSTN Call statistics : ASR,ACD,PDD
- Voice Diagnose with Loopback
- GSM Network Test
- IVR Customization
- Auto Provisioning
- SIP/RTP/PCM Capture

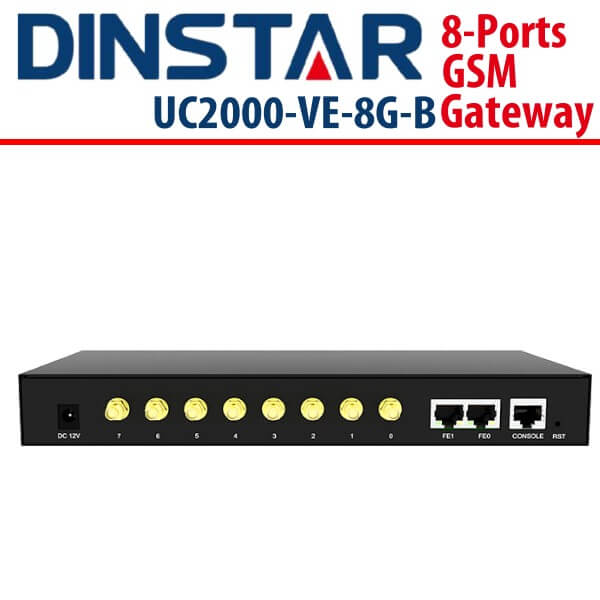

Physical Interface
- Mobile : 4/8 Channels
- Antennas Connectors : SMA
- Ethernet Interfaces : 2*10/100 Base-T, RJ45
- LED Indicators : Power, RUN, Signal Strength Indicators
- Console : 1* RS232 115200bps
Environmental
- Power Supply
- Input : 100-240V,50-60Hz
- Output : DC12V 4.0A
- Power Consumption :
- UC2000-VE-4G : 20w
- UC2000-VE-8G : 25w
- Temperature(Operation) : 0 ℃ ~ 45 ℃(Storage) : -20 ℃ ~80 ℃
- Operation Humidity : 10%-90% No Condensation
- Dimension(W/D/H) : 250*156*32.5mm
- Weight : 1.069kg
- Package Weight : 2.05kg
