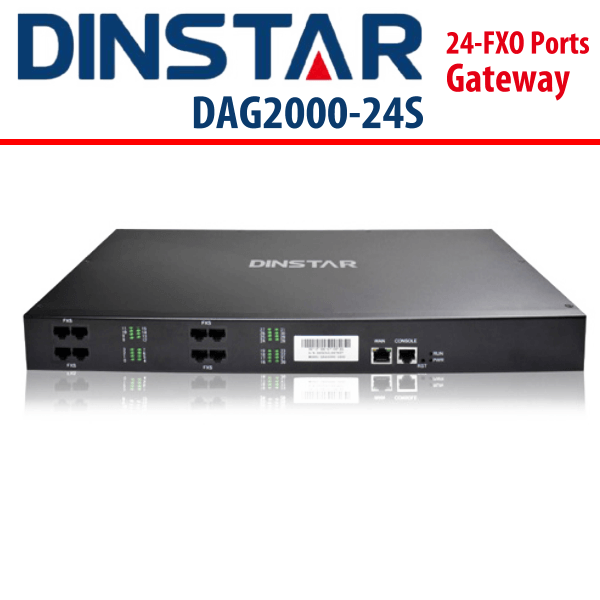

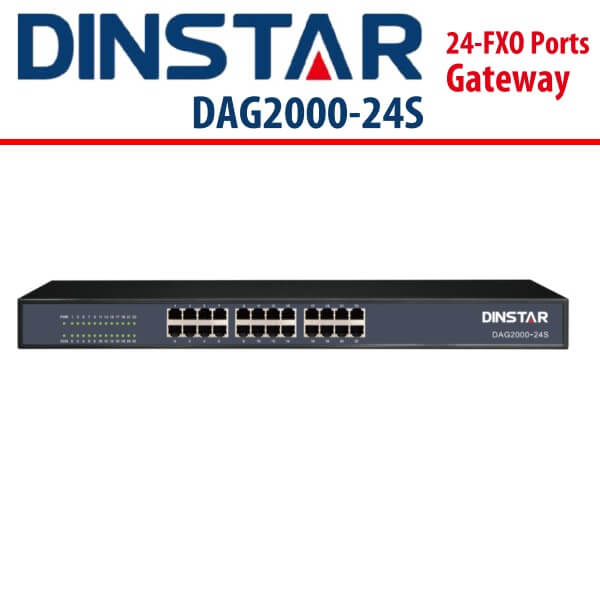

Dinstar DAG2000-24S 24 Port FXS Gateway Nigeria
The Dinstar DAG2000-24S Nigeria is a multi-functional analog gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems. With the standard RJ11 and RJ21 interfaces, the device offers maximum 24 FXS ports. Dinstar DAG2000-24S Nigeria provides the standard SIP protocol and is compatible with leading IMS/NGN platforms and SIP-based IP telephony systems. It is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.
Features :
- Analog VoIP gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems.
- With the standard RJ11 and RJ21 interfaces, the device offers maximum 24 FXS ports.
- Dinstar DAG2000-24S Nigeria provides the standard SIP protocol and is compatible with leading IMS/NGN platforms and SIP-based IP Phone systems.
- Dinstar DAG2000-24S Nigeria is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.
- Cost-effective VoIP adapter with 24 FXS ports
- Dinstar DAG2000-24S Nigeria supports legacy telephones, fax machines and POS terminals
- Fax over IP (T.38 and Pass-Through)
- Support TR069, SNMP protocol and DMCloud to manage devices remotely
Technical Specifications
Physical Interfaces
- Phone Interface : 24FXS,4*RJ-45
- Ethernet Interface : 4* RJ-45 10/100Mbps, RJ-45
Voice & Fax
- G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR
- Comfort Noise Generation(CNG)
- Voice Activity Detection(VAD)
- Echo Cancellation(G.168)
- Adaptive (Dynamic) Jitter Buffer
- Hook Flash
- Programmable Gain Control
- T.38/Pass-through, up to 14.4kbps
- Modem/POS
- DTMF mode : Signal/RFC2833/INBAND
FXS Port
- Connector : RJ45
- Dial Mode : DTMF and Pulse
- Pulse : 10 and 20 PPS
- Caller ID : DTMF/FSK
- Max Cable Length : 5KM
- Reversed Polarity
Protocol
- SIP V2.0 (RFC 3261,3262,3264)
- IMS/3GPP
- SDP (RFC 2327)
- REFER (RFC 3515)
- RTP/RTCP (RFC 1889,1890)
- STUN (RFC 3489)
- ARP/RARP (RFC 826/903)
- SNTP (RFC 2030)
- DHCP/PPPoE
- TFTP/HTTP/HTTPS
- DNS/DNS SRV (RFC 1706/RFC 2782)
- VLAN 802.1P/802.1Q
Supplement Service
- Call Waiting
- Blind Transfer
- Attend Transfer
- Call Pickup
- Call Forward on Busy
- Call Forward on No Reply
- Unconditional Call Forward
- Hotline
- Call Hold
- DND
- 3-way conference
- Voicemail
Call & Route
- Port Group
- IP Trunk
- Primary and Secondary SIP Account
- 32 Inbound/Outbound Routing
- Number Manipulation
- Digitmap
Network Features
- Static IP, PPPoE, DHCP Client
- IPv4, IPv6
- Static/dynamic ARP
- Traffic Shaping
- Voice/Data/Management VLAN
- DIFFServ, ToS
Maintain & Upgrade
- SNMP/TR069
- Auto Provisioning
- Web/Telnet
- Configuration Backup/Restore
- Firmware Upgrade via WEB/TFTP
- Syslog and CDR
- Access Rule List
- Network Capture
- Outward Test(GR909)
- Automatic Time Synchronization
- IVR local Maintenance
- Cloud-based Management
Environment
- Power Supply : 100-240V,50-60Hz
- Power Consumption :
- 24FXS : 40W; 32FXS : 45W
- Temperature
- Operation : -10 °C ~ 45 °C
- Storage : -20 °C ~ 80 °C
- Humidity : 10% – 90% No condensation
Dimension & Weight
- 24FXS : 440(L) × 230(W) × 44(H)mm 3.0kg
