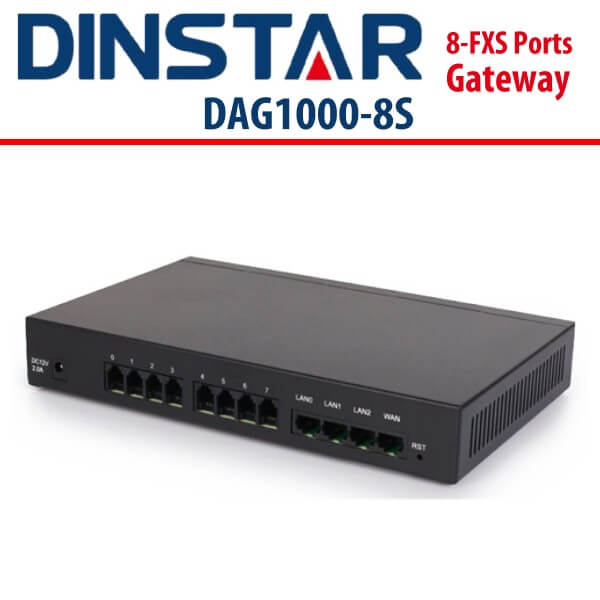

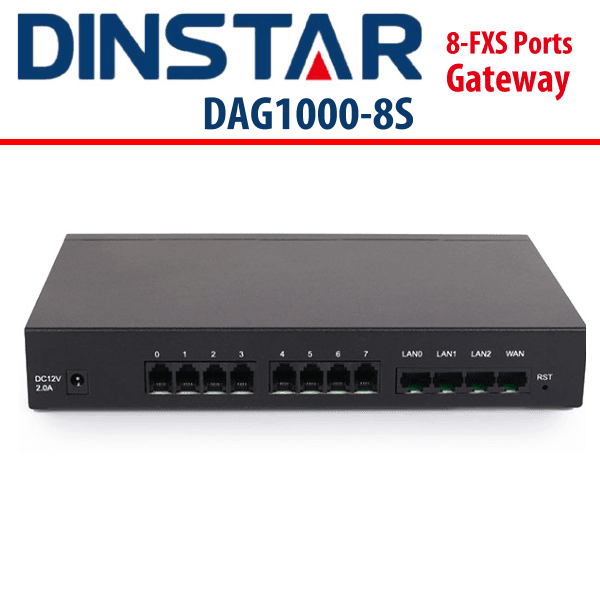

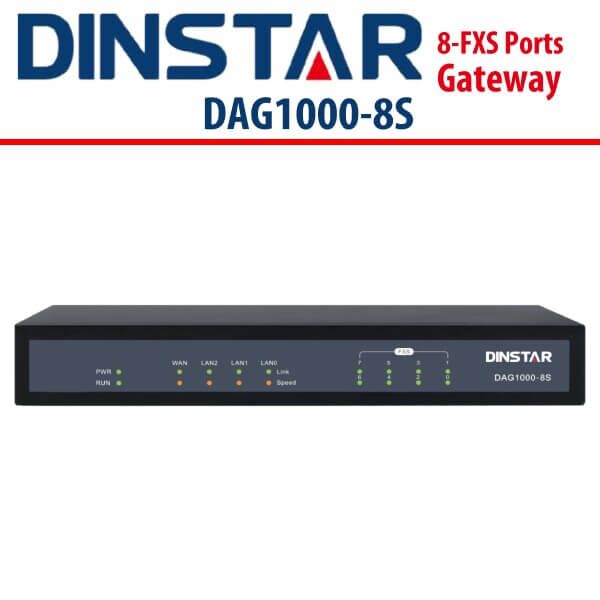

Dinstar DAG1000-8S 8-Port FXS Gateway Nigeria

Dinstar DAG1000-8S Nigeria is a multi-functional Analog VoIP Gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems. The device offers 8 FXS ports, fax over IP and flexible dial plans. It is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.

For small business, the family office, remote office and branch business provide a low cost, simple operation VoIP solutions. Connected analog phone, fax, PBX with standard voice interface and provide quality voice service. Dinstar DAG1000-8S Nigeria VoIP access gateway uses standard SIP protocol and compatible with Leading IMS/NGN platform, IPPBX and SIP servers.

Features :

Support SIP/MGCP
Primary/Backup SIP Servers
Flexible Routing and Manipulation
Support Modem/POS
Elastix/Broadsoft Certification
Support IPv4 and IPv6
Data/ Voice/ Management VLAN
Build-in Firewall and Access Rules
SNMP/TR069/Provision
Cloud-based Management System and Bandwidth Optimization

Technical Specifications

Physical Interfaces

Phone Interface : 8FXS, RJ-11
Ethernet Interface : 4* RJ-45 10/100Mbps, RJ-45

Voice & Fax

G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR
Comfort Noise Generation(CNG)
Voice Activity Detection(VAD)
Echo Cancellation(G.168)
Adaptive (Dynamic) Jitter Buffer
Hook Flash
Programmable Gain Control
T.38/Pass-through, up to 14.4kbps
Modem/POS
DTMF mode : Signal/RFC2833/INBAND

FXS Port

Connector : RJ11
Dial Mode : DTMF and Pulse
Pulse : 10 and 20 PPS
Caller ID : DTMF/FSK
Max Cable Length : 5KM
Reversed Polarity

Protocol

SIP V2.0 (RFC 3261,3262,3264)
IMS/3GPP
SDP (RFC 2327)
REFER (RFC 3515)
RTP/RTCP (RFC 1889,1890)
STUN (RFC 3489)
ARP/RARP (RFC 826/903)
SNTP (RFC 2030)
DHCP/PPPoE
TFTP/HTTP/HTTPS
DNS/DNS SRV (RFC 1706/RFC 2782)
VLAN 802.1P/802.1Q

Supplement Service

Call Waiting
Blind Transfer
Attend Transfer
Call Pickup
Call Forward on Busy
Call Forward on No Reply
Unconditional Call Forward
Hotline
Call Hold
DND
3-way conference
Voicemail

Call & Route

Port Group
IP Trunk
Primary and Secondary SIP Account
32 Inbound/Outbound Routing
Number Manipulation
Digitmap

Network Features

NAT (Rout and Bridge)
Static IP, PPPoE, DHCP Client
DHCP Server
MAC Address Clone
DMZ, Static routing
Built-in Firewall
Static/dynamic ARP
QoS, Traffic Shaping
Voice/Data/Management Vlan

Maintain & Upgrade

SNMP/TR069
Auto Provisioning
Web/Telnet
Configuration Backup/Restore
Firmware Upgrade via WEB/TFTP
Syslog and CDR
Access Rule List
Network Capture
Outward Test(GR909)
Automatic Time Synchronization
IVR local Maintenance
Cloud-based Management

Environment

Power Supply : 100 – 240V, 50-60Hz
- Output : 12VDC,2A
Power Consumption : 18W
Temperature :
- (Operation) : -10 ? ~ 45 ?
- (Storage) : -20 ? ~80 ?
Humidity : 10% – 90% No condensation

Dimension & Weight

240(L)×154(W)×37(H)mm 1kg

Homologation

CE,FCC
Elastix / Broadsoft
