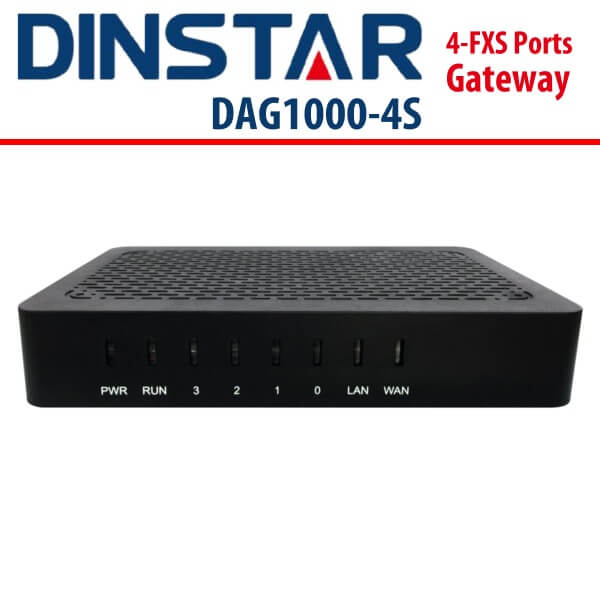

Dinstar DAG1000-4S Nigeria

Rating

Dinstar DAG1000-4S Nigeria

The Dinstar DAG1000-4S Nigeria is an active analog telephone adapter that provides unconnected connections between IP-based telephony networks and legacy (POTS) networks, fax machines and PBX systems.

Category:

Description

Dinstar DAG1000-4S 4-Port FXS Gateway Nigeria

Dinstar DAG1000-4S Nigeria is a multi-functional analog telephone adapter which offers seamless connectivity between IP Telephony networks and legacy telephones (POTS), fax machines and PBX systems. With standard SIP protocol, it’s compatible with leading IMS/NGN platforms and SIP-based IP Telephony systems. It provides 4 FXS ports, fax over IP and flexible dial plans. Offering high-quality and reliable voice-over-IP service, the device is ideal for call centers, small and medium enterprises, SOHO and residential users.

The Dinstar DAG1000-4S Nigeria is an active analog telephone adapter that provides unconnected connections between IP-based telephony networks and legacy (POTS) networks, fax machines and PBX systems. With the standard SIP protocol, it is compatible with leading IMS / NGN platforms and IP systems designed for IP telephony. It offers 4 FXS ports, IP fax and flexible dialing systems. Providing a high-quality and reliable voice over-IP service, this device is suitable for call centers, small and medium enterprises, SoHO and residential users.
A multi-function analog telephone adapter that provides seamless communication between IP-based telephony networks and legacy (POTS) networks, fax machines and PBX systems.
The device offers 4xFXS (RJ11), 1xWAN 10 / 100Mbps (RJ45) and 1xLAN 10 / 100Mbps (RJ45) ports
Pressure Silence, Comfort Noise Generator (CNG) and Voice Activity Detection (VAD) Call Waiting and Calling, Call Transfer (Unconditional / Busy / Unanswered) and Call Transfer (Blind and Visited) Cloud-based management.

Features :

  • Support SIP/MGCP
  • Primary/Backup SIP Servers
  • Flexible Routing and Manipulation
  • Support Modem/POS
  • Elastix/Broadsoft Certification
  • Support IPv4 and IPv6
  • Data/ Voice/ Management VLAN
  • Build-in Firewall and Access Rules
  • SNMP/TR069/Provision
  • Cloud-based Management System and Bandwidth Optimization

Technical Specifications :

Physical Interfaces

  • Phone Interface : 4FXS, 8FXS, RJ-11
  • Ethernet Interface :  4* RJ-45 10/100Mbps, RJ-45

Voice & Fax

  • G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR
  • Comfort Noise Generation(CNG)
  • Voice Activity Detection(VAD)
  • Echo Cancellation(G.168)
  • Adaptive (Dynamic) Jitter Buffer
  • Hook Flash
  • Programmable Gain Control
  • T.38/Pass-through, up to 14.4kbps
  • Modem/POS
  • DTMF mode : Signal/RFC2833/INBAND

FXS Port

  • Connector : RJ11
  • Dial Mode : DTMF and Pulse
  • Pulse : 10 and 20 PPS
  • Caller ID : DTMF/FSK
  • Max Cable Length : 5KM
  • Reversed Polarity

Protocol

  • TLS / SRTP
  • SIP V2.0 (RFC 3261,3262,3264)
  • IMS/3GPP
  • SDP (RFC 2327)
  • REFER (RFC 3515)
  • RTP/RTCP (RFC 1889,1890)
  • STUN (RFC 3489)
  • ARP/RARP (RFC 826/903)
  • SNTP (RFC 2030)
  • DHCP/PPPoE
  • TFTP/HTTP/HTTPS
  • DNS/DNS SRV (RFC 1706/RFC 2782)
  • VLAN 802.1P/802.1Q
Supplement Service
  • Call Waiting
  • Blind  Transfer
  • Attend Transfer
  • Call Pickup
  • Call Forward on Busy
  • Call Forward on No Reply
  • Unconditional Call Forward
  • Hotline
  • Call Hold
  • DND
  • 3-way conference
  • Voicemail
Call & Route
  • Port Group
  • IP Trunk
  • Primary and Secondary SIP Account
  • 32 Inbound/Outbound Routing
  • Number Manipulation
  • Digitmap

Network Features

  • NAT (Rout and Bridge)
  • Static IP, PPPoE, DHCP Client
  • DHCP Server
  • MAC Address Clone
  • DMZ, Static routing
  • Built-in Firewall
  • Static/dynamic ARP
  • QoS, Traffic Shaping
  • Voice/Data/Management Vlan

Maintain & Upgrade

  • SNMP/TR069
  • Auto Provisioning
  • Web/Telnet
  • Configuration Backup/Restore
  • Firmware Upgrade via WEB/TFTP
  • Syslog and CDR
  • Access Rule List
  • Network Capture
  • Outward Test(GR909)
  • Automatic Time Synchronization
  • IVR local Maintenance
  • Cloud-based Management
Environment
  • Power Supply : 100-240V,50-60Hz
  • Output : 12VDC,2A
  • Power Consumption :   18W
  • Temperature(Operation) : -10 ℃  ~ 45 ℃ (Storage) :   -20 ℃ ~80 ℃
  • Humidity : 10%-90%  No condensation

Dimension & Weight

240(L)×154(W)×37(H)mm 1kg

Homologation

  • CE,FCC
  • Elastix  / Broadsoft
