Description

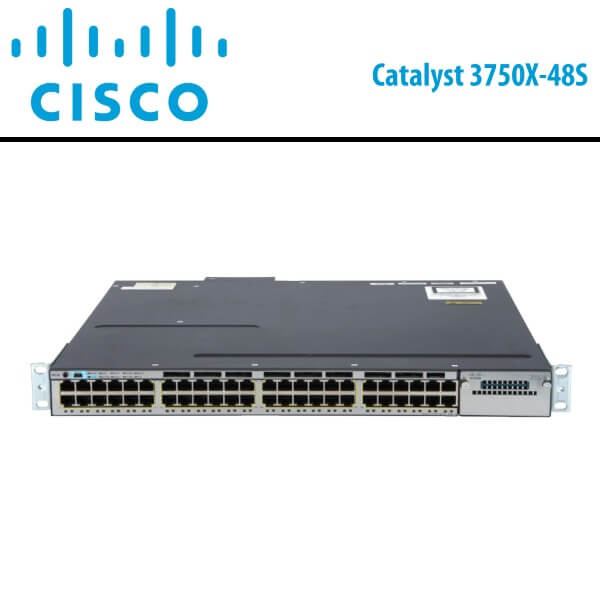

Cisco Catalyst3750X-48S Network Switch Nigeria
The Cisco Catalyst3750X-48S Nigeria switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco StackPower, IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features. Cisco Catalyst 3750-X Series with StackWise Plus technology provides scalability, ease of management and investment protection for the evolving business needs. The Cisco Catalyst3750X-48S Nigeria switches enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.
Cisco Catalyst3750X-48S Nigeria switches help maximize productivity by giving IT managers the tools needed to support enterprise applications and advanced traffic management. With an array of network modules and redundant power supply options available, these switches can be customized and scaled to support nearly any application. Additional options for the Cisco Catalyst3750X-48S Nigeria include Gigabit and 10GE uplink ports, PoE+ and non-PoE support, redundant fans and an array of port densities allow the devices to be tailored and customized. Standard features include StackPower power sharing and StackWise Plus logical port aggregation (64Gbps of through put). Software upgrades include multicast routing, IPv4 and IPv6 support and advanced QoS (Quality of Service). Hardware security, Cisco Energywise power management and type A and B USB interfaces are also standard. These feature rich, fixed configuration devices are the switch of choice for medium to enterprise business looking to maximize IT budgets while maintaining rich functionality and a borderless experience.
Features
- Dynamic Host Configuration Protocol (DHCP)
- Auto-negotiation
- Dynamic Trunking Protocol (DTP)
- Port Aggeration Protocol (PAgP)
- Link Aggeration Protocol (LACP)
- Automatic Media-Department Interface Crossover (MDIX)
- Switching Database Manager
- Local Proxy Address Resolution Protocol (ARP)
- Multicast VLAN Registration (MVR)
- Unidirectional Link Detection Protocol (UDLD)
- VLAN1 Minimization
- Smart Multicast
- Internet Group Management Protocol (IGMP)
- Voice VLAN
- Cisco VLAN Trunking Protocol (VTP)
- Layer 2 Trace Route
- Trivial File Transfer Protocol (TFTP)
- Network Timing PRotocol (NTP)
- Private VLANs
- Access Control Lists (ACL’s)
- Secure Shell (SSH) Protocol
- MAC Address Notification
- Bridge Protocol Data Unit (BPDU)
- IGMP Filtering
- Cross-Stack EtherChannel
- IEEE 801.1s/w Rapid Spanning Tree Protocol (RSTP)
- Cisco Hot Standby Router Protocol (HSRP)
- Cross-stack QoS
- 802.1p Class of Service
Technical Specs
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3750X-48P-S |
| Product Type | Managed, Stackable 48 ports L3 Switch |
| Form Factor | Fixed, Rack Mountable 1U, Stackable/Clustering |
| Switch Port density – Uplinks | 48 x 10/100/1000 Ethernet Ports |
| Power Over Ethernet (PoE) | Yes |
| Max Number of Stacks | 9 |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at |
| DRAM Memory | 256 MB |
| Flash Memory | 128 MB Flash |
| LED Status Lights Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
| Connectivity / Expansion Slots | |
|---|---|
| Interfaces |
|
| Expansion Slot(s) | 1 (total) / 1 (free) x Expansion Slot |
| Power Supply Specifications | |
| Power Device | Power supply – redundant – plug-in module |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous | |
| Width | 44.5 cm |
| Depth | 46 cm |
| Height | 4.5 cm |
| Weight | 7.5 kg |
| Rack Mounting Kit | Optional |
| MTBF | 139,913 hour(s) |
| Compliant Standards | CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1 |
| System Software | |
| Software Included | Cisco IOS IP Base |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Service & Support Details |
|
