Description

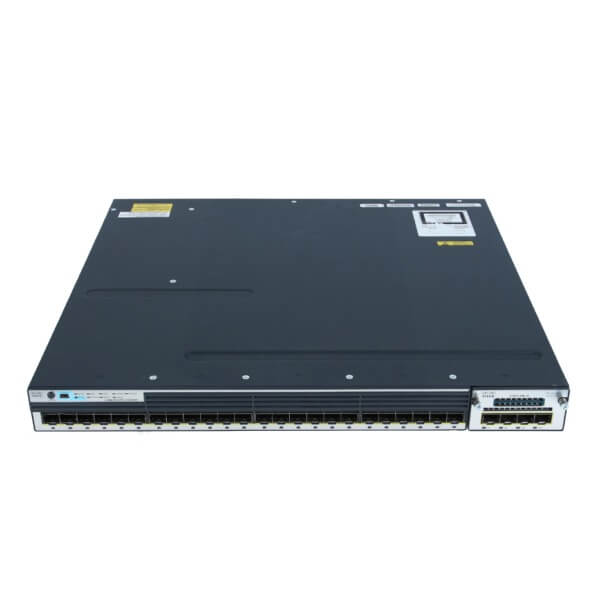

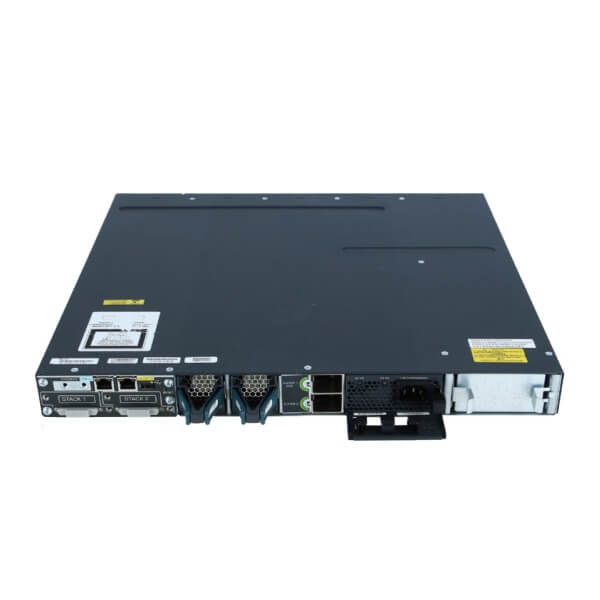

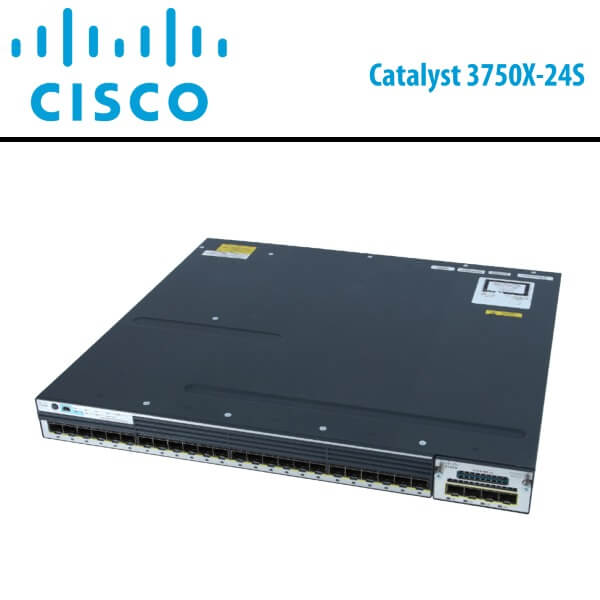

Cisco Catalyst3750X-24S Network Switch Nigeria

The Cisco Catalyst 3750-X Series Switches are enterprise-class lines of stackable switches.  Cisco Catalyst3750X-24S Nigeria switches provide high availability, scalability, security, energy efficiency, and ease of operation. The switch provides 24 SFP fiber port for your local network. WS-3750X-24S-S stackable switch provide alternative solution with lower the cost for those who require lot of fiber connections, such as centralizing uplink connections, CCTV or server virtualization using fiber connections. By using the stack cable interconnect with multiple switches to active stacking feature — such the multiple switches act as single switching system to manage – which simplify the network management and troubleshoot.

The Cisco Catalyst3750X-24S Nigeria also support power stack by using StackPower technology. Stackpower is the industry first innovative technology for power sharing. Stackpower aggregate the power supplies in the power stack and manage the power like single large power pool when you stack the switches and feeds the single load the power stack members. That is stack power allocate the power to the switches and ports and managed the steam for load sharing in case of the power sharing. To stack power the stacking power cable is required.

Features

• Stackable 24 GE SFP ports
• Four optional uplink network modules with GE or 10GE ports1 rack unit (RU) form factor
• IP Services
• Dual redundant, modular power supplies and fans
• Media Access Control Security (MACsec) hardware-based encryption
• Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink
• USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port

Technical Specs

General Information

• Manufacturer : Cisco
• Product ID :WS-C3750X-24S-S
• Product Description : Cisco Catalyst 3750X 24 Port GE SFP IP Base
• Product Type : Layer 3 Switch

Interfaces/Ports

• Token Ring Port : No
• LRE Port : No
• USB :Yes
• Number of Stack Ports :2Stack Port : Yes

Media & Performance

Network Technology :10/100Base-TX

I/O Expansions

• Number of Total Expansion Slots :25Expansion Slot Type : SFP
• Number of SFP Slots :24

Network & Communication

Layer Supported :3

Management & Protocols

Manageable : Yes

Management :

• QoS
• VLAN
• Embedded Event Manager
• Command-line interface
• SNMPv1, v2c,v3
• DHCP
• Telnet
• RMON
• Syslog
• CiscoWorks LAN Management Solution

Memory

• Standard Memory :256 MB
• Memory Technology : DRAM
• Flash Memory :512 MB

Power Description

• PoE Port : No Input
• Voltage :110 V AC 220 V AC
• Power Source : Power Supply
• Redundant Power Supply : Yes

Physical Characteristics

• Compatible Rack Unit :1U
• Form Factor : Rack-mountable
• Desktop Height :1.8″ Width :17.5″Depth :18.0″ Weight (Approximate) :15.43 lb
