Description

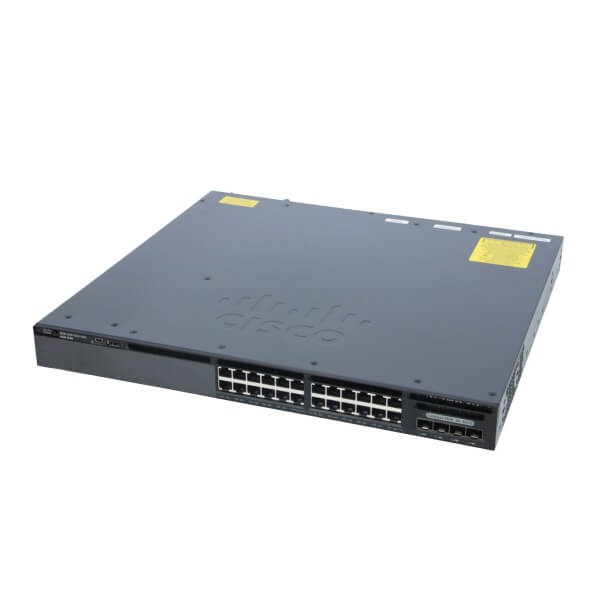

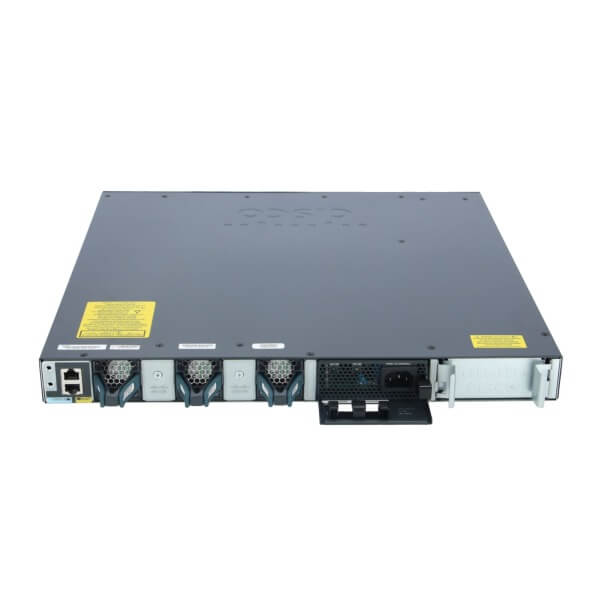

Cisco Catalyst3650-24L Network Switch Nigeria
The Cisco Catalyst 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst3650-24L Nigeria is built on the advanced Cisco StackWise-160, and takes advantage of the new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
The Cisco Catalyst3650-24L Nigeria Cisco StackWise-160 technology is built on the highly successful industry-leading StackWise technology, which is a premium stacking architecture. StackWise-160 has a stack bandwidth of 160Gbps. StackWise-160 uses Cisco IOS Software SSO for providing resiliency within the stack.
The Cisco Catalyst3650-24L Nigeria switch is a layer switch that allows for full wired and wireless junction on a single multilayer switch platform. The 3650 series was designed to work hand in hand with the Cisco StackWise-160 technology. StackWise-160 gives the user the needed expandability when they want it and also lowers the initial cost of ownership when compared to other switches. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. The Cisco Catalyst3650-24L Nigeria switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 160 Gbps.
Features
- Cisco Catalyst3650-24L Nigeria is integrated wireless controller capability with :
- Up to 40G of wireless capacity per switch (48-port models)
- Support for up to 25 access points and 1000 wireless clients on each switching entity (switch or stack)
- 24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports
- Three fixed-uplink models with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, or 4 x 10 Gigabit Ethernet ports
- Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack throughput
- Dual redundant, modular power supplies and three modular fans providing redundancy
- Full IEEE 802.3at (PoE+) with 30 W power on all ports in 1 rack unit (RU) form factor
- Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF) Version 9, and enhanced security features
- Single universal Cisco IOS Software image across all license levels, providing an easy upgrade path for software features
- Enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support
Technical Specs
| Model | WS-C3650-24PS-L |
|---|---|
| Availability | |
| Warranty | Lifetime Warranty |
| Condition | Refurbished |
| Weight | 13.27 lbs |
| Port Quantity | 24 |
| Series | Catalyst 3650 |
| Rack Units | 1RU |
| Software | LAN Base |
| OSI Layer | L2 |
| Stacking | Optional Stacking |
| Deployment Pack | No |
| Hot Swappable Modules | No |
| Hot Swappable Fans | Yes |
| Hot Swappable Power Supply | Yes |
| Energy Efficient | Yes |
| PoE Compatibility | PoE+ |
| Port Speed | 10/100/1000 |
| Ram | 4 GB |
| Model | WS-C3650-24PS-L |
| Group By | Condition |
| Flash | 2 GB |
| Ports | 24 10/100/1000 + 4x1G SFP |
| Min Operating Temp | 23° F |
| Max Operating Temp | 113°F |
| Warranty | Lifetime |
| Switching Bandwidth | – |
| Jumbo Frame Support | 9,018 bytes |
| Predicted Reliability | 528,280 hours |
| Mac Addresses | 32K |
| Vlan Ids | 4K |
| Min Storage Temp | -40°F |
| Max Storage Temp | 158ºF |
| Operating Humidity | 5 – 90% (non-condensing) |
| Storage Humidity | 5 – 95% (non-condensing) |
| Ac Input Voltage | 100 to 240 VAC |
| Fans | Internal |
| Stacking Bandwidth | 160 Gbps |
| Unicast Routes | 24K |
| Acoustic Noise | – |
| Available PoE Power | 390W |
| Forwarding Rate Based On 64-Byte Packets | 41.66 mpps |
| Max Routed Ports Per 3850 Stack | 208 |
| Power Specifications | 100-240VAC, 50-60Hz, 8-4A |
| Operating Temp | 23°F to 113°F |
| Storage Temp | -40 to 158°F (-40 to 70°C) |
| Uplink Interfaces | 4 x SFP |
| Max Active VLANS | – |
| Switched Virtual Interfaces (SVI’s) | 1000 |
| Brand | Cisco |
| Total Multi-Gigabit Ethernet Ports | – |
| Jumb Frame Support | 1 |
| Total_system_ports | 28 |
| Total System Ports | 28 |
| Max Routed Ports | 208 |
| Product Depth | 19.125 in |
| Product Height | 1.73 in |
| Number Of Ports _x000D_ That Support PoE | 24 |
| Number Of Ports That Support PoE | 24 |
| Product Width | 17.5 in |
