Description

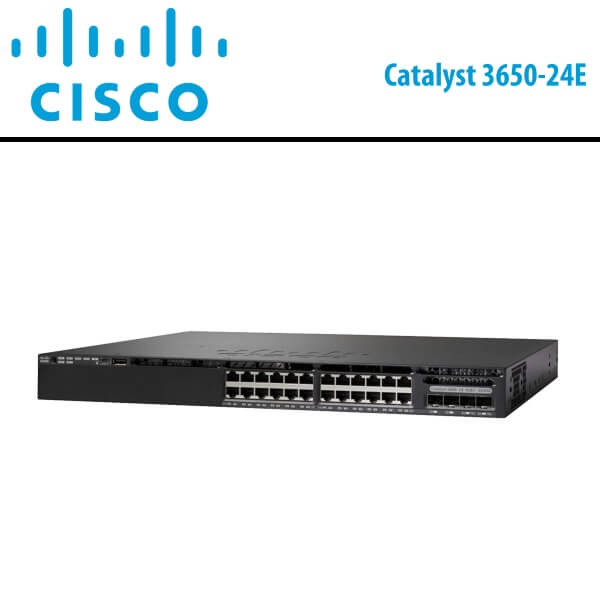

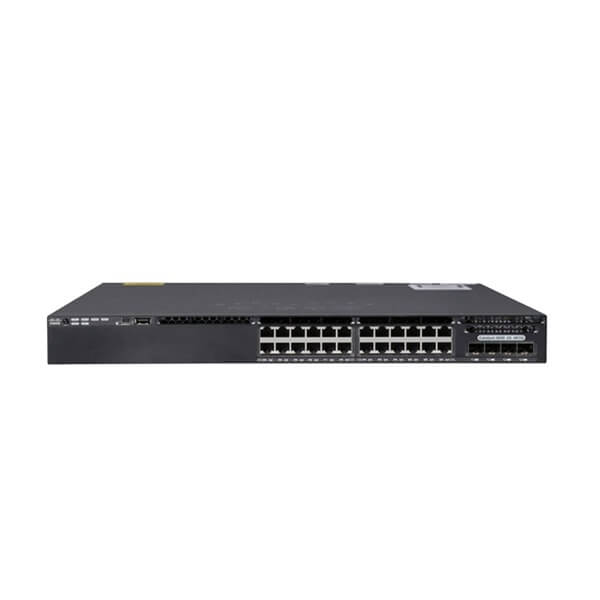

Cisco Catalyst3650-24E Network Switch Nigeria
The Cisco Catalyst3650-24E Nigeria is the next generation of enterprise-level standalone switch with stacking option for access-layer and distribution-layer design. WS-C3650-24PS-E integrates 24 Gigabit Ethernet POE+ ports and 4 fixed 1G SFP uplink ports in IP service feature set which enables advanced layer 3 routing performance with superior QoS capabilities.
The Cisco Catalyst3650-24E Nigeria is the enterprise-class standalone and stackable access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise-160, and takes advantage of the Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The switch supports full IEEE 802.3at Power over Ethernet Plus (PoE+), and offers modular and field-replaceable redundant fans and power supplies. It can help you increase wireless productivity and reduce your TCO.
Quick Features :
- ETHERNET PORT CONFIGURATION : 48 10/100/1000 Gigabit Ethernet (GbE) PoE+ ports; 4 1G uplinks
- SOFTWARE : LAN base feature set
- ADVANCED SECURITY : The Cisco Catalyst3650-24E Nigeria is the enterprise-class standalone and stackable access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. TIEEE 802.1x, DHCP (Dynamic Host Configuration Protocol) snooping, IP Source Guard and control plane protection, and WIPSs (wireless intrusion prevention systems)
- COMPACT : Reduced depth of 11.62 inches for shallow-depth cabinets
Technical Details
| Product Code | WS-C3650-24PS-E |
| Enclosure Type | Rack-mountable – 1U |
| Feature Set | IP Service |
| Uplink Interfaces | 4 x 1G SFP |
| Ports | 24 x 10/100/1000 (POE+) |
| Available PoE Power | 390w |
| Maximum stacking number | 9 |
| Stack bandwidth | 88Gbps |
| Forwarding Performance | 41.66Mpps |
| Switching Capacity | 88Gbps |
| RAM | 4 GB |
| Flash Memory | 2 GB |
| Dimensions | 44.5 cm x 44.5 cm x 4.4 cm |
