Cisco Catalyst3560X-24L Nigeria

Cisco Catalyst3560X-24L Nigeria supports IEEE802.3at standard to allocate up to 30W power on each port in total 435W POE budget to power up IP phones, wireless and video.

Category:

Description

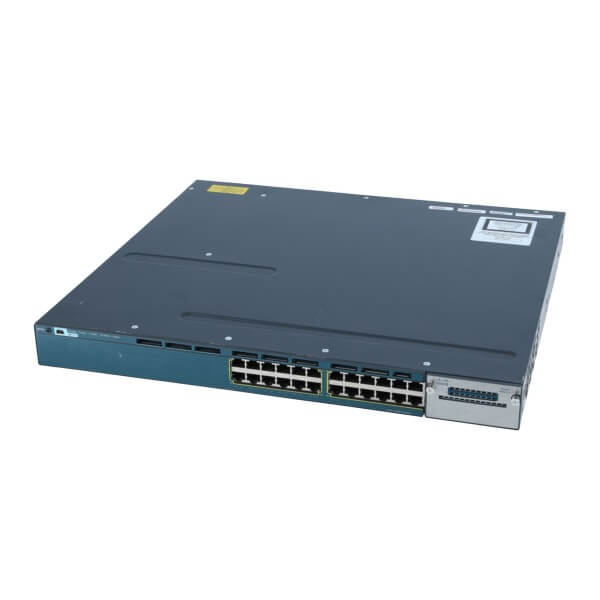

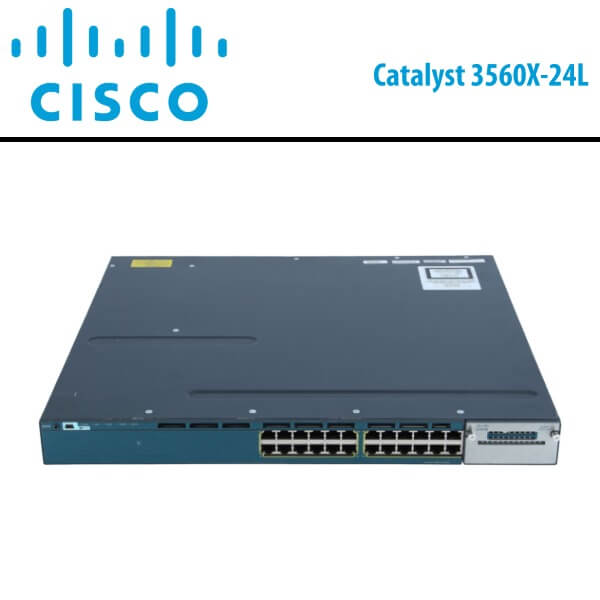

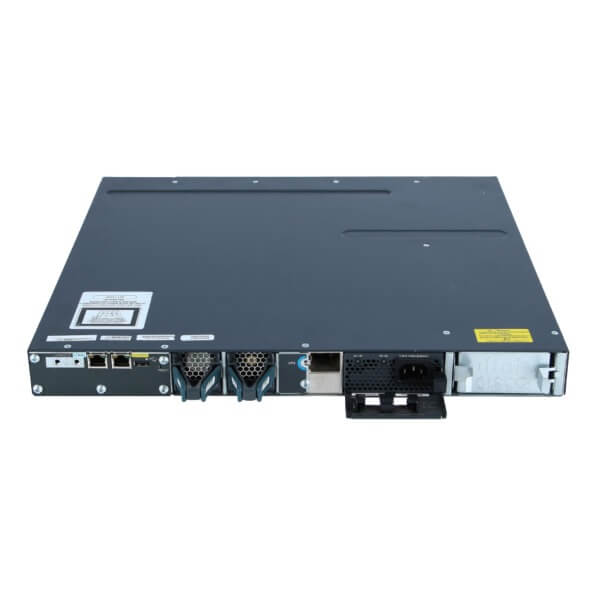

Cisco Catalyst3560X-24L Network Switch Nigeria

The Cisco Catalyst3560X-24L Nigeria is 24 Gigabit Ethernet POE+ ports standalone switch in LAN base feature set with no stacking option. Four optional network modules and license-base software feature provide flexibility, scalability and feature extensibility in order to reduce the cost of development of business needs. Cisco Catalyst3560X-24L Nigeria supports IEEE802.3at standard to allocate up to 30W power on each port in total 435W POE budget to power up IP phones, wireless and video; customers can specify the power setting on individual port in command line setting. LAN base feature set offers up to 255-Vlans and comprehensive layer 2 feature with static routing and SVI interface supporting.

The Cisco Catalyst3560X-24L Nigeria is designed for enterprise access layer switching; however, customers can transparently upgrade the software feature to by purchasing either IP base license or IP services license to activate layer 3 capability, 1005 VLans supporting. The C3560X24L comes with one default power supply module, customers can purchase additional power supply insert into power supply bay 2 in order to power redundancy.

Features

  • 24 * 10/100/1000 Gigabit Ethernet POE+ ports with optional uplink network modules
  • 435W POE power budget with up to 30W per port
  • Dual redundant, modular power supplies and fans
  • LAN base feature set with upgrade option to IP base or IP service
  • Layer 2 switching with static routing and SVI supporting64MB flash and 256 memory (DRAM)USB Type-A
  • Type-B ports for storage and console respectively and an out-of-band Ethernet management port

Technical Specs

Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C3560X-24P-L
Product Type Switch – 24 ports – Managed
Form Factor Rack mountable – 1U
Switch Ports 24 x 10/100/1000 Ethernet Ports Ethernet Ports
Power Over Ethernet (PoE) Yes
Performance Switching capacity : 160 Gbps
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Hot swap module replacement, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
DRAM Memory 256 MB
Flash Memory 64 MB Flash
Status Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
Connectivity Slots
Interfaces
  • 24 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE
  • USB : 1 x 4 PIN USB Type A
  • 1 x console – mini-USB Type B – management
  • 1 x RS-232 – RJ-45 – management
  • 1 x 10Base-T/100Base-TX – RJ-45 – management
Expansion Slots Total (Free) 1 ( 1 ) x Expansion Slot
