Description

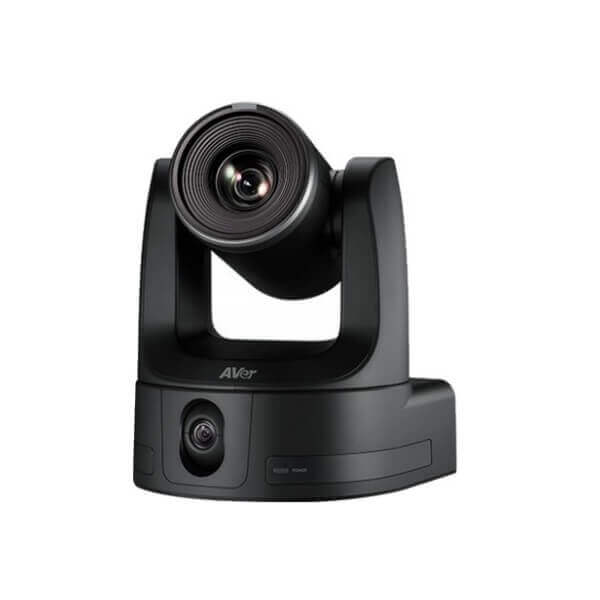

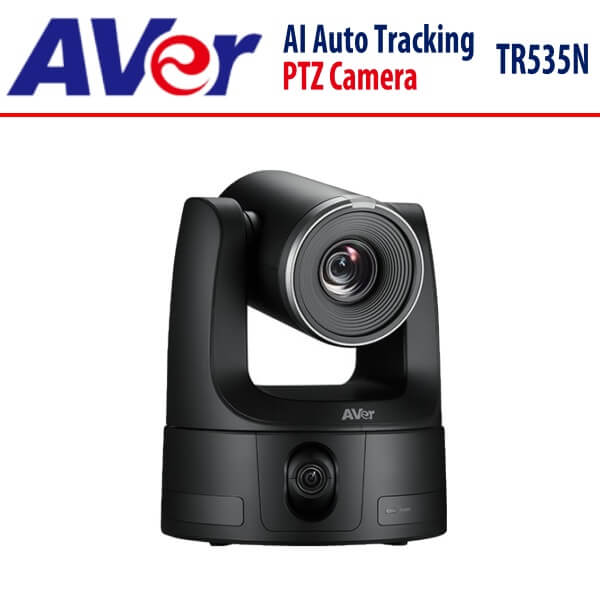

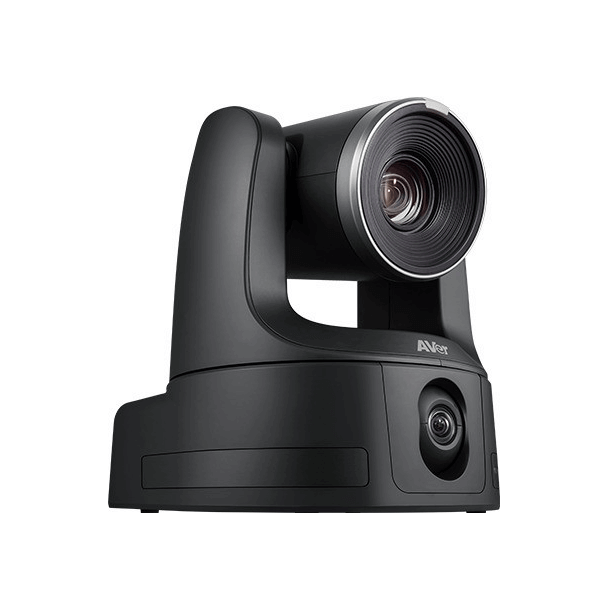

Aver TR535N Dual Lens Auto Tracking Camera Nigeria
Embrace the future of streaming with the Aver TR535N Nigeria, an innovative NDI® Dual Lens Auto Tracking Camera crafted to revolutionize your broadcasting, recording, and streaming endeavors. This state-of-the-art camera seamlessly merges full NDI® integration with advanced AI-powered auto tracking, setting a new standard for performance across a diverse range of applications. The Aver TR535N Nigeria boasts a formidable 30X zoom lens that captures every intricate detail with stunning clarity, while its wide-angle lens ensures comprehensive coverage of the entire scene, making it perfect for capturing dynamic environments in their entirety.
The dual-lens configuration facilitates smooth transitions between expansive wide shots and finely detailed close-ups, ensuring that no important moment is overlooked. Whether you’re live-streaming events, recording educational sessions, or delivering dynamic presentations, the TR535N’s four advanced AI tracking modes offer unparalleled precision and fluidity. Each mode is meticulously designed to adapt to various scenarios, providing you with exceptional versatility. With the Aver TR535N Nigeria, you’re not merely capturing video—you’re crafting an immersive, cutting-edge experience that seamlessly blends innovation, quality, and reliability.
Features
- NDI® High Bandwidth
- Dual Lens Design
- 4K Ultra HD Resolution
- 30X Optical Zoom
- IP/HDMI/USB/3G-SDI
- PiP Mode
- 4 Auto Tracking Modes
- Multi-Presenter Detection
- Voice Tracking
- 5-Year Warranty
Technical Specifications
PTZ Camera
- Image Sensor
- 1/2.8” 4K Sony Exmor CMOS
- Effective Picture Elements
- 8 Megapixels
- Output Resolutions
- 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
- Minimum Illumination
- 5 lux (IRE50, F1.6, 30fps)
- S/N Ratio
- ≥ 50 dB
- Gain
- Auto, Manual
- TV Lines
- 1600 (Center)
- Shutter Speed
- 1/1 to 1/10,000 sec
- Exposure Control
- Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
- White Balance
- Auto, Manual, ATW, One Push, Indoor, Outdoor
- Optical Zoom
- 30X
- Digital Zoom
- 1X
- Total Zoom
- 30X
- Viewing Angles
- DFOV: 69.2° (Wide) to 2.8° (Tele)
- HFOV: 62.3° (Wide) to 2.5° (Tele)
- VFOV: 37.3° (Wide) to 1.4° (Tele)
- Focal Length
- f = 4.5 mm (Wide) to 135 mm (Tele)
- Aperture (Iris)
- F = 1.8 (Wide) to 4.7 (Tele)
- Minimum Working Distance
- 1 m (Wide)
- 2 m (Tele)
- Pan / Tilt Angles
- Pan : ±170°
- Tilt : +90° / -30°
- Pan / Tilt Speed (Manual)
- Pan : 0.1° to 100° / sec
- Tilt : 0.1° to 100° / sec
- Preset Speed
- Pan : 200° / sec
- Tilt : 200° / sec
- Preset Positions
- 10 (IR)
- 256 (RS-232, RS-422, IP)
- Camera Control – Interfaces
- RS-232 (DIN8)
- RS-422 (RJ45)
- IP
- USB
- Camera Control – Protocols
- VISCA (RS-232 / RS-422 / IP)
- PELCO-D & PELCO-P (RS-232 / RS-422)
- CGI (IP)
- USB
- ONVIF
- Image Processing
- Noise Reduction (2D / 3D)
- Flip
- Mirror
- WDR
- BLC
- Power Frequencies
- 50 Hz, 60 Hz
Wide Angle Camera
- Image Sensor
- 1/2.8” 4K Sony Low Lux CMOS
- Effective Picture Elements
- 8 Megapixels
- Output Resolutions
- 4K/30
- Focal Length
- 22 mm
- White Balance
- Auto
- Exposure
- Auto
- Viewing Angles
- DFOV: 113°
- HFOV: 105°
- VFOV: 71°
- Pan / Tilt Angles
- Tilt: +18° / -90°
AI Auto Tracking Functions
- Tracking Modes
- Presenter Mode
- Zone Mode
- Hybrid Mode
- Segment Mode
Privacy Protection Mechanisms
- Protection Mode
- Sleep Mode
Audio
- Channels
- 2ch Stereo
- Codecs
- AAC-LC (48 K)
- Sample Rates
- 48 KHz

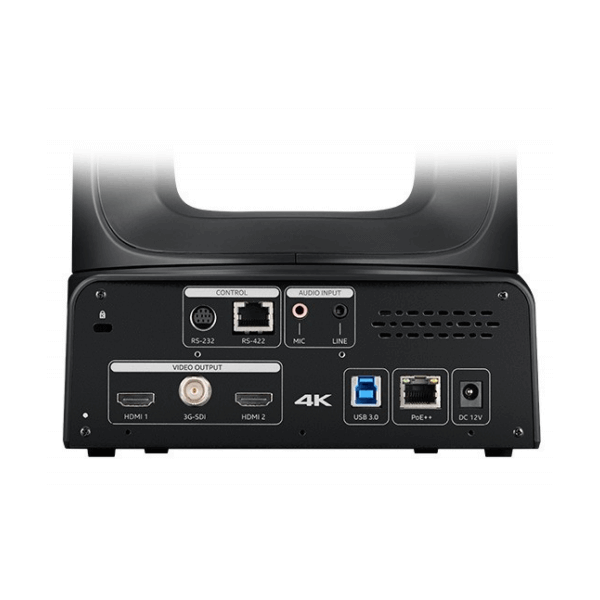

Interface
- Video Outputs
- 3G-SDI, HDMI x 2, IP, USB
- Audio Outputs
- 3G-SDI, HDMI x 2, IP, USB
- Audio Inputs
- MIC in, Line in
General
- Power Requirement
- AC 100 – 240V to DC 12V/5A
- Power Consumption
- 29W
- PoE
- PoE++
- Dimensions (W x H x D)
- 5 x 250.7 x 218.5 mm
- Net Weight
- 6 (±0.1) kg
- Application
- Indoor
- Tally Lamp
- Yes
- Security
- Kensington Slot
- Remote Control
- Infrared
- Operating Conditions
- Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
- Storage Conditions
- Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%
- Sustainability
- Plastic Material: ABS
- Sustainability Method: PCR-PC
- Recycled Content %: 30%
IP Streaming
- Resolution
- 4K 60fps
- Network Video Compress Formats
- 264, H.265, MJPEG
- Network Audio Compress Formats
- AAC-LC (48 K)
- Maximum Frame Rate
- 2160p 60fps
- Bit-Rate Control Modes
- VBR, CBR (selectable)
- Range of Bit-Rate Setting
- 512 Kbps to 64 Mbps
- Network Interface
- 10 / 100 / 1000 / 2500 Base-T
- Multi-Stream Capability
- 10
- 4K 60fps: RTSP (x2), HDMI (x2), USB (x2), NDI®High Bandwidth (x1), & NDI®HX2 (x2)
- 1080p 60fps: 3G-SDI
- Network Protocols
- IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
- NDI®High Bandwidth
- Yes
- NDI®HX2
- Yes
- NDI®Genlock
- N/A
- NDI®Embedded Bridge
- N/A
USB
- Connector
- USB 3.2 Gen 1
- Video Formats
- MJPEG, YUY2
- Audio Format
- PCM
- Maximum Video Resolution
- 2160p
- USB Video Class (UVC)
- UVC 1.1
- USB Audio Class (UAC)
- UAC 1.0
Web UI
- Live Video Preview
- Yes
- Camera PTZ Control
- Pan, Tilt, Zoom, Focus, Preset Control
- Camera / Image Adjustment
- Exposure, White Balance, Picture
- Network Configuration
- DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
- IP Search and Configuration Tool
- Support Windows®7 or later
- PTZ Management
- Support Windows®7 or later
- PTZ Control Panel
- Supports iOS & iPadOS®9 or later
- PTZ Link
- Supports Windows®7 or later, macOS®14 or later
- OBS Plugin for PTZ Cameras
- Supports Windows®8 or later, macOS®High Sierra v10.13 or later
- CaptureShare
- Supports Windows®7 or later, macOS®14 or later
Warranty
- Camera
- 5 Years
- Accessories
- 1 Year
- Package Contents
- Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x 7), M2 x 4 mm Screw (x 5), M3 x 6 mm Screw (x3), 1/4′-20L 6.5mm Screw (x2), Cable Fixing Plate (x 2), Ceiling Mount Bracket (x 2), Drilling Paper, Quick Start Guide
- Optional Accessories
- Aver CL01 PTZ Camera Controller, L-Type Wall Mount
