Aver SVC100 Nigeria

Rating

AVer SVC100 Nigeria

With a click of a button, the AVer SVC100 Nigeria Video Conferencing System uses auto-frame technology to bring every participant in your meeting room into one frame on the same shot. This also helps capture motions within the meeting room, like new additions to the conference or participants exiting.

Description

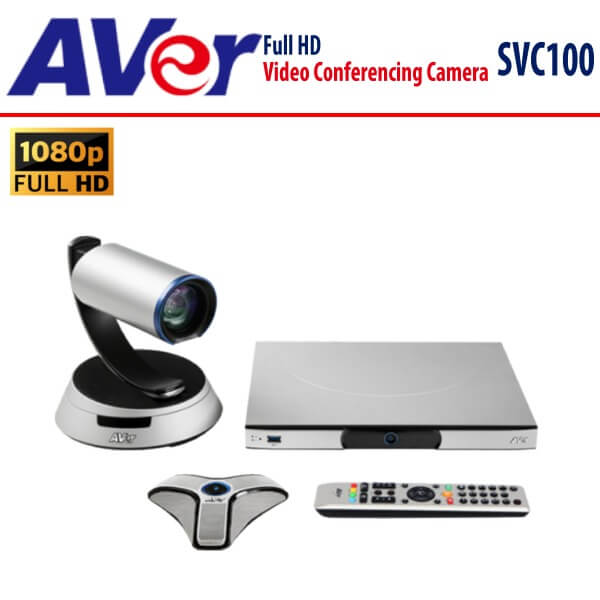

Aver SVC100 Full HD Video Conferencing System Nigeria

The stylish, orbit – themed AVer SVC100 Nigeria is a Full HD Video Conferencing System which exhibits full-fledged capabilities when it comes to video conferencing, thanks to its advanced features. It onboards AVer Omni-Protocol Support for WebRTC, SIP, and H.323, providing users with more diverse and easy to use collaborative communication possibilities. AVer Omni-Protocol enables the AVer SVC100 Full HD Video Conferencing System to easily share, receive, and stream content across various different platforms. Furthermore, the high – performing SVC100 Video Conferencing System enables real-time communications over web browsers such as Firefox and Chrome with the integration of WebRTC(Web Real-Time Communication).

In addition, the SVC100 Video Conferencing System comes with a built-in 32GB recording storage capacity, enabling you to record meeting proceedings and retrieve them later for use. An additional HDMI port has been incorporated on the AVer SVC100 Nigeria Full HD Video Conferencing System to enable easy and direct content sharing.

Features

Smart Frame Capture

With a click of a button, the AVer SVC100 Nigeria Video Conferencing System uses auto-frame technology to bring every participant in your meeting room into one frame on the same shot. This also helps capture motions within the meeting room, like new additions to the conference or participants exiting.

Ultra High Definition Images

The AVer SVC100 Nigeria Full HD Video Conferencing System has an ultra High Definition of 1080p at 30 frames per second and an output resolution of up to 4K, capturing crystal clear images. It is equipped with a 2 – megapixel CMOS Sensor and an 18× total zoom power. It enjoys a wide Field of View, 110°-degree for panning and 25° degrees on tilting. It also is engineered with camera presets with essential additions like autofocus, auto exposure and auto white balance, resulting in natural – looking images with even tones across all skin types, ensuring that every participant is clearly seen.

It not only boasts H.264 output with Scalable Video Coding (SVC) and UVC 1.5 but also extended battery life to offer you more video conferencing service. It is able to stream smoothly and clearly using standard computer applications like Skype for Business, Microsoft® Teams, Windows® 8 and 10.

32GB Recording Storage Capacity

This efficient feature of the AVer SVC100 Nigeria Full HD Video Conferencing System enables you to easily record meeting proceedings and later retrieve them when needed. Even better, an iSCSI functionality is included for cloud uploads, ensuring that you never miss out on any event.

RTMP For Live Video Streaming

Enjoy seamless live streaming using the premium AVer SVC100 Nigeria Full HD Video Conferencing System which allows you to live stream speeches, presentations, and even lectures without much struggle. You can even record your live stream sessions.

Maximum Security

The AVer SVC100 Nigeria Full HD Video Conferencing System comes with password protection for system settings and remote system management. Its AES(Advanced Encryption Standard)  function (128 – bit) secures your contents, ensuring they are not accessed without your authorization.

License Upgradeable

The AVer SVC100 Nigeria Full HD Video Conferencing System allows for a license upgrade, expandable to a maximum of up to 16 websites, therefore easily meeting your company’s growing communication needs.

Easy Setup

The AVer SVC100 Nigeria Full HD Video Conferencing System is specifically designed to give users a quick installation as well as an easy operation. The unit plugs effortlessly into other office peripherals and systems, thanks to its Plug – and – Play feature, to give you an unmatched video conferencing luxury. The user is also able to mount the AVer SVC100 Full HD Video Conferencing Camera on different platforms, depending on their preference and choice, from an LCD screen to a tabletop, while enjoying the flexibility of an adjustable clip.

Multiple Language User Interface

The Aver SVC100 Nigeria Full HD Video Conferencing System is built in a very user – friendly manner, supporting the use of 23 different languages including English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, and Vietnamese.

Specifications

Communications
  • H.323, SIP standards, SIP TLS
  • WebRTC (License Required)
  • Mixed protocols between H.323, SIP, WebRTC
  • Call Quality bandwidth 64Kbps ~ 8Mbps
  • RJ45 network LAN (10/100/1000)
  • Manual bandwidth settings
  • Manual Max. bandwidth settings
  • Up to 60 Mbps (On 16-Way Multipoint Call)

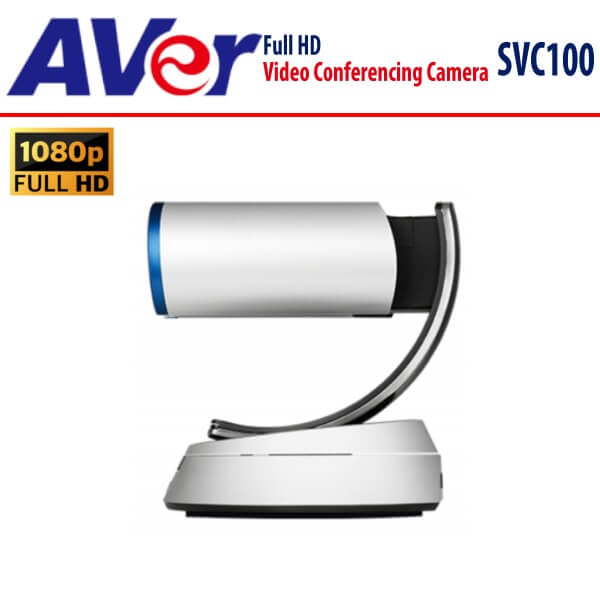

Camera
  • eCam PTZ III camera
  • 2-megapixel CMOS sensor
  • 18X total zoom
  • ±110° pan; +25°/-25° tilt
  • 72° FOV (H); 43° FOV (V); 82° FOV (diagonal)
People video resolutions
  • HD1080p (1920 x 1080), up to 60fps
  • HD720p (1280 x 720)
  • 480p (848 x 480)
  • 4CIF (704 x 576)
  • CIF (352 x 288)
  • SIF (352 x 240)
  • All resolutions at 30fps
Content Video resolutions HDMI supported resolutions :

  • 1080p (1920 x 1080)
  • 720p (1280 x 720)
  • D1 (720 x 480)
  • SXGA (1280 x 1024)
  • XGA (1024 x 768)
  • SVGA (800 x 600)
  • VGA (640 x 480)

DVI (digital) supported resolutions :

  • 1080p (1920 x 1080)
  • 720p (1280 x 720)
  • D1 (720 x 480)
  • SXGA (1280 x 1024)
  • XGA (1024 x 768)
  • SVGA (800 x 600)
  • VGA (640 x 480)

Output resolutions :

Up to HD1080p (1920 x 1080) at 60 fps

Video standards
  • H.264, H.264 HP, H.264 SVC, H.263+, H.263, H.261
  • H.239 dual video streams
  • BFCP content sharing
  • RTMP for live video streaming
  • Forward Error Correction (FEC)
  • Anti 30% video packet loss with FEC
Video features 3D denoise
Video inputs
  • Main camera eCam PTZ III
  • HDMI for 2nd camera
  • DVI-I/VGA for presentation
  • HDMI for presentation
Video outputs HDMI × 2
Audio Standards G.711, G.722, G.722.1, G.728, G.722.1C, G.729, AAC-LD
Audio features
  • Automatic gain control (AGC)
  • Advanced noise reduction
  • Acoustic echo cancellation (AEC)
Audio inputs
  • Microphone pickup range of 6m, daisy chain up to 4
  • HDMI
  • Line-in (3.5 mm)
Audio outputs
  • HDMI
  • Line-out (3.5 mm)
Other supported standards
  • H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
  • RTP, RTCP, H.350,SRTP, H.235, SNMP, NTP
User Interface
  • Single/dual monitor layout styles
  • User-friendly OSD (23 supported languages : English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, Vietnamese)
  • Display/edit site name
Network
  • 10/100/1000Mbps
  • NAT/firewall traversal (H.460)
  • High Efficiency Lost Packet Recovery (HELPeR™)
  • API support via Telnet
  • Wake-on-LAN (WOL) support
  • IPv4 and IPv6 support
  • Network test
  • Quality of service (QoS)
  • VLAN (802.1Q / 802.1P)
  • EAP 802.1x
Security
  • AES (Advanced Encryption Standard) function (128-bit)
  • Password protection for system settings
  • Password protection for remote system management
Web Management Tool
  • Remote management
  • Live monitoring
  • Firmware update
  • Phonebook download/upload/edit
  • Restore system settings
  • Export call history
Value – added features
  • Meeting recording
    • In meeting and offline recording
    • Save directly to USB flash drive
    • Supports screen re-layout during playback
    • Playback and file conversion via VCPlayer software (.mov and .mp4 format)
  • EZMeetup software/App
    • 30-day for free trial
    • Connect with H.264 video codec
    • Receive resolution up to full HD 1080p at 30fps
    • Transmit resolution up to full HD 1080p at 30fps
    • Support content sharing, capture and recording
  • EZDraw App
    • Import .JPG, .PNG, .GIF and .BMP files
    • Export .PNG files
    • A maximum of 10 devices can be connected
  • ScreenShare software (Wirelessly share content)
  • VCLink software (Control and Sharing in smartphone)
  • VCAssist software (Intelligent Meeting Assistant)
  • Dual monitor support and SnapShot
  • Speed dialing via hot keys (10 sets)
  • Camera presets (100 positions)
  • Firmware update via USB flash drive
  • Screensaver and auto power off mode
  • 2nd camera control from SVC AVer Remote (Via RS-232 with visca/pelco-d/pelco-p)
  • Group calling
  • Supports SIP voice calls
  • Dual camera and dual content image by Side-by-Side or PIP (4 Video Transmission simultaneously includes Primary camera + 2nd camera + 2 Different contents)
  • ScreenShare software (Wirelessly share content)
  • VCLink software (Control and Sharing in smartphone)
  • VCAssist software (Intelligent Meeting Assistant)
  • Dual camera and dual content image by Side-by-Side or Picture-in-Picture
  • iSCSI storage device settings
  • Built-in SIP server(Up to 100 Registrations, 50 Pair calling)
  • Support AVer Register Server (ARS)
  • Meeting ID method and High-Res mode
Power Supply
  • AC 100V ~240V, 50/60Hz
  • Consumption : EIAJ 12V, 6.25A
Environmental data
  • Operation temperature : 0 ~40°C
  • Operation humidity : 20% ~80%
  • Storage temperature : -20 ~60°C
  • Storage humidity : 20% ~80%
Physical Characteristics
  • Package dimensions : 422 x 336 x 374mm
  • Package weight : 8.88kg
  • Main system (codec) : 320 x 267.4 x 37.3mm
  • eCam PTZ III : 205 x 205 x 195mm
  • SVC microphone array : 144.8 x 128.45 x 27.8mm
Optional accessories
  • Additional microphone
  • Camera mount
  • USB-to-RS232 converter
Software options
  • 2,4,6,8,10 multipoint license for up to maximum 16 sites
  • WebRTC License
Warranty 3+2 year warranty*



PACKAGE CONTENTS

  • Main system unit (codec)
  • eCam PTZ III camera
  • SVC microphone array
  • IR remote control with batteries
  • Power supply (12V/6.25A)
  • VGA cable (1.8M)
  • Power cord (1.8M)
  • Camera cable (3M)
  • Microphone cable (5M)
  • Network cable (3M)
  • HDMI cable X 2 (3M)
  • Warranty card
  • Quick guide
