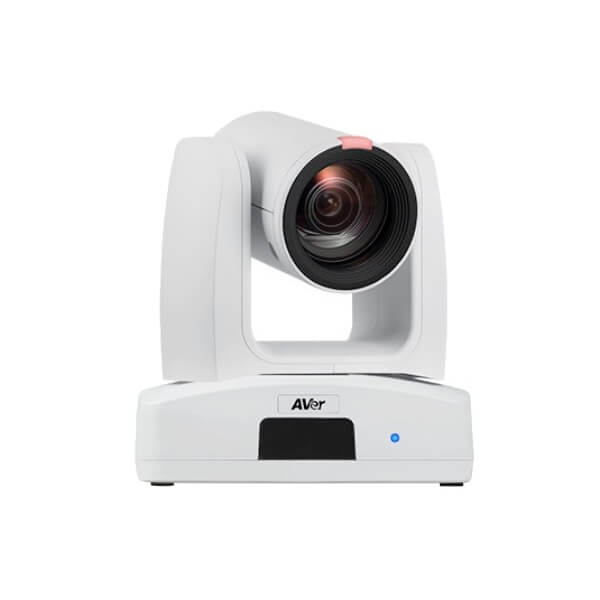

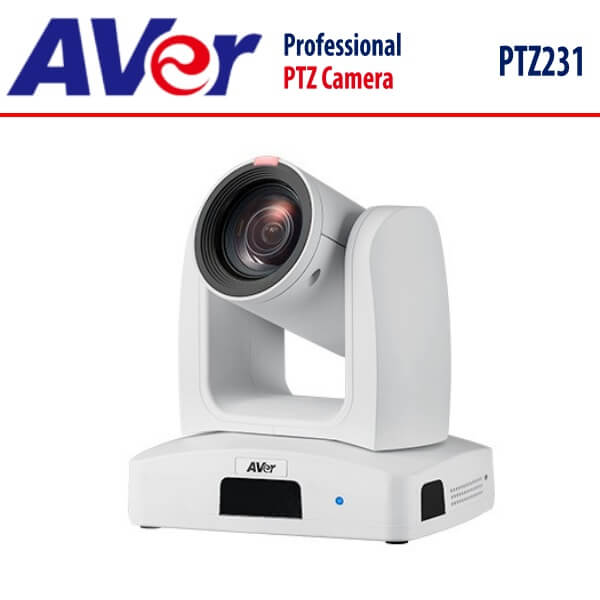

Aver PTZ231 Professional PTZ Camera Nigeria
Experience unparalleled control over your streaming endeavors with the AVer PTZ231 Nigeria, an epitome of advanced PTZ camera technology. Elevate your streaming game to professional heights as you delve into the realm of full HD 1080p outputs, seamlessly delivered at a remarkable 60 frames per second. With its impressive 30X optical zoom capability, you can effortlessly capture every intricate detail, bringing your content to life with unparalleled clarity and precision.
But that’s not all – the AVer PTZ231 Nigeria takes your streaming experience a step further with its cutting-edge SmartShoot feature. This innovative functionality ensures that your shots are always optimized, automatically adjusting focus and framing to deliver captivating visuals consistently.
Whether you’re a seasoned streamer or just starting out, the AVer PTZ231 Nigeria is your ticket to captivating your audience and taking your livestream performances to new heights. Say goodbye to limitations and hello to a world of endless streaming possibilities with this remarkable piece of technology.
Specifications
Camera
- Image Sensor
- 1/2.8” 1080p Exmor CMOS
- Effective Picture Elements
- 2 Megapixels
- Output Resolutions
- 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
- Minimum Illumination
- 0.5 lux (IRE50, F1.6, 30fps)
- S/N Ratio
- ≥ 50 dB
- Gain
- Auto, Manual
- TV Lines
- 1000 (Center)
- Shutter Speed
- 1/1 to 1/32,000 sec
- Exposure Control
- Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
- White Balance
- Auto, Manual, ATW, One Push
- Optical Zoom
- 30X
- Digital Zoom
- 1X
- Total Zoom
- 30X
- Viewing Angles
- DFOV: 69.2° (Wide) to 2.8° (Tele)
- HFOV: 62.3° (Wide) to 2.5° (Tele)
- VFOV: 37.3° (Wide) to 1.4° (Tele)
- Focal Length
- f = 4.5 mm (Wide) to 135 mm (Tele)
- Aperture (Iris)
- F = 1.8 (Wide) to 4.7 (Tele)
- Minimum Working Distance
- 0.1 m (Wide)
- 1.2 m (Tele)
- Pan / Tilt Angles
- Pan : ±170°
- Tilt : +90° / -30°
- Pan / Tilt Speed (Manual)
- Pan : 0.1° to 100° / sec
- Tilt : 0.1° to 100° / sec
- Preset Speed
- Pan : 200° / sec
- Tilt : 200° / sec
- Preset Positions
- 10 (IR)
- 256 (RS-232, RS-422, IP)
- Camera Control – Interfaces
- RS-232 (DIN8)
- RS-422 (RJ45)
- IP
- Camera Control – Protocols
- VISCA (RS-232 / RS-422 / IP)
- PELCO-D & PELCO-P (RS-232 / RS-422)
- CGI (IP)
- ONVIF
- Image Processing
- Noise Reduction (2D / 3D)
- Flip
- Mirror
- Power Frequencies
- 50 Hz, 60 Hz
AI Function
- Mode
- SmartShoot
Audio
- Channels
- 2ch Stereo
- Codecs
- AAC-LC
Interface

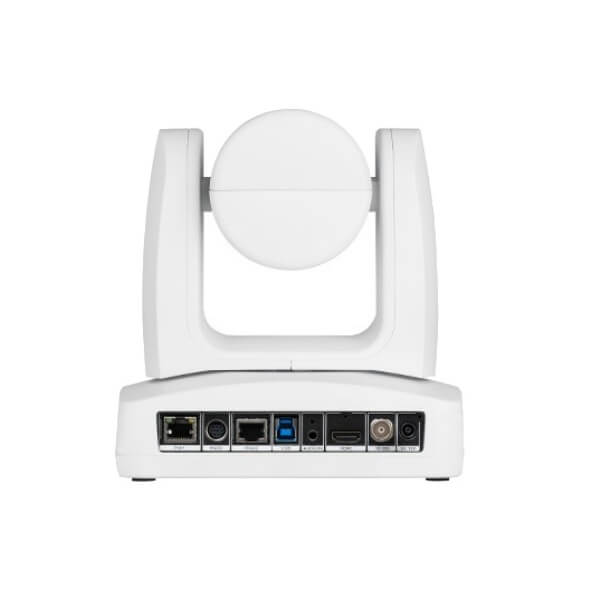

- Video Outputs
- 3G-SDI, HDMI, IP, USB
- Audio Outputs
- 3G-SDI, HDMI, IP, USB
- Audio Inputs
- MIC in, Line in
General
- Power Requirement
- AC 100 – 240V to DC 12V/2A
- Power Consumption
- 19W
- PoE
- PoE+
- Dimensions (W x H x D)
- 180.0 x 192.0 x 145.0 mm
- Net Weight
- 2.0 (±0.1) kg
- Application
- Indoor
- Tally Lamp
- Yes
- Security
- Kensington Slot
- Remote Control
- Infrared
- Operating Conditions
- Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
- Storage Conditions
- Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%
IP Streaming
- Resolution
- 1080p 60fps
- Network Video Compress Formats
- H.264, H.265, MJPEG
- Maximum Frame Rate
- 1080p 60fps
- Bit-Rate Control Modes
- VBR, CBR (selectable)
- Range of Bit-Rate Setting
- 512 Kbps to 120 Mbps
- Network Interface
- 10 / 100 / 1000 Base-T
- Multi-Stream Capability
- 4
- 1080p 60fps: RTSP, HDMI, USB & 3G-SDI
- Network Protocols
- IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
- NDI®HX
- License Upgrade to NDI HX2 available in 2024Q2
USB
- Connector
- USB 3.1
- Video Formats
- MJPEG, YUY2
- Maximum Video Resolution
- 1080p
- USB Video Class (UVC)
- UVC 1.1
- USB Audio Class (UAC)
- UAC 1.0
Web UI
- Live Video Preview
- Yes
- Camera PTZ Control
- Pan, Tilt, Zoom, Focus, Preset Control
- Camera / Image Adjustment
- Exposure, White Balance, Picture
- Network Configuration
- DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
- IP Search and Configuration Tool
- Support Windows® 7 or later
- PTZ Management
- Support Windows® 7 or later
- PTZ Control Panel
- Supports iOS & iPadOS® 11 or later
- PTZ Link
- Supports Windows® 7 or later, macOS® 10.14 or later
- OBS Plugin for PTZ Cameras
- Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
- CaptureShare
- Supports Windows® 7 or later, macOS® 10.14 or later
Warranty
- Camera
- 5 Years
- Accessories
- 1 Year
- Package Contents
- Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate (x2), M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Tie (x4)
- Optional Accessories
- AVer CL01 PTZ Camera Controller, L-Type Wall Mount
