Description

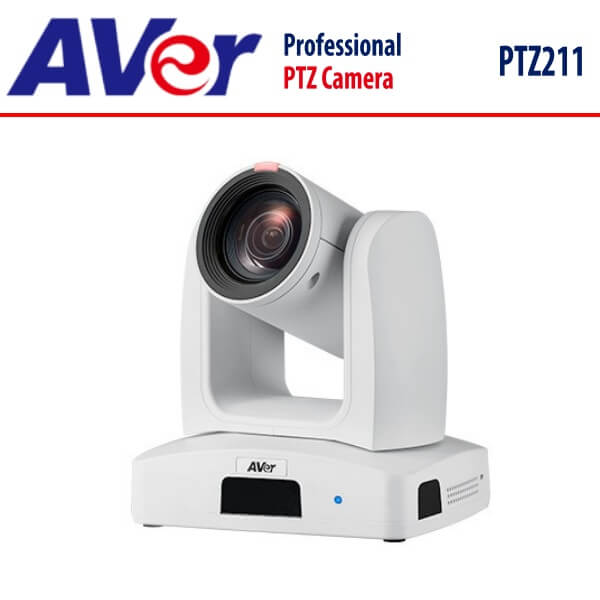

Aver PTZ211 Professional PTZ Camera Nigeria
Introducing the AVer PTZ211 Nigeria: an exceptional PTZ camera engineered to empower you with unparalleled control over your streaming endeavors. Elevate your streaming experience to professional heights with its remarkable capabilities. Immerse your audience in stunning Full HD 1080p resolution streaming at an impressive 60 frames per second, ensuring crystal-clear visuals that captivate viewers. With a powerful 12X optical zoom, the AVer PTZ211 Nigeria enables you to capture every detail with precision, no matter the distance. But that’s not all; the camera is also equipped with the innovative SmartShoot feature, adding a layer of intelligence to your broadcasts by automatically adjusting focus and framing to keep your content polished and engaging. With the AVer PTZ211 Nigeria at your disposal, your livestream performances are destined to shine brighter than ever before, leaving your audience in awe of your professional-grade productions. Elevate your streaming game and command attention with the AVer PTZ211 Nigeria.
Specifications
Camera
- Image Sensor
- 1/2.8” 1080p Exmor CMOS
- Effective Picture Elements
- 2 Megapixels
- Output Resolutions
- 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
- Minimum Illumination
- 0.46 lux (IRE50, F1.6, 30fps)
- S/N Ratio
- ≥ 50 dB
- Gain
- Auto, Manual
- TV Lines
- 1000 (Center)
- Shutter Speed
- 1/1 to 1/32,000 sec
- Exposure Control
- Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
- White Balance
- Auto, Manual, ATW, One Push
- Optical Zoom
- 12X
- Digital Zoom
- 1X
- Total Zoom
- 12X
- Viewing Angles
- DFOV: 80.6° (Wide) to 7.7° (Tele)
- HFOV: 72.8° (Wide) to 6.7° (Tele)
- VFOV: 44.1° (Wide) to 3.8° (Tele)
- Focal Length
- f = 3.9 mm (Wide) to 46.8 mm (Tele)
- Aperture (Iris)
- F = 1.6 (Wide) to 2.8 (Tele)
- Minimum Working Distance
- 0.3 m (Wide)
- 1.5 m (Tele)
- Pan / Tilt Angles
- Pan : ±170°
- Tilt : +90° / -30°
- Pan / Tilt Speed (Manual)
- Pan : 0.1° to 100° / sec
- Tilt : 0.1° to 100° / sec
- Preset Speed
- Pan : 200° / sec
- Tilt : 200° / sec
- Preset Positions
- 10 (IR)
- 256 (RS-232, RS-422, IP)
- Camera Control – Interfaces
- RS-232 (DIN8)
- RS-422 (RJ45)
- IP
- Camera Control – Protocols
- VISCA (RS-232 / RS-422 / IP)
- PELCO-D & PELCO-P (RS-232 / RS-422)
- CGI (IP)
- ONVIF
- Image Processing
- Noise Reduction (2D / 3D)
- Flip
- Mirror
- Power Frequencies
- 50 Hz, 60 Hz
AI Function
- Mode
- SmartShoot
Audio
- Channels
- 2ch Stereo
- Codecs
- AAC-LC
Interface
- Video Outputs
- 3G-SDI, HDMI, IP, USB
- Audio Outputs
- 3G-SDI, HDMI, IP, USB
- Audio Inputs
- MIC in, Line in
General
- Power Requirement
- AC 100 – 240V to DC 12V/2A
- Power Consumption
- 19W
- PoE
- PoE+
- Dimensions (W x H x D)
- 180.0 x 192.0 x 145.0 mm
- Net Weight
- 2.0 (±0.1) kg
- Application
- Indoor
- Tally Lamp
- Yes
- Security
- Kensington Slot
- Remote Control
- Infrared
- Operating Conditions
- Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
- Storage Conditions
- Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%
IP Streaming
- Resolution
- 1080p 60fps
- Network Video Compress Formats
- H.264, H.265, MJPEG
- Maximum Frame Rate
- 1080p 60fps
- Bit-Rate Control Modes
- VBR, CBR (selectable)
- Range of Bit-Rate Setting
- 512 Kbps to 120 Mbps
- Network Interface
- 10 / 100 / 1000 Base-T
- Multi-Stream Capability
- 4
- 1080p 60fps: RTSP, HDMI, USB & 3G-SDI
- Network Protocols
- IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
- NDI®HX
- License Upgrade to NDI HX2 available in 2024Q2
USB
- Connector
- USB 3.1
- Video Formats
- MJPEG, YUY2
- Maximum Video Resolution
- 1080p
- USB Video Class (UVC)
- UVC 1.1
- USB Audio Class (UAC)
- UAC 1.0
Web UI
- Live Video Preview
- Yes
- Camera PTZ Control
- Pan, Tilt, Zoom, Focus, Preset Control
- Camera / Image Adjustment
- Exposure, White Balance, Picture
- Network Configuration
- DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
- IP Search and Configuration Tool
- Support Windows® 7 or later
- PTZ Management
- Support Windows® 7 or later
- PTZ Control Panel
- Supports iOS & iPadOS® 11 or later
- PTZ Link
- Supports Windows® 7 or later, macOS® 10.14 or later
- OBS Plugin for PTZ Cameras
- Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
- CaptureShare
- Supports Windows® 7 or later, macOS® 10.14 or later
Warranty
- Camera
- 5 Years
- Accessories
- 1 Year
- Package Contents
- Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate (x2), M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Tie (x4)
- Optional Accessories
- AVer CL01 PTZ Camera Controller, L-Type Wall Mount
