Description

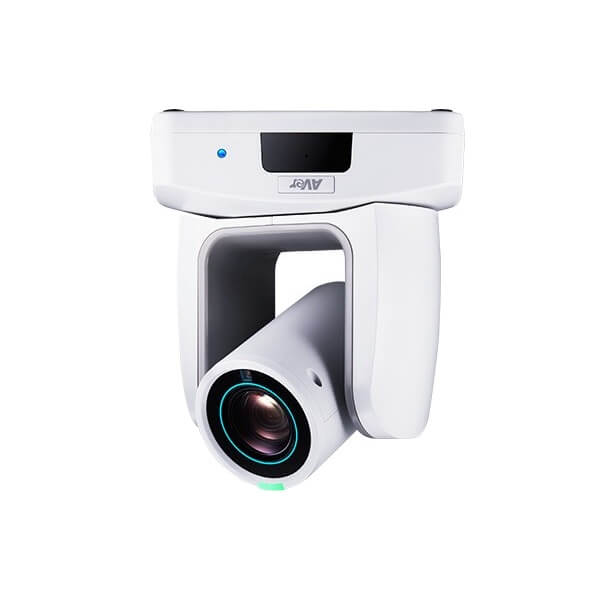

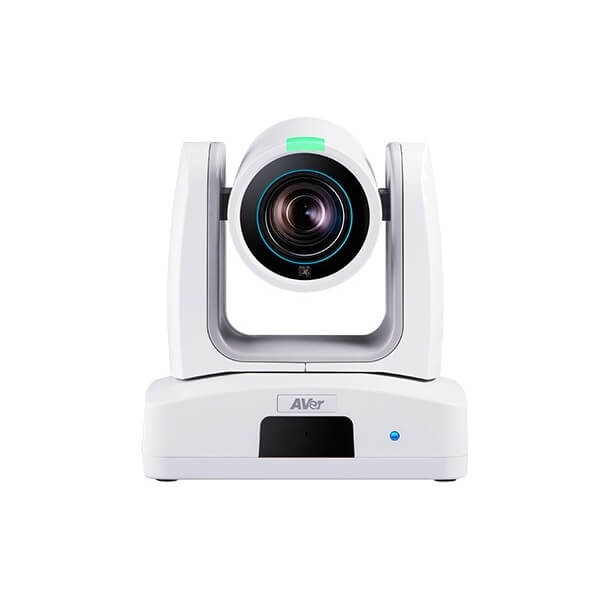

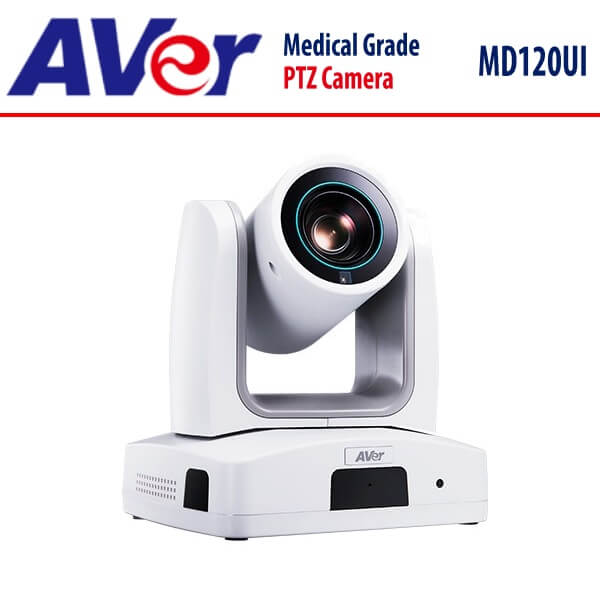

AVer MD120UI Medical Grade PTZ Camera Nigeria
The AVer MD120UI Nigeria stands as a groundbreaking innovation, heralding the era of patient monitoring with its pioneering design and advanced features. Developed as the world’s premier PTZ camera exclusively tailored for patient care, it integrates cutting-edge AI technologies to revolutionize healthcare practices. With its unparalleled capabilities, healthcare providers can effortlessly uphold constant vigilance over their patients, ensuring prompt responses to their ever-evolving needs.
Equipped with a remarkable 20X optical zoom and boasting 4K imaging capabilities, the AVer MD120UI Nigeria sets a new standard for visual clarity in patient monitoring. Its IR night view function further enhances its effectiveness, delivering unparalleled visibility even in low-light conditions. This comprehensive visual coverage leaves no room for blind spots, empowering healthcare professionals to conduct seamless round-the-clock monitoring, fostering a safer and more secure healthcare environment.
The synergy of precision engineering and state-of-the-art technology embodied in the AVer MD120UI Nigeria transcends traditional monitoring systems, offering a holistic solution that prioritizes patient well-being. As healthcare facilities embrace the future of patient care, this groundbreaking PTZ camera emerges as an indispensable tool, redefining the standards of excellence in healthcare monitoring.
Specifications
Camera
- Image Sensor
- 1/2.8′ CMOS
- Effective Picture Elements
- 8 Megapixels
- Output Resolutions
- Resolutions: 4K / 1080p / 720p
- Frame Rates: 60 / 59.94 / 50 / 30 / 29.97 / 25
- Minimum Illumination
- 0.5 lux (50 IRE, F1.6, Max. AGC, 1/30)
- S/N Ratio
- ≥ 50 dB
- Gain
- Auto, Manual
- TV Lines
- 1000 (Center / Wide)
- Shutter Speed
- 1/1s to 1/10,000s
- Exposure Control
- Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
- White Balance
- Auto / Manual
- Optical Zoom
- 20X
- Digital Zoom
- 1X
- Total Zoom
- 20X
- Viewing Angles
- DFOV: 69.2° (Wide) to 4.1° (Tele)
- HFOV: 62.3° (Wide) to 3.6° (Tele)
- VFOV: 37.7° (Wide) to 2.1° (Tele)
- Focal Length
- f = 4.5 mm (Wide) to 90 mm (Tele)
- Aperture (Iris)
- F = 1.8 (Wide) to 4.7 (Tele)
- Minimum Working Distance
- 0.1 m (Wide) , 1.2 m (Tele)
- Pan / Tilt Angles
- Pan: ±170°, Tilt: +90° / -30°
- Pan / Tilt Speed (Manual)
- Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec
- Preset Speed
- Pan: 200° / sec, Tilt: 200° / sec
- Preset Positions
- 10 (IR), 256 (RS-232, RS-422, IP)
- Camera Control – Interfaces
- RS-232 / RS-422 / Ethernet
- Camera Control – Protocols
- VISCA (RS-232 / RS-422 / IP), CGI (IP)
- Image Processing
- Mirror / Flip / Freeze / WDR / BLC
- Power Frequencies
- 50 Hz, 60 Hz
AI Function
- Mode
- Eye Tracking
Privacy
- Protection Mode
- Privacy Mode, Privacy Indicator
General
- Power Requirement
- 12V
- Power Consumption
- 24W
- PoE
- PoE+ (IEEE802.3at)
- Dimensions
- 180(W) x 145(D) x 183.5(H) mm
- Net Weight
- 1.7 ± 0.1 kg
- Housing Material
- Anti-UV
- Application
- Indoor
- IR Night Vision
- Yes
- Security
- Kensington Slot
- IR Remote Control
- Yes
- Operating
- Temperature: 0 °C to +40 °C
- Humidity: 20% to 80%
- Storage Conditions
- Temperature: -20 °C to +60 °C
- Humidity: 20% to 95%
Audio
- Channels
- 2ch Stereo
- Codec
- AAC-LC (48K)
- Built-in Microphone
- 1 (Omni-Directional)
Interface
- Video Outputs
- HDMI, IP, USB
- Audio Outputs
- HDMI, IP, USB
- Audio Inputs
- N/A
IP Streaming
- Resolution
- 4K 60fps
- Network Video Compress Formats
- H.264, H.265, MJPEG
- Maximum Frame Rate
- 4K 60fps
- Bit-Rate Control Modes
- VBR, CBR
- Range of Bit-Rate
- 512Kbps to 64Mbps
- Network Interface
- 10 / 100 / 1000 Base-T
- Multi-Stream Capability
- 2 (RTSP / Web page), 4K 60fps Max.
- Network Protocols
- IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP RTP/RTCP, RTSP, RTMP,VISCA over IP
USB
- Connector
- USB 3.0 (Type-B)
- Video Formats
- MJPEG
- Maximum Video
- 2160p
- USB Video Class (UVC)
- UVC 1.1
- USB Audio Class (UAC)
- UAC 1.0
Web UI
- Live Video Preview
- Yes
- Camera PTZ Control
- Pan, Tilt, Zoom, Focus, Preset Control
- Camera / Image
- Exposure, White Balance, Picture
- Network Configuration
- DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
- IP Search and Configuration Tool
- Support Windows® 7 or later
- PTZ Management
AVer ViewCare- Support Windows® 7 or later
- PTZ Control Panel
- Supports iOS & iPadOS® 11 or later
- Camera Setting Tool
- Supports Windows® 7 or later, macOS® 10.14 or later
Warranty
- Camera
- 3 Years
- Accessories
- 1 Year
- Package Contents
- Camera, Drilling Paper, Ceiling Mount Bracket, QR Code Card, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), USB Cable (Type-B)
- Optional Accessories
- AVer CL01 PTZ Camera Controller, L-Type Wall Mount
