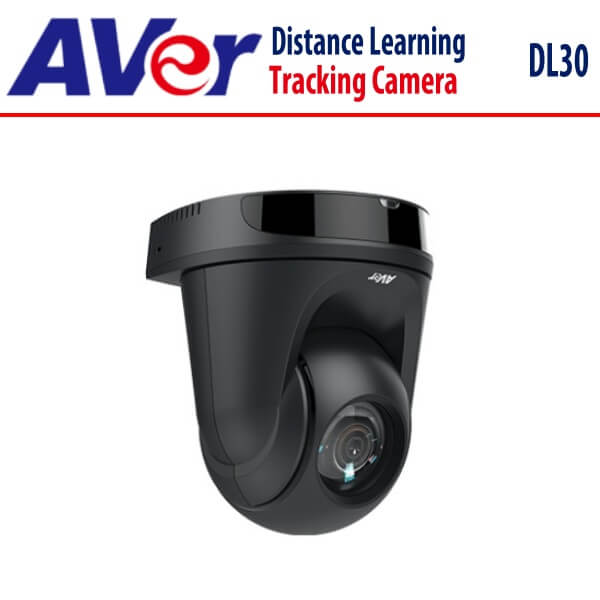

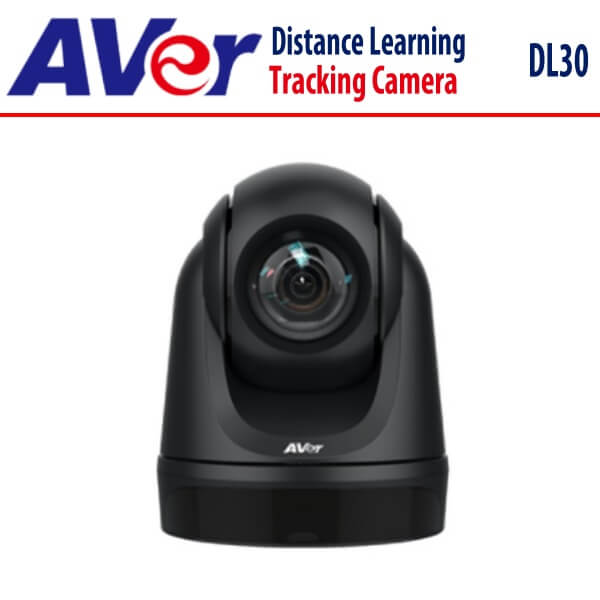

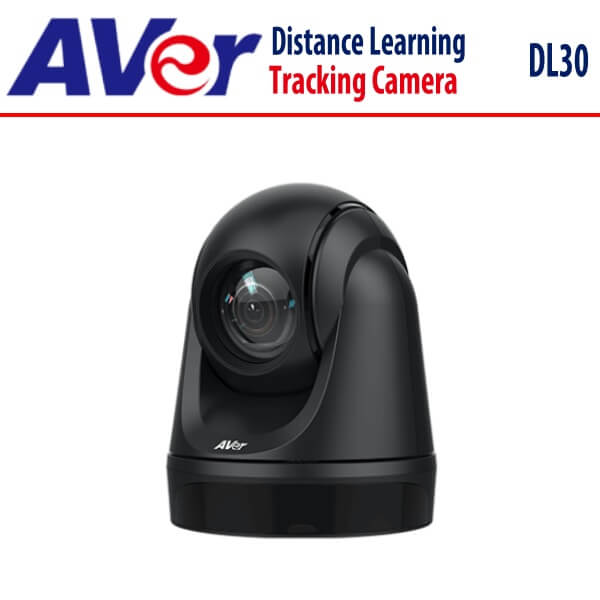

Aver DL30 Auto Tracking Distance Learning Camera Nigeria

The Aver DL30 Nigeria is equipped with a 12X optical zoom that operates smoothly without distorting the image. With the Aver DL30 Auto Tracking Camera running the show, teachers no longer need to suppress their creativity in hybrid environments. AVer’s renowned Human Detection automatically recognizes human forms in the classroom and dynamically tracks specific targets or areas via multiple tracking modes. The target doesn’t need to wear any devices or sensors to maintain tracking. Even far-site students can clearly follow the teacher’s every move.

Superb tracking and anti-interference functions of the Aver DL30 Nigeria allow teachers to move freely in the classroom. Instructors can adjust the tracking settings, stream, and record to make their teaching more substantive and vivid. To change the tracking target, users can simply click one button on the remote control. Accurate segmented tracking clearly shows content on the blackboard or screen, automatically switching the tracking area according to the teacher’s position. Content and the presenter are displayed at the same time so students can understand notes for key points at a glance. Simple controls and plug-and-play connectivity of the Aver DL30 Nigeria are the biggest advantages of the Aver DL30 Nigeria, which is ideal for installing in every classroom. Students tuned in remotely and those present in the classroom can see each other and learn together like they would if they were in the same room. Enhance student engagement and interaction, and easily create distance learning and hybrid learning environments.

Aver DL30 Technical Specifications

Camera

Image sensor
- 1/2.8″ 1080p Low Lux CMOS
Effective Picture Elements
- 2 Megapixels

Output Resolution
- 1080p/60 (IP Streaming & USB)
Minimum Illumination
- 0.5 Lux (IRE50, F1.6, 30fps)

S/N Ratio
- > 50 dB
Gain
- Auto, Manual

TV Line
- 800 (Center), 600 (Corner)
Shutter Speed
- 1/4 to 1/10,000 sec (60 Hz)
- 1/3 to 1/10,000 sec (50 Hz)

Exposure Control
- Auto, Manual, WDR
WDR
- Yes

White Balance
- Auto, Manual
Optical Zoom
- 12X

Digital Zoom
- 2X
Viewing Angles
- DFOV : 84.1° (Wide) to 7.8° (Tele)
- HFOV : 76.5° (Wide) to 6.8° (Tele)
- VFOV : 47.3° (Wide) to 3.8° (Tele)

Focal length
- f = 3.9 mm (Wide) to 46.8 mm (Tele)
Aperture (Iris)
- F = 1.6 (Wide) to 2.8 (Tele)

Minimum Working Distance
- 0.3 m (Wide), 1.5 m (Tele)
Pan / Tilt Angles
- Pan : ±170°, Tilt : ±90°

Pan / Tilt Speed (Manual)
- Pan : 1° to 90°/sec
- Tilt : 7.85° to 45°/sec
Preset Speed
- Pan : 200° / sec, Tilt : 200° / sec

Preset Positions
- 10 (IR), 256 (IP & USB)
Camera Control – Interface
- IP, USB

Camera Control – Protocol
- VISCA (IP), CGI (IP), USB
Image Processing
- Noise Reduction (2D/3D), Flip, Mirror, WDR

Power Frequency
- 50Hz / 60Hz

AI Auto Tracking Functions

Tracking Mode
- Presenter Mode, Zone Mode

Audio

Channels
- 2ch (Stereo)
Codecs
- AAC, PCM

Sample Rate
- AAC (48, 32, 16, 8 KHz), PCM (48 KHz)

Interface

Video Outputs
- IP, USB
Audio Outputs
- IP, USB

Audio Inputs
- Mic in, Line in

General

Power Requirement
- AC 110–220V to DC 12V/2A
Power Consumption
- 12W

PoE
- PoE+
Dimensions (W x H x D)
- 158.8 x 200.0 x 162.2 mm

Net Weight
- 1.62 (±0.1) kg
Application
- Indoor

Tally Lamp
- N/A
Security
- Kensington slot

Remote Control
- Infrared
Operating Condition
- Temperature : 0°C to 40°C
- Humidity : 20% to 80%

Storage Condition
- Temperature : -20°C to 60°C
- Humidity : 20% to 95%

IP Streaming

Resolution
- 1080p 60fps
Network Video Compress Format
- H.264, MJPEG (Web Page)

Network Audio Compression Formats
- AAC
Sample Rates
- 48, 32, 16, 8 KHz

Maximum Frame Rate
- 1080p 60fps
Bit-rate Control Modes
- VBR, CBR

Range of Bit-rate setting
- 512 Kbps to 32 Mbps
Network Interface
- 10/100 Base-T

Multi-stream Capability
- 2 (1 for IP Streaming, 1 for Web Page), (1 for USB, 1 for Web Page),1080p 60fps (max.)
- 3 (1 for IP Streaming, 1 for Web Page, 1 for USB), 1080p 30fps (max.)
Network Protocol
- IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
