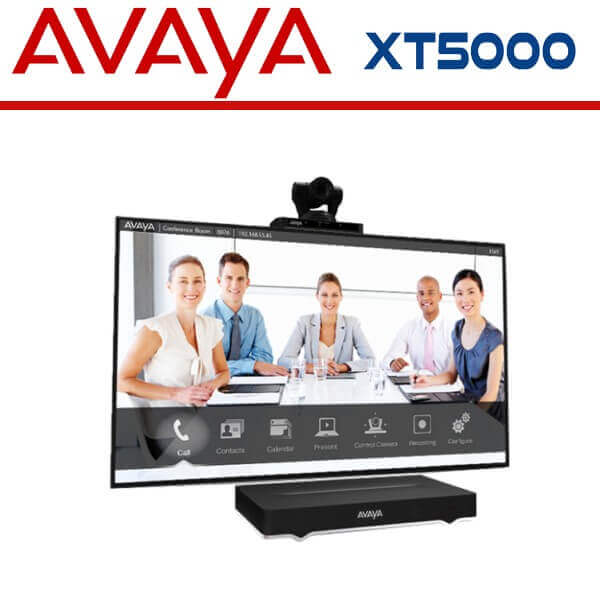

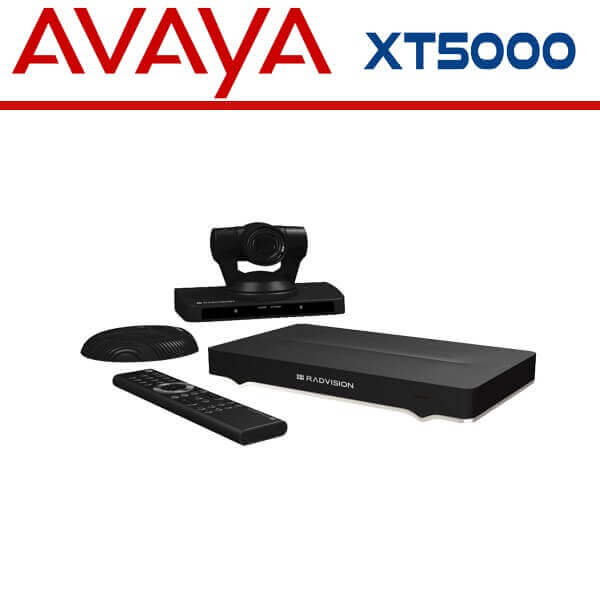

Avaya XT5000 Room System Nigeria
The Avaya XT5000 Nigeria Room System provides exceptional video, audio, and data quality along with ease-of-use designed to make users successful. The XT5000 incorporates dual 1080p 60fps live video and content, HD audio, simultaneous H.264 High Profile and Scalable Video Coding (SVC), and multi-party calling. Available PTZ cameras offer up to 20x optical zoom (12x digital) to view details and include wide-angle capability for group participation.
The second video stream can be used with an additional camera or for high resolution 60fps data and content sharing. An embedded MCU with support for continuous presence with up to 9 participants is available. The advanced audio system delivers CD-quality, 20kHz stereo audio for added presence to meetings, and the available three-way beam forming digital microphone pod isolates speakers from background noise. The user interface is designed for simplicity along with Apple iPad or iPhone control for enhanced capabilities. The Avaya XT5000 Nigeria refinement not only enhances the user experience but its modern hardware design complements any conference room.
Features
Exceptional Experience
The Avaya XT5000 Nigeria provides an exceptional meeting experience. Simultaneous HD 1080p 60fps for live video and content and CD-quality, 20kHz stereo audio deliver a comfortable, high clarity experience. H.264 High Profile provides bandwidth efficiency and H.264 Scalable Video Coding (SVC) offers high network error resiliency. The XT5000 delivers excellent performance in real-world network conditions.
Extraordinary Power
The XT5000 harnesses significant power for demanding conferencing applications. Two full 1080p 60fps video channels, H.264 High Profile and SVC, an embedded 9-way multi-party MCU, Apple iPad and iPhone control—all combine to make the XT5000 one of the most powerful video conferencing systems ever created in its class.
Intuitive, Easy to Use
Avaya XT5000 Nigeria delivers intuitive meeting control with little or no training required. With Microsoft Exchange calendar support, users can join meetings directly from the integrated calendar. The on-screen participant list gives leaders full meeting moderation, and with Avaya Screen Link, users can wirelessly present content from their laptops. Avaya Mobile Link enables seamless meeting transitions with your Avaya Workplace mobile UC application, while optional Apple iPad or iPhone control makes the system even easier to use.
Sleek and Elegant Design
The XT5000’s refinement and polish go beyond the user experience to the sleek and elegant hardware design of the system. The XT5000 is a natural fit for today’s businesses.
All-in-one, Easy to Deploy
The Avaya XT5000 Nigeria is also offered as a unique all-in-one video collaboration solution combining its room system capabilities with embedded 9-way multiparty conferencing, along with desktop and mobile connectivity for remote participants including firewall traversal. The system can also be automatically configured with minimal user intervention. A provisioning code entered at startup configures the XT5000 with a profile created through Avaya Workplace, enabling deployment without technical resources.
Specifications
| Audio Input | |
| Type | Microphone – external |
| Miscellaneous | |
| Compliant Standards | SHA-512 |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, DHCP, DNS, RTP, RTCP |
| Features | Flow control, firewall protection, NAT support, LDAP support, DiffServ support, IPv6 support, firmware upgradable, SNTP support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), IP Precedence, SSH support, IPv4 support, Type of Service (ToS), auto gatekeeper discovery |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1x |
| Input Device | |
| Type | Remote control |
| Connectivity Technology | Wireless |
| General | |
| Device Type | Video conferencing kit |
| Voice Codecs | AAC-LD |
| Security | 256-bit AES, TLS |
| Dimensions & Weight Details |
|
| Video Input | |
| Type | Digital video camera (color) – external |
| Interface Type | RS-232 |
| Digital Video Capture Resolution | 1920 x 1080 |
| Audio Output | |
| Type | Sound card |
| Sound Output Mode | Stereo |
| Modem | |
| Type | Network / ISDN modem combo wired |
| Max Transfer Rate | 12 Mbps |
| Digital Signaling Protocol | H.323, H.281, H.320, SIP, H.231, H.243, H.245, H.460.18, H.460.19, H.224 |
| Data Compression Protocol | G.711, G.728, G.722, G.729.A, H.263, H.264, H.263+, H.263++, G.722.1, G.722.1C, H.350, H.235 ver 3, H.239 |
| Features | Auto gain control, echo cancellation, DTMF decoding |
| Video Output | |
| Type | Codec board – external |
| Supported Display Graphics | VGA (640×480), XGA (1024×768), SVGA (800×600), SXGA (1280×1024), HDTV (1920×1080), 1280×960, 1600×900, HD (1280 x 720), 1280×800, 1440×900, 720×480, 1280×768, 720×576, 1024×576, 352×288, 352×240, 704×576, 704×480, 512×288, 768×448, 576×336, 400×224 |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
| Expansion / Connectivity | |
| Interfaces |
|
| Power | |
| Power Device | Power supply – internal |
| Voltage Required | AC 120/230 V (50/60 Hz) |
