Description

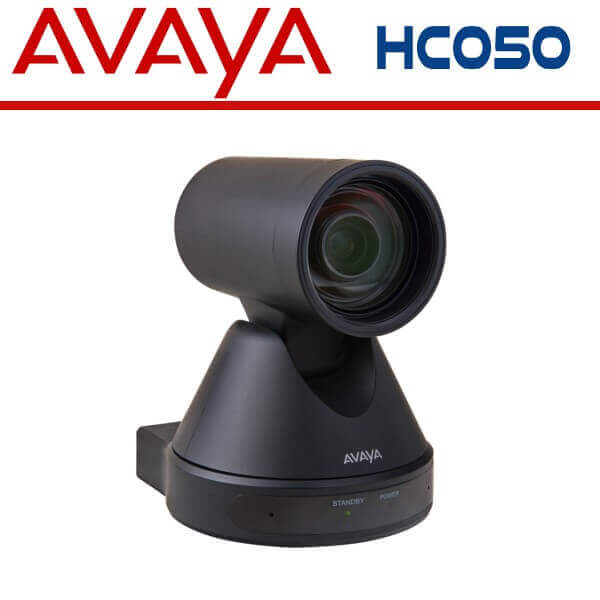

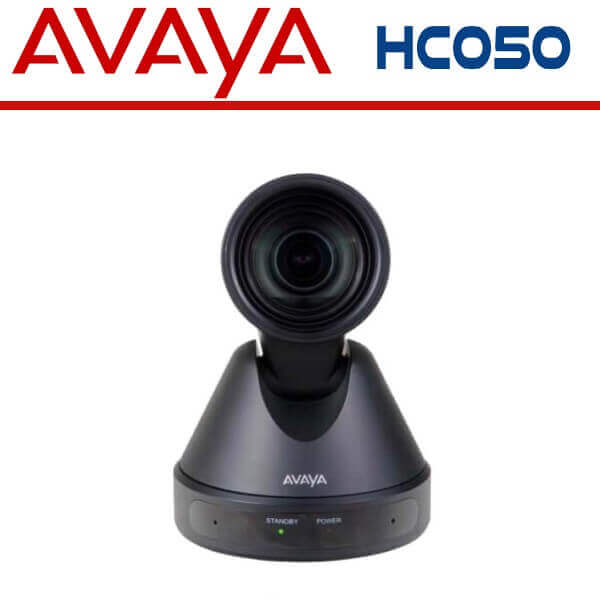

Avaya HC050 Huddle Camera Nigeria
The Avaya HC050 Nigeria Huddle Camera is designed as a simple-to-operate PTZ conference camera with a USB connection. Perfect for outfitting small meeting rooms, offices, large presentation spaces, and portable laptops, the Avaya Huddle/Presentation Camera HC050 gives you enterprise-grade quality at a lower price. You can use it with Avaya conferencing clients such as Spaces and Workplace, from where you can set and select up to 122 presets, or you can use it with popular third-party platforms such as Skype, Teams, and Zoom. It can also be integrated into Avaya XT series systems as a first or additional camera. When used with XT systems, it outputs up to a 1080p30 signal with a wide field of view, while in a standard setup it can deliver up to 1080p60.
The Avaya HC050 Nigeria Huddle Camera offers 12x optical zoom suitable for small and mid-size conference spaces. It features a built-in omnidirectional microphone with 9.8′ radius capture, and it also supports optional XT 1-way and 3-way POD microphones. Featuring a compact camera, Avaya HC050 Nigeria Huddle Camera provides RS-232 input and output control ports on the rear. When used with XT systems, it can be controlled directly from the XT Room System through a remote control, Scopia control, Web interface, APIs, and more.
Features
- Up to 1080p60 output (1080p30 output when used with Avaya XT systems)
- 12x optical zoom for small and medium rooms
- Built-in 9.8′ radius omnidirectional mic
- RS-232 input and output
- 5mm line in
- Support for optional Avaya XT POD mic systems
- Up to 122 presets
- 264 compression
- ±170° pan and ±30° tilt adjustment
- Far end camera control : through XT codec (H.224, H.281)
- Video configurations : white balance (auto/manual), focus mode (auto/manual), sharpness, backlight, exposure compensation, picture (auto/manual), and WDR level
- Compatible with Equinox Client
- 1/4″-20 mounting thread on the bottom; optional ceiling mount supported
Specifications
Image Sensor | |
Sensitivity | f/1.8 at 0.5 lux |
Camera | |
Precise Scan Rate Control | No |
Max Digital Zoom | 16x |
Built-In Microphone Type | Yes |
IR Cut Filter | No |
Lens | |
Optical Zoom Ratio | 12x |
Focal Length | 3.5 to 42.3mm |
Field of View |
|
Maximum Aperture | f/1.8 to 2.8 |
Minimum Focus Distance | Wide : 3.9″ / 10.0 cm |
Focus Control |
|
Video Output | |
Output Formats |
|
Control | |
Presets | 122 |
Tally Light | No |
Interfaces | |
Video Outputs | 1 x USB-B 3.0 / 3.1/3.2 Gen 1 |
Audio I/O | 1 x 1/8″ / 3.5 mm Mono Line Level Input |
Control I/O |
|
Bluetooth | None |
Power | |
Power I/O | 1 x Barrel / Coaxial (12 VDC) |
Power Consumption | 1 A |
General | |
Tripod Mounting Thread | 1 x 1/4″-20 Female |
Security Lock Support | None |
Physical | |
Dimensions | 6.1 x 5 x 4.6″ / 15.6 x 12.8 x 11.8 cm |
Weight | 2.01 lb / 0.91 kg |
Packaging Info | |
Package Weight | 5.715 lb |
Box Dimensions (LxWxH) | 10.2 x 9.3 x 9.1″ |
