Description

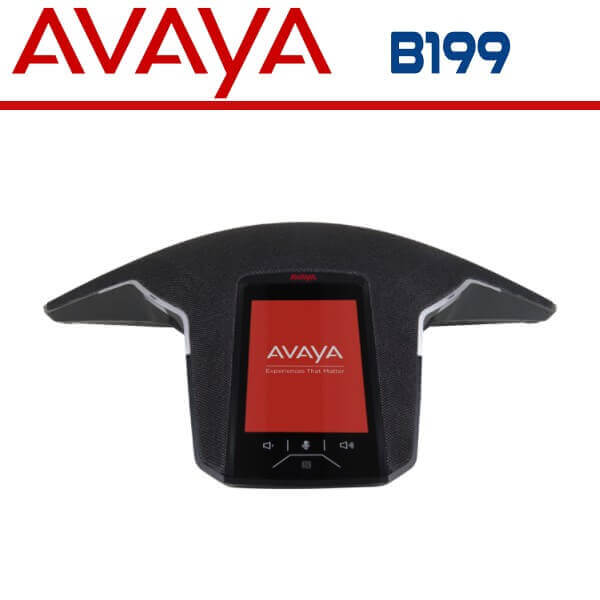

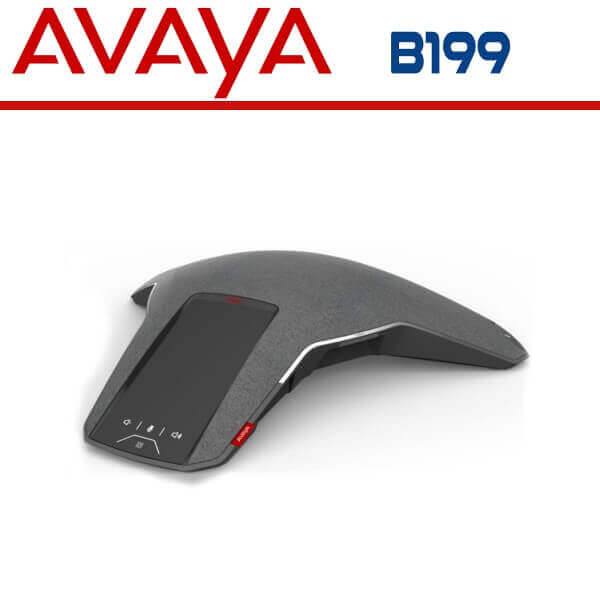

Avaya B199 Conference Phone Nigeria

The Avaya B199 Nigeria Conference Phone delivers state of the art technology to any size conference room to significantly improve the conferencing experience for all meeting participants. Avaya’s OmniSound technology creates a natural sense of presence to sense meeting room participants and allow them to move freely around the room without any audio impairment. Bluetooth capability, simple to use touch interface removes any roadblocks from connectivity, starting and managing the meeting.

Features

Crystal Clear Sound

OmniSound audio technology guarantees clear transmission during meetings, so you and your team don’t miss any part of the discussion. Full Duplex transmits and receives sound simultaneously to prevent audio clipping; 360° surround sound and powerful speakers optimize audio pick-up and broadcasting. Noise suppression filters cut static background noise and an equalizer lets you adjust pitch to suit your preference.

Perfect design

The Avaya Conference Phone Avaya B199 Nigeria received the coveted Red Dot Award for its product design. Offering remarkable flexibility to suit any conferencing audio needs, it delivers a breakthrough intuitive interface, can be daisy-chained with three devices and also provides several options for easy device management and auto provisioning.

Advance Features

Easily expand the coverage of the Avaya B199 Nigeria with available add-on smart microphones. There is OmniSound audio technology, beamforming technology and the support of digital MEMS microphones on the conference phone. In addition, the full duplex, echo cancellation, and noise suppression technology has been enhanced. Beamforming technology makes the speakers sound closer to the conference phone, helping make conversations more natural and conference participants heard better. It also provides greater freedom of movement without the loss of sound quality, such as when someone moves to the whiteboard. Avaya B199 Nigeria combines three digital microphones which are effective with up to 20 meeting participants. Adding two Avaya Smart Microphones expands the microphone range to 750 Square Feet (70 m2). For larger rooms, up to 970 Square Feet (90 m2), it is possible to connect up to three B199 units in a daisy-chain. In this kind of deployment, one device acts are the master, and the other two as additional speakers and microphones. Daisy chain connections are as simple as connecting the daisy-chain cables between units.

Specifications

General Box Contents

Avaya Conference Phone B199, Ethernet Cable 2m (6.5 feet) CAT 5E, quick reference guide, important notice document Product Documentation Quick guide and user guide in English, French, Spanish (Latam), Portuguese (Brazilian), Russian, German, Simplified Chinese, Swedish, Italian.

Dimensions

326x370x75mm (WxLxH) 12.8”x14.6”x3” (WxLxH) Weight 1.4 kg 3.1 lbs

Color

Black

Anti-theft protection

Kensington security slot

Power Requirements

PoE IEEE 802.3af/at (Class 4)
Adapter Optional PoE Injector accessory available

User Interface

Display 4.3”, 480×800, capacitive touch screen
Buttons two volume touch buttons, three mute touch buttons
Status indication Dual color LED (green/red) for off hook, mute, hold status
Mobile App Avaya Conference Assistant. Free download from Apple AppStore and Google Play
Menu languages Conference Phone User Interface in : English, French, Spanish, Portuguese, German, Simplified Chinese, Italian, Swedish, Norwegian, Finnish, Dutch and Danish
Web UI English
Avaya Conference
Assistant App English, French, Spanish, Portuguese, Russian, German, Korean, Japanese, Chinese (traditional and simplified), Italian, Turkish, Swedish, Norwegian, Finnish, Polish, Dutch, Czech and Danish

Call Features

Conference/split/hold/private, call waiting, local five-way conferencing, calling line ID

Directory

Call history

Connectivity

Ethernet 1 x Ethernet 10/100/1000Mbps, PoE IEEE 802.3af/at with 802.3at recommended. (optional power adapter available)
USB 1 x USB 3.0 host Type-A, 1 x USB 3.0 device Micro-B
Bluetooth Bluetooth LE, Bluetooth Classic and NFC supported
Expansion 2 x audio expansion ports (RJ11)

Network

Protocol SIP 2.0 (RFC 3261 and associated RFCs). Note : NOT Avaya Aura SIP-AST
Signaling UDP, TCP, TLS, and SIPS
Media protocol RTP, SRTP
Network addressing DHCP and static IP NAT
NAT traversal STUN, ICE and TURN
Security 802.1x authentication with EAP-TLS
Quality of Service DiffServ, VLAN (IEEE 802.1p/Q)
DTMF tone generation RFC 4733/2833, SIP INFO, In-band
Time server NTP, SNTP (RFC 4330)
Additional Features PCAP-log, unique host name, LLDP

Configuration and Provisioning

Configuration Via integrated web server, HTTP or HTTPS
Device management : To be updated Device Enrolment Service Future update
Admin login Separate user and administrator login for secure configuration

Audio

Speaker Frequency 80 – 14000 Hz, volume 95 dB SPL 0.5m
Microphones 3 digital MEMS microphones, pick-up range 6m/20ft
Technology OmniSound, full-duplex speech, beamforming microphones, noise cancellation, echo cancellation, comfort noise generation Codecs G.711, G.722, G.729, Opus, iLBC

Expansion Options

Wired smart expansion microphones Local acoustic echo and noise cancellation, three digital MEMS microphones, pick-up range 6m/20 ft, cable length 3m / 10 ft
Daisy Chain It is possible to cover very large conference room areas by connecting several B199 units together in a daisy chain using the audio expansion ports and daisy chain cables

Platform Support
