Description

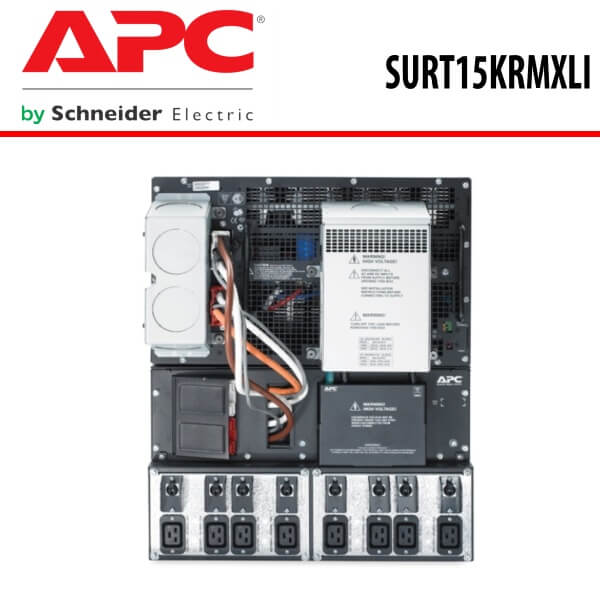

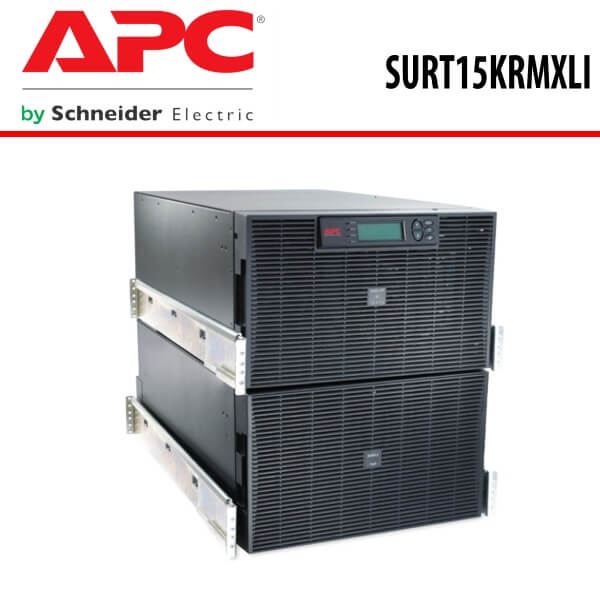

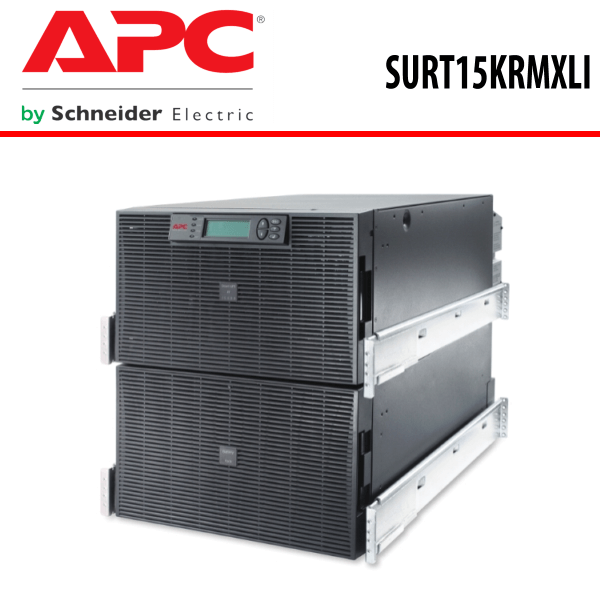

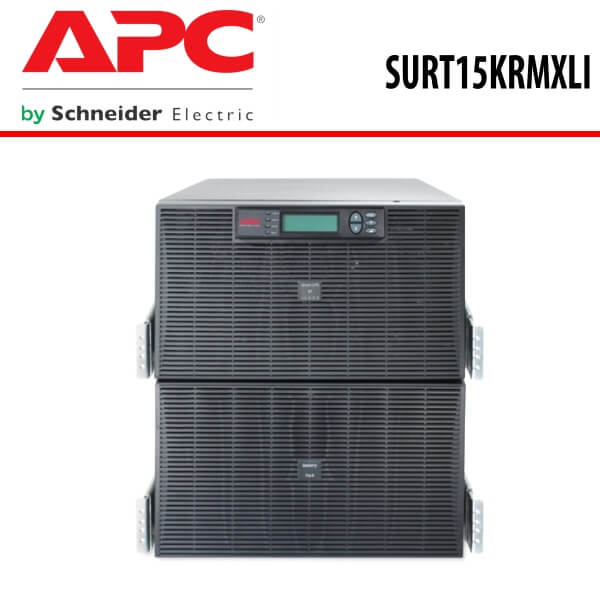

APC-SURT15KRMXLI Smart UPS Nigeria

The APC-SURT15KRMXLI Nigeria is a Smart-UPS that delivers pure sine wave output using active power factor corrected (PFC) power supplies. It meets all the safety standards measures as well as all the industry’s most rigorous performance standards. The APC-SURT15KRMXLI supports Network grade power conditioning which prevents damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation, and zero transfer time to battery during power events.

The APC SURT15KRMXLI Smart-UPS Nigeria is a high density, double-conversion on-line power protection with scalable runtime. It provides low operating and maintenance costs with proven reliability and intelligent battery management. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self-tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

APC SURT15KRMXLI Smart-UPS saves time with easy and convenient remote/network accessibility. It is network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Key Features

Dual mains input

The APC-SURT15KRMXLI Nigeria supports dual mains input which increases availability by allowing the UPS to be connected to two separate power sources.

LCD display

Alpha-Numeric Display which displays system parameters and alarms.

Manageable external batteries

APC SURT15KRMXLI Smart-UPS Nigeria comes with manageable external batteries which reduce preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.

Rack/Tower convertible

APC-SURT15KRMXLI Nigeria features a simple rack/tower-convertible design which protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Removable input/output wiring tray

Allows quick and easy installation and maintenance of the UPS.

Single or three-phase input wire able

Provides flexibility for the APC-SURT15KRMXLI Nigeria to be installed using either single or three-phase input wiring.

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Flash upgradeable firmware

Install maintenance releases of firmware remotely using FTP.

Plug-and-Play external batteries

APC-SURT15KRMXLI Nigeria comes with external batteries which ensure clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Automatic restart of loads after UPS shutdown

APC-SURT15KRMXLI Nigeria automatically starts up the connected equipment upon the return of utility power.

Scalable runtime

Allows additional run time to be quickly added as needed.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Intelligent battery management

The APC-SURT15KRMXLI Nigeria boasts of an intelligent battery management capability which maximizes battery performance, life, and reliability through intelligent, precision charging.

InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.

Intelligent Card Slot

Customize UPS capabilities with management cards.

Serial connectivity

This provides management of the APC-SURT15KRMXLI Nigeria via a serial port.

LED status indicators

Quickly understand unit and power status with visual indicators.

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Cold-start capable

APC SURT15KRMXLI Smart-UPS provides temporary battery power when the utility power is out.

Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Audible alarms

The APC-SURT15KRMXLI Nigeria has audible alarms which provide notification of changing utility power and UPS power conditions

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Technical Specifications

Output

Max Configurable Power (Watts) : 12.0kWatts / 15.0kVA
Output Voltage Note : Configurable for 380: 400 or 415 V 3 Phase nominal output voltage
Output Voltage Distortion : Less than 5 %
Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz Sync to mains
Other Output Voltages : 220 V, 240 V
Load Crest Factor : 3: 1
Topology : Double conversion online
Waveform type : Sine wave
Overload Operation : 60 seconds at 125% and 30 seconds at 150%
Bypass : Built-in static bypass, Internal bypass (automatic and manual), Optional external bypass

Input

Input frequency : 40 – 70 Hz Auto-sensing
Input voltage range for main operations : 160 – 280V
Input Total Harmonic Distortion : Less than 5 % for full load
Other Input Voltages : 220 V, 240 V
Input Power Factor at Full Load : 0.95

Batteries & Runtime

Battery type : Lead-acid battery
Included Battery Modules : 4
Typical recharge time : 2.5hour(s)
Nominal Battery Voltage : +/- 192 V (split battery referenced to neutral)
Expected Battery Life (years) : 3 – 5
RBC Quantity : 4
Battery Charge Power (Watts) : 1.53kWatts
Extendable Run Time : 1
Efficiency in Battery Operation : 93.0 %

Communications & Management

Interface Port(s) : DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot
Pre-Installed SmartSlot Cards : Control panel; Multifunction LCD status and control console
Audible Alarm : Audible and visible alarms: configurable delays
Emergency Power Off (EPO) : Yes
