Description

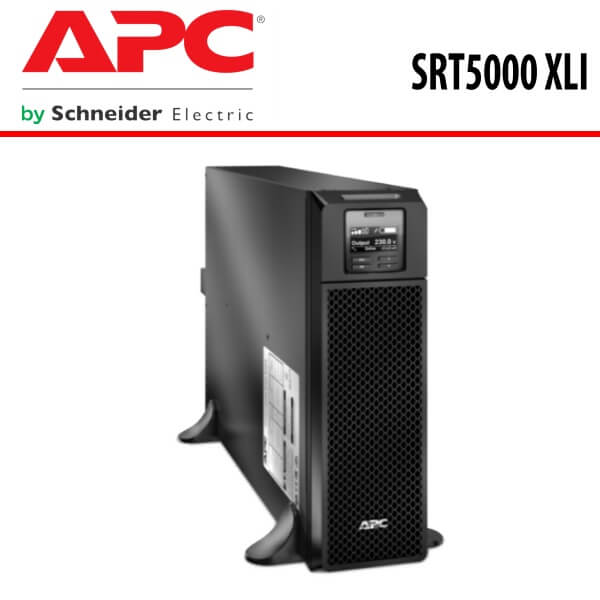

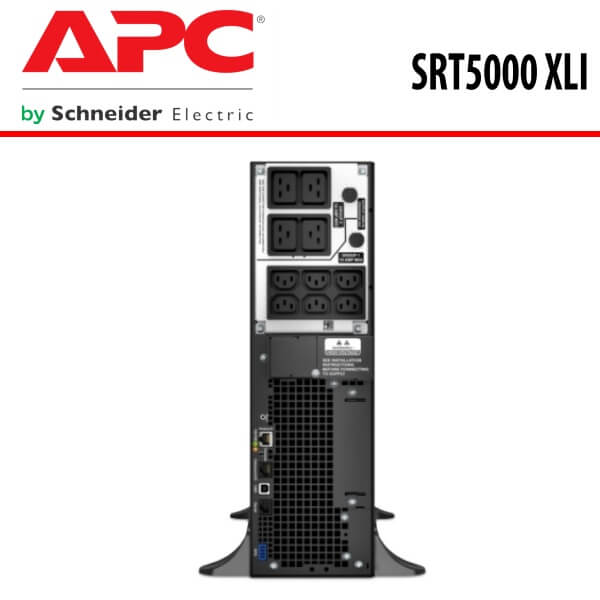

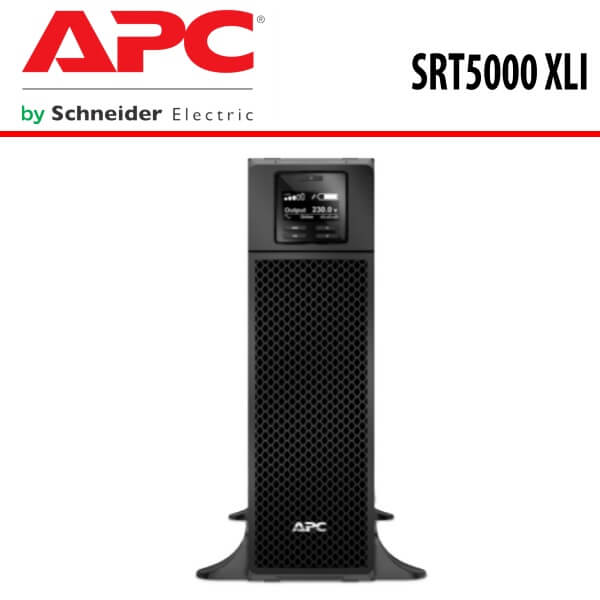

APC SRT5000 XLI Smart UPS Nigeria

The APC SRT5000-XLI Nigeria provides low operating and maintenance costs with proven reliability and intelligent battery management. Equipped with intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self-tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. APC SRT5000 XLI Nigeria provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Key Features

Power conditioning

The APC SRT5000 XLI Nigeria smart UPS protects connected loads from surges, spikes, lightning, and other power disturbances.

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Battery failure notification

APC SRT5000 XLI Smart-UPS Nigeria provides early-warning fault analysis on batteries enabling timely preventive maintenance

ECO Mode

The APC SRT5000 XLI Nigeria is integrated with an operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Resettable circuit breakers

The APC SRT5000 XLI Nigeria enables a quick recovery from overload events.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Serial connectivity

Provides management of the UPS via a serial port.

USB connectivity

Provides management of the UPS via a USB port (not available on all models).

LED status indicators

Quickly understand unit and power status with visual indicators.

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Audible alarms

Provides notification of changing utility power and UPS conditions.

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Safety-agency approved

The APC SRT5000 XLI Nigeria has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Technical Specifications

Output

Max Configurable Power (Watts) : 4.5kWatts / 5.0kVA
Output Voltage Distortion : Less than 2 %
Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages : 220 V, 240 V
Load Crest Factor : 3: 1
Topology : Double conversion online
Waveform type : Sine wave
Bypass : Internal bypass (automatic and manual)

Input

Input frequency : 40 – 70 Hz Auto-sensing
Input voltage range for main operations : 100 – 275 Adjustable (half load) V
Other Input Voltages : 220 V, 240 V

Batteries & Runtime

Battery type : Lead-acid battery
Typical recharge time : 1.5hour(s)
Nominal Battery Voltage : 192 V
Expected Battery Life (years) : 3 – 5
RBC Quantity : 1
Battery Charge Power (Watts) : 560 Watts
Extendable Run Time : 1

Communications & Management

Interface Port(s) : RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Control panel : Multifunction LCD status and control console
Audible Alarm : Audible and visible alarms prioritized by severity
Emergency Power Off (EPO) : Yes
Available SmartSlot™ Interface Quantity : 1

Surge Protection and Filtering

Surge energy rating : 480Joules

Physical

Maximum Height : 130MM, 13.0CM
Maximum Width : 432MM, 43.2CM
Maximum Depth : 719MM, 71.94CM
Net Weight : 54.43KG
Shipping weight : 66.86KG
Shipping Height : 330MM, 33.0CM
Shipping Width : 610MM, 61.0CM
Shipping Depth : 960MM, 96.0CM
Color : Black
Units per Pallet : 6.0

Environmental

Operating Temperature : 0 – 40 °C
Operating Relative Humidity : 0 – 95 (Non-condensing) %
Operating Elevation : 0 – 3048meters
Storage Temperature : -15 – 45 °C
Storage Relative Humidity : 0 – 95 (Non-condensing) %
Storage Elevation : 0 – 15240meters
Audible noise at 1 meter from surface of unit : 55.0dBA
Online thermal dissipation : 931.0BTU/hr
Protection Class : IP20

Conformance

Approvals : CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Standard warranty : 3 years repair or replace (excluding battery) and 2 years for battery
