APC SRT2200 XLI Nigeria

Rating

APC SRT2200 XLI Nigeria

The APC SRT2200 XLI Nigeria is your companion when it comes to protecting your servers, storage and networks hardware. With its 1980W worth of power it is trusted to protect critical data and equipment from power problems.

Category:

Description

APC SRT2200 XLI Smart UPS Nigeria

The APC SRT2200 XLI Nigeria is an ideal solution for protecting file servers, minicomputers, network switches, hubs, point of sale systems & ATMs from losing power.  It offers digital line interactive sinewave technology and  also features an LCD display which gives a clear status of the UPS while also giving a hot-swap battery option & various connectivity options.

The APC SRT2200 XLI Nigeria is your companion when it comes to protecting your servers, storage and networks hardware. With its 1980W worth of power it is trusted to protect critical data and equipment from power problems.

APC SRT2200 XLI Features

  • Battery failure notification
    APC SRT2200 XLI Nigeria is integrated with a battery failure notification which provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • ECO Mode
    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Rack/Tower convertible
    The APC SRT2200 XLI Nigeria has a rack/tower convertible design which protects the initial investment when migrating from tower to rack-mount environment

Technical Specifications

Output

  • Output power capacity

    1.98 KWatts / 2.2 kVA

  • Max Configurable Power (Watts)

    1.98 KWatts / 2.2 kVA

  • Nominal Output Voltage

    230V

  • Output Voltage Distortion

    Less than 2%

  • Output Frequency (sync to mains)

    50/60Hz +/- 3 Hz

  • Other Output Voltages

    220, 240

  • Load Crest Factor

    3 : 1

  • Topology

    Double Conversion Online

  • Waveform type

    Sine wave

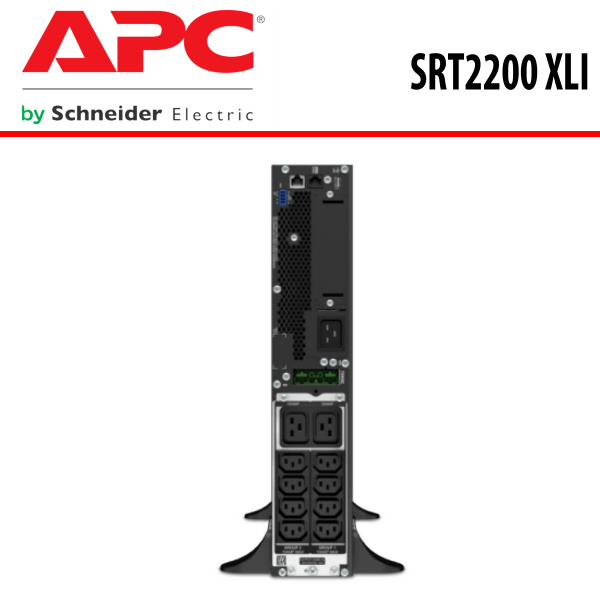

  • Output Connections
    (8) IEC 320 C13 (Battery Backup)
    (2) IEC Jumpers (Battery Backup)
    (2) IEC 320 C19 (Battery Backup)
  • Bypass

    Built-in Bypass

Input

  • Nominal Input Voltage

    230V

  • Input frequency

    40 – 70 Hz (auto sensing)

  • Input Connections

    IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A

  • Cord Length

    2.44meters

  • Input voltage range for main operations

    160 – 275V

  • Input voltage adjustable range for mains operation

    100 – 275 (half load)V

  • Number of Power Cords

    1

  • Other Input Voltages

    220, 240

Batteries & Runtime

  • Battery type

    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

  • Included Battery Modules

    1

  • Typical recharge time

    3hour(s)

  • Nominal Battery Voltage

    72V

  • Expected Battery Life (years)

    3 – 5

  • RBC Quantity

    1

  • Extendable Run Time

    1

Communications & Management

  • Interface Port(s)

    RJ-45 Serial , Smart-Slot , USB

  • Control panel

    Multi-function LCD status and control console

  • Audible Alarm

    Audible and visible alarms prioritized by severity

  • Emergency Power Off (EPO)

    Yes

  • Available SmartSlot Interface Quantity

    1

Surge Protection and Filtering

  • Surge energy rating

    340Joules

  • Filtering

Physical

  • Maximum Height

    85mm , 8.5CM

  • Maximum Width

    432mm , 43.2CM

  • Maximum Depth

    584mm , 58.4CM

  • Rack Height

    2U

  • Net Weight

    25.0KG

  • Shipping Weight

    34.02KG

  • Shipping Height

    246mm , 24.6CM

  • Shipping Width

    599mm , 59.9CM

  • Shipping Depth

    810mm , 81.0CM

  • Color

    Black

  • Units per Pallet

    12.0

Features

  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • ECO Mode
    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Rack/Tower convertible
    Protects the initial investment in the UPS when migrating from tower to rack-mount environment

Technical Specifications

Output

  • Output power capacity

    1.98 KWatts / 2.2 kVA

  • Max Configurable Power (Watts)

    1.98 KWatts / 2.2 kVA

  • Nominal Output Voltage

    230V

  • Output Voltage Distortion

    Less than 2%

  • Output Frequency (sync to mains)

    50/60Hz +/- 3 Hz

  • Other Output Voltages

    220, 240

  • Load Crest Factor

    3 : 1

  • Topology

    Double Conversion Online

  • Waveform type

    Sine wave

  • Output Connections
    (8) IEC 320 C13 (Battery Backup)
    (2) IEC Jumpers (Battery Backup)
    (2) IEC 320 C19 (Battery Backup)
  • Bypass

    Built-in Bypass

Input

  • Nominal Input Voltage

    230V

  • Input frequency

    40 – 70 Hz (auto sensing)

  • Input Connections

    IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A

  • Cord Length

    2.44meters

  • Input voltage range for main operations

    160 – 275V

  • Input voltage adjustable range for mains operation

    100 – 275 (half load)V

  • Number of Power Cords

    1

  • Other Input Voltages

    220, 240

Batteries & Runtime

  • Battery type

    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

  • Included Battery Modules

    1

  • Typical recharge time

    3hour(s)

  • Nominal Battery Voltage

    72V

  • Expected Battery Life (years)

    3 – 5

  • RBC Quantity

    1

  • Extendable Run Time

    1

Communications & Management

  • Interface Port(s)

    RJ-45 Serial , Smart-Slot , USB

  • Control panel

    Multi-function LCD status and control console

  • Audible Alarm

    Audible and visible alarms prioritized by severity

  • Emergency Power Off (EPO)

    Yes

  • Available SmartSlot Interface Quantity

    1

Surge Protection and Filtering

  • Surge energy rating

    340Joules

  • Filtering

Physical

  • Maximum Height

    85mm , 8.5CM

  • Maximum Width

    432mm , 43.2CM

  • Maximum Depth

    584mm , 58.4CM

  • Rack Height

    2U

  • Net Weight

    25.0KG

  • Shipping Weight

    34.02KG

  • Shipping Height

    246mm , 24.6CM

  • Shipping Width

    599mm , 59.9CM

  • Shipping Depth

    810mm , 81.0CM

  • Color

    Black

  • Units per Pallet

    12.0
