Description

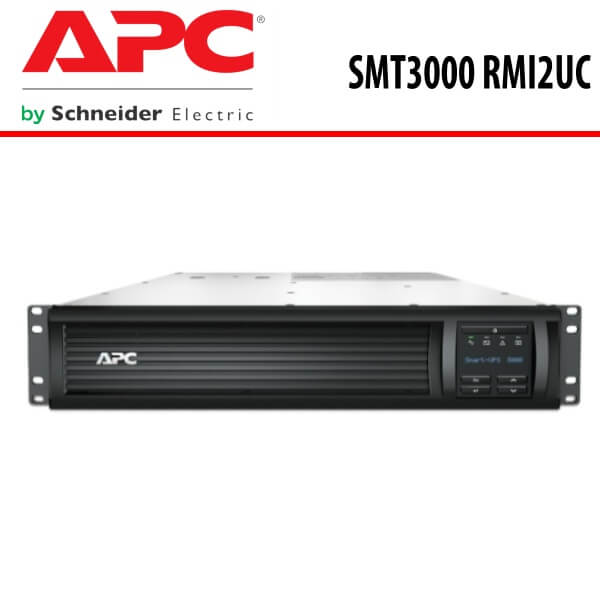

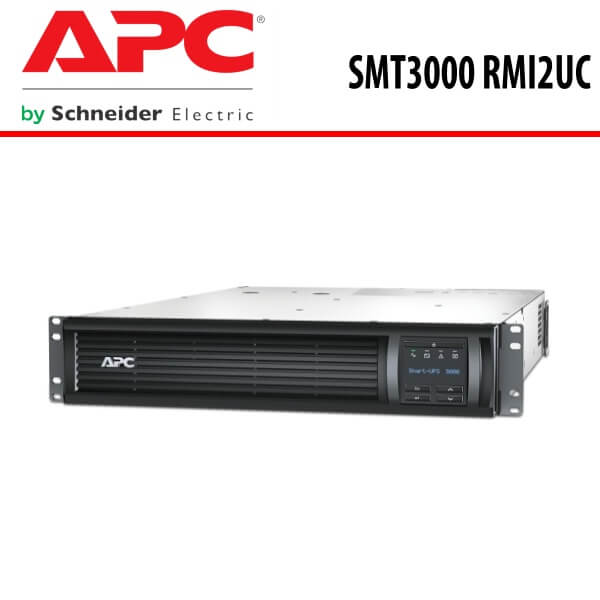

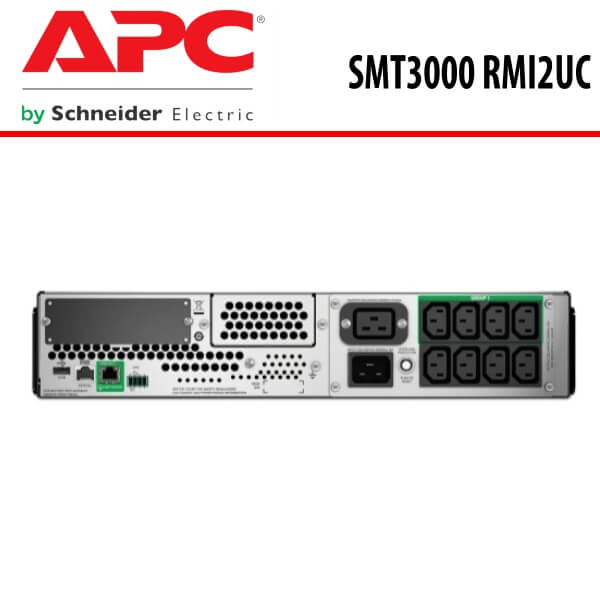

APC SMT3000 RMI2UC Smart-UPS Nigeria

The APC SMT3000 RMI2UC Nigeria packs intuitive LCD interface that provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Also access over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications. Enjoy your peace of mind that comes with full equipment compatibility and reliability of a leader. APC SMT3000 RMI2UC Nigeria provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards. APC SMT3000 RMI2UC Smart-UPS is network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities

Key Features

Adjustable voltage sensitivity

APC SMT3000 RMI2UC Nigeria allows for adjustment of voltage sensitivity which provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Audible alarms

The APC SMT3000 RMI2UC Nigeria has audible alarms which provide notification of changing utility power and UPS power conditions

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Cold-start capable

APC SMT3000 RMI2UC Smart-UPS provides temporary battery power when the utility power is out.

Disconnected battery notification

APC SMT3000 RMI2UC Smart-UPS warns when a battery is not available to provide backup power.

Energy meter

Provides actual kilowatt hours of usage for energy conscious users.

Frequency and voltage regulation

The a gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency

Reduces utility costs, generates less heat.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Outlet group control

Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Serial connectivity

Provides management of the UPS via a serial port.

Single switched outlet group

Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

StruxureWare Data Center Expert compatible

APC SMT3000 RMI2UC Smart-UPS enables centralized management via StruxureWare Data Center Expert.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

USB connectivity

Provides management of the UPS via a USB port (not available on all models).

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Wide input voltage range

Designed for harsh electrical environments to save battery life.

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Resettable circuit breakers

Enables a quick recovery from overload events.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Serial connectivity

Provides management of the APC SMT3000 RMI2UC Nigeria via a serial port.

USB connectivity

Provides management of the UPS via a USB port (not available on all models).

LED status indicators

Quickly understand unit and power status with visual indicators.

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Audible alarms

Provides notification of changing utility power and UPS conditions.

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Technical Specifications

Output

Max Configurable Power (Watts) : 2.7kWatts / 3.0kVA
Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
Output Frequency (sync to mains) : 47 – 53 Hz For 50 Hz nominal Sync to mains, 57 – 63 Hz For 60 Hz nominal Sync to mains
Other Output Voltages : 220 V, 240 V
Topology : Line interactive
Waveform type : Sine wave
Transfer Time : 4 ms typical : 8 ms maximum

Input

Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations : 151 – 302 Adjustable, 160 – 286V
Number of Power Cords : 1
Other Input Voltages : 220 V, 240 V

Batteries & Runtime

Battery type : Lead-acid battery
Typical recharge time : 3hour(s)
Expected Battery Life (years) : 3 – 5
RBC Quantity : 1
Battery Charge Power (Watts) : 182 Watts

Communications & Management

Interface Port(s) : USB
Control panel : LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console
Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays
Available SmartSlot Interface Quantity : 1

Surge Protection and Filtering

Surge energy rating : 320Joules

Physical

Maximum Height : 86MM, 8.6CM
Maximum Width : 480MM, 48.0CM
Maximum Depth : 683MM, 68.3CM
Net Weight : 44.28KG
Shipping weight : 51.7KG
Shipping Height : 254MM, 25.4CM
Shipping Width : 600MM, 60.0CM
Shipping Depth : 980MM, 98.0CM
Units per Pallet : 8.0

Environmental

Operating Temperature : 0 – 40 °C
Operating Relative Humidity : 0 – 95 %
Operating Elevation : 0 – 3048meters
Storage Temperature : -15 – 45 °C
Storage Relative Humidity : 0 – 95 %
Storage Elevation : 0 – 15240meters
Audible noise at 1 meter from surface of unit : 55.0dBA
Online thermal dissipation : 348.0BTU/hr

Conformance

Approvals : CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE
Standard warranty : 3 years repair or replace (excluding battery) and 2 years for battery
