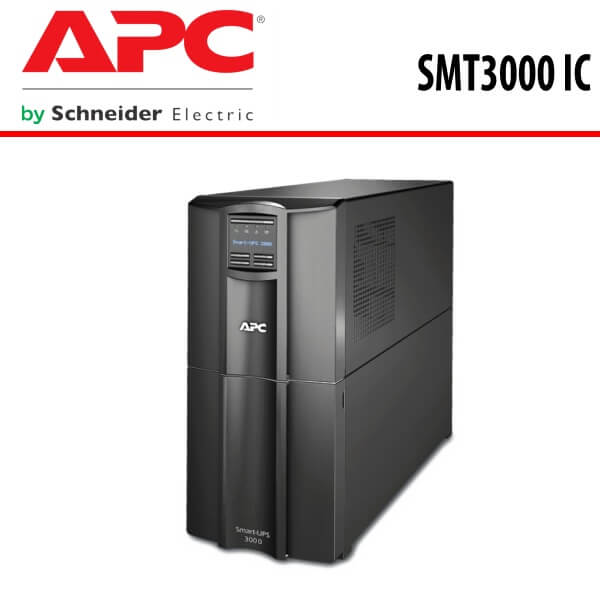

APC SMT3000 IC Nigeria

The APC SMT3000 IC Nigeria has a temperature-compensated battery charging system that prolongs battery life by regulating the charge voltage according to battery temperature.

Category:

Description

APC SMT3000 IC Smart UPS Nigeria

The APC SMT3000 IC Nigeria offers Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and others. It is supplied with a CD with software, Documentation CD, Smart UPS signaling RS-232 cable, and a USB cable. The smart UPS comes integrated with cloud-based remote power monitoring that offers reliable UPS firmware upgrades from time to time. The APC SMT3000 IC Nigeria is capable of cold-starting so as to provide temporary battery power when the utility power is out. Integrated Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection, while LCD Status Display provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs. APC SMT3000 IC Nigeria boasts of a SmartConnect, an easy-to-use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. What’s more, the APC SMT3000 IC Nigeria has a temperature-compensated battery charging system that prolongs battery life by regulating the charge voltage according to battery temperature.

Features

  • Cold-start capable
    The APC SMT3000 IC Nigeria is cold-start capable, thus providing temporary battery power when the utility power is out.
  • Energy meter
    Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency
    Reduces utility costs, generates less heat.
  • Intelligent Card Slot
    Customize UPS capabilities with management cards.
  • Intuitive LCD interface
    The APC SMT3000 IC Nigeria has an intuitive LCD interface which provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Predictive replace battery date
    Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery
    Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Sequenced network shutdown and reboot
    Customize network shutdown and reboot sequence of connected servers and UPSs.
  • Single switched outlet group
    Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • SmartConnect
    Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
  • StruxureWare Data Center Expert compatible
    Enables centralized management via StruxureWare Data Center Expert.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature

Technical Specifications

Output

Max Configurable Power (Watts)

2.7kWatts / 3.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 5 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Topology

Line interactive

Waveform type

Sine wave

Transfer Time

6 ms typical : 10 ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

151 – 302 Adjustable, 160 – 286V

Number of Power Cords

1

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Replacement Battery

RBC55

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

271 Watts

Extendable Run Time

1

Communications & Management

Interface Port(s)

SmartSlot, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

Yes

Available SmartSlot Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

365Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

435MM, 43.5CM

Maximum Width

197MM, 19.7CM

Maximum Depth

544MM, 54.4CM

Net Weight

52.5KG

Shipping weight

63.7KG

Shipping Height

699MM, 69.9CM

Shipping Width

381MM, 38.1CM

Shipping Depth

762MM, 76.2CM

Color

Black

Units per Pallet

9.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %
Storage Elevation
0 – 15240meters

Audible noise at 1 meter from surface of unit

53.0dBA

Online thermal dissipation

375.0BTU/hr

Conformance

Approvals

CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status

RoHS

Compliant
