Description

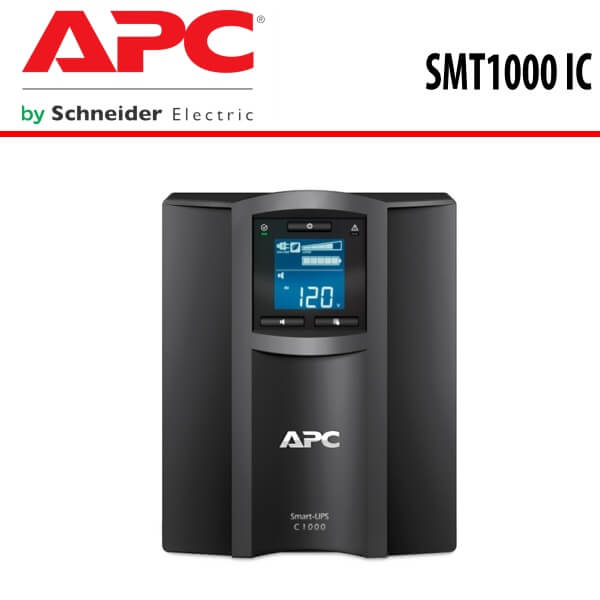

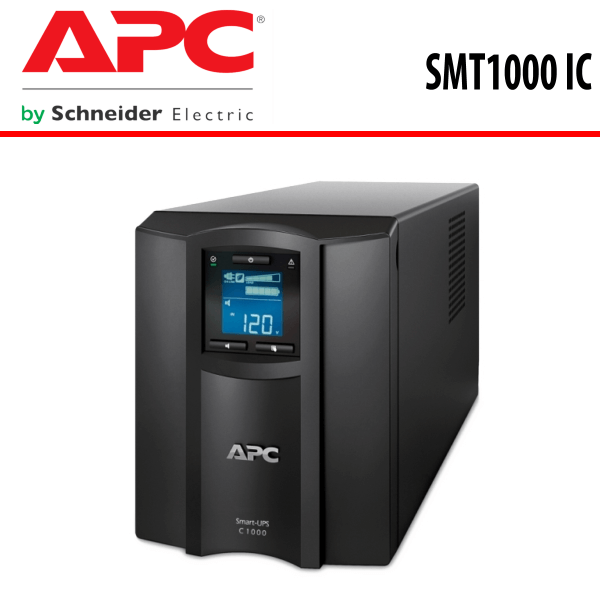

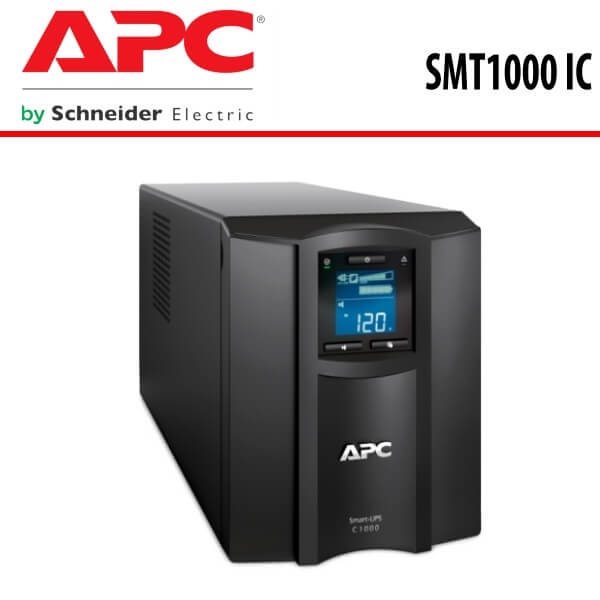

APC SMT1000 IC Smart UPS Nigeria

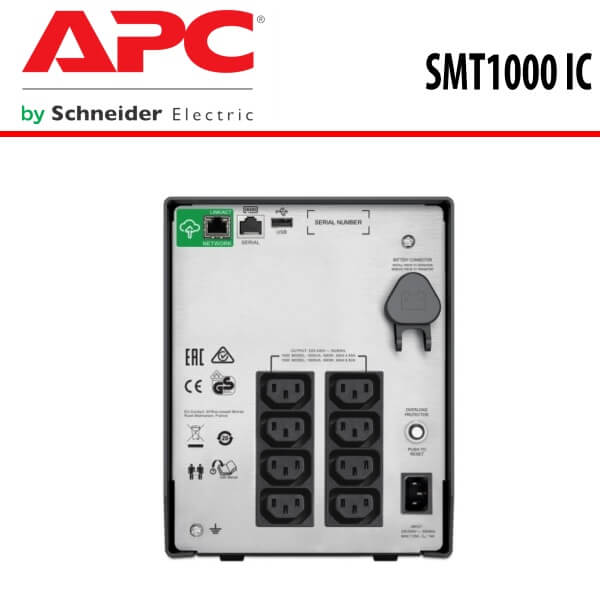

The APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. APC SMT1000 IC Nigeria offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Key Features
Cold-start capable
Provides temporary battery power when the utility power is out.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
APC SMT1000 IC Nigeria reduces utility costs, generates less heat.
LCD Status Display
APC SMT1000 IC Nigeria provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
Temperature-compensated battery charging
APC SMT1000 IC Nigeria prolongs battery life by regulating the charge voltage according to battery temperature.
Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.
Battery failure notification
APC SMT1000 IC Nigeria provides early-warning fault analysis on batteries enabling timely preventive maintenance
Resettable circuit breakers
Enables a quick recovery from overload events.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
APC SMT1000 IC Nigeria has USB connectivity provides management of the UPS via a USB port (not available on all models).
LED status indicators
Quickly understand unit and power status with visual indicators.
Network manageable
Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
Audible alarms
Provides notification of changing utility power and UPS conditions.
Adjustable voltage sensitivity
Provides the ability to adapt the APC SMT1000 IC Nigeria for optimal performance in specific power environments or generator applications.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Disconnected battery notification
APC SMT1000 IC Nigeria warns when a battery is not available to provide backup power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Technical Specifications
Output
- Max Configurable Power (Watts) : 600 Watts / 1.0kVA
- Output Voltage Distortion : Less than 5 %
- Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
- Other Output Voltages : 220 V, 240 V
- Topology : Line interactive
- Waveform type : Sine wave
- Transfer Time : 6 ms typical: 10 ms maximum
Input
- Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
- Input voltage range for main operations : 170 – 300 Adjustable, 180 – 287V
- Other Input Voltages : 220 V, 240 V
Batteries & Runtime
- Battery type : Lead-acid battery
- Typical recharge time : 3hour(s)
- Expected Battery Life (years) : 3 – 5
Communications & Management
- Interface Port(s) : RJ-45 Serial, USB
- Control panel : Multifunction LCD status and control console
- Audible Alarm : Alarm when on battery: distinctive low battery alarm: configurable delays
Surge Protection and Filtering
- Surge energy rating : 455Joules
Filtering
- Full time multi-pole noise filtering : 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449
Physical
- Maximum Height : 219MM, 21.9CM
- Maximum Width : 171MM, 17.1CM
- Maximum Depth : 439MM, 43.9CM
- Net Weight : 17.27KG
- Shipping weight : 19.55KG
- Shipping Height : 376MM, 37.6CM
- Shipping Width : 328MM, 32.8CM
- Shipping Depth : 595MM, 59.5CM
- Color : Black
- Master Carton Units : 1.0
- Units per Pallet : 18.0
Environmental
- Operating Temperature : 0 – 40 °C
- Operating Relative Humidity : 0 – 95 %
- Operating Elevation : 0 – 3048meters
- Storage Temperature : -15 – 45 °C
- Storage Relative Humidity : 0 – 95 %
- Storage Elevation : 0 – 15240meters
- Audible noise at 1 meter from surface of unit : 41.0dBA
- Online thermal dissipation : 100.0BTU/hr
Conformance
- Approvals : CE, GOST, UL 1778, VDE
- Standard warranty : 2 years repair or replace
Sustainable Offer Status
- RoHS : Compliant
