Description

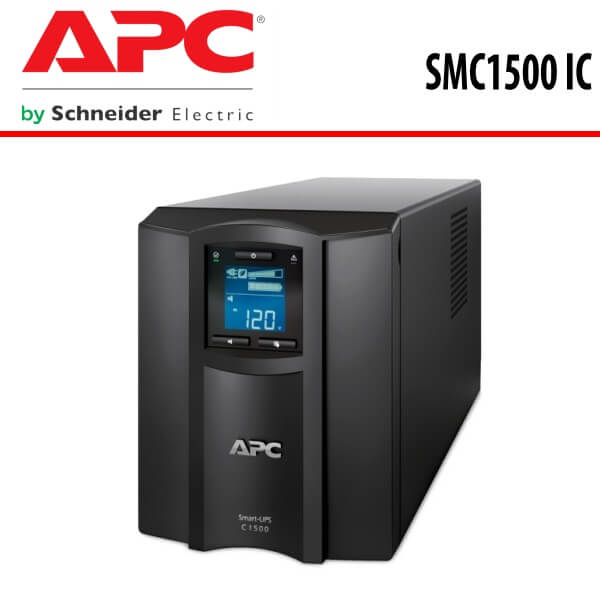

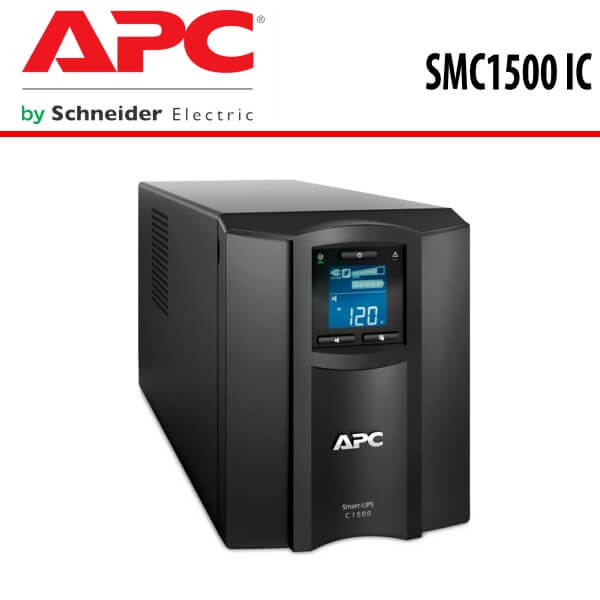

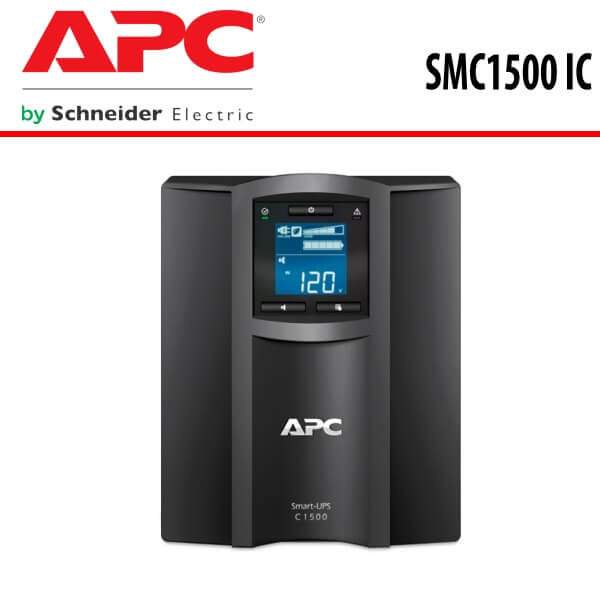

APC SMC1500 IC Smart UPS Nigeria
The APC SMC1500 IC Nigeria is an APC Smart-UPS is designed for small to medium business users to maintain business uptime and continuity. This 1500VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The APC SMC1500 IC Nigeria offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS C has an intuitive graphic LCD interface. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This line interactive UPS operates in green mode for high operating efficiency. The SMC has built-in lead-acid battery and is covered by a 2-year UPS warranty. The APC SMC1500 IC Nigeria provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Features
- 1500VA/900W line interactive pure sine wave tower UPS
- Ideal for entry-level servers, networks, retail POS, business VOIP and desktops
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Business Edition
Technical Specs
| Overview | |
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
| Lead time | Usually Ships within 2 Weeks |
| Main | |
| Max. Capacity Used
information_stroke |
100 %
|
| Main Input Voltage | 230 V |
| Other Input Voltage |
|
| Main Output Voltage | 230 V |
| Other Output Voltage |
|
| Rated power in W | 900 W |
| Rated power in VA | 1500 VA |

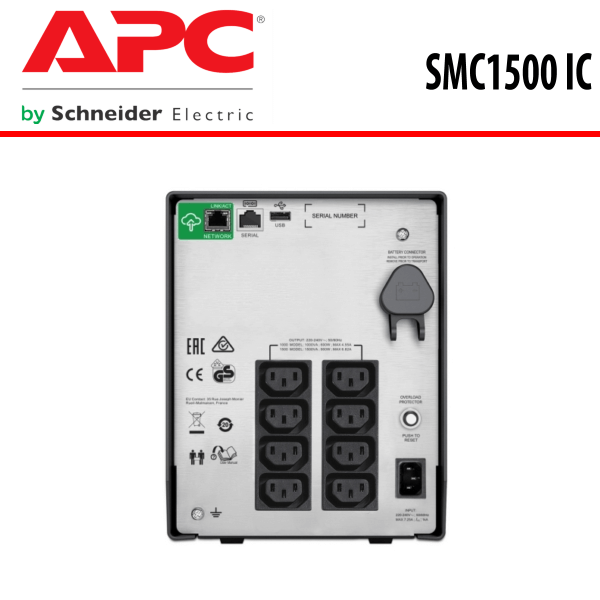

| Input Connection Type | IEC 320 C14 |
| output connection type |
|
| Battery type | Lead-acid battery |
| provided equipment | USB cable |
| General | |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| product web sub-family | Cloud-enabled monitoring |
| Redundant | No |
| Physical | |
| colour | Black |
| Height | 21.9 cm |
| Width | 17.1 cm |
| Depth | 43.9 cm |
| Net weight | 20.1 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Input | |
| input voltage limits |
|
| network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output | |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 1500 VA |
| Maximum configurable power in W | 900 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Conformance | |
| Product certifications |
|
| standards |
|
| Environmental | |
| Acoustic level | 45 dBA |
| Heat dissipation | 135 Btu/h |
| Operating altitude | 0…10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…15240.00 m |
| relative humidity | 0…95 % |
| storage Relative Humidity | 0…95 % |
| Batteries & Runtime | |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | RBC6 |
| Battery power in VAH | 288 VAh runtime |
| battery charger power | 96 W rated |
| Communications & Management | |
| alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| control panel | Multifunction LCD status and control console |
| Free slots | 0 |
| alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Surge Protection and Filtering | |
| Surge energy rate | 459 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 33 cm |
| Package 1 Width | 59 cm |
| Package 1 Length | 33 cm |
| Package 1 Weight | 22.64 kg |
