APC BV800I MSX Nigeria

Rating

APC BV800I MSX Nigeria

The APC BV800I MSX Nigeria provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments. Wall-mount holes on the APC-BV800I-MSX Allow flexibility for setup in tight locations and mounting on wall or other surfaces.

Category:

Description

APC BV800I MSX Smart UPS Nigeria

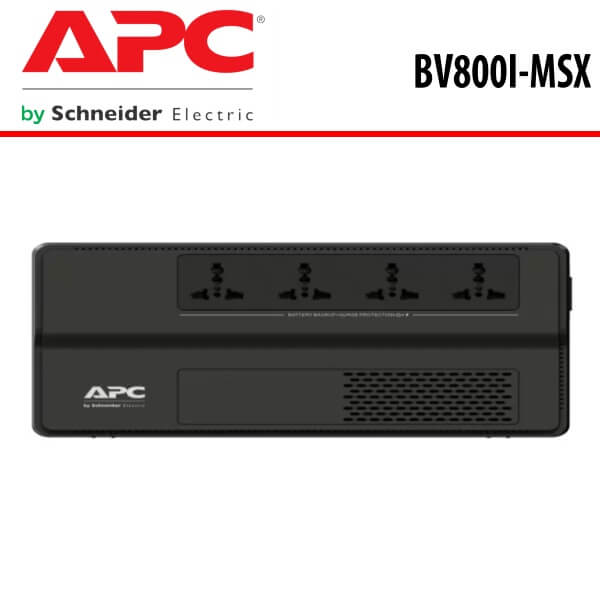

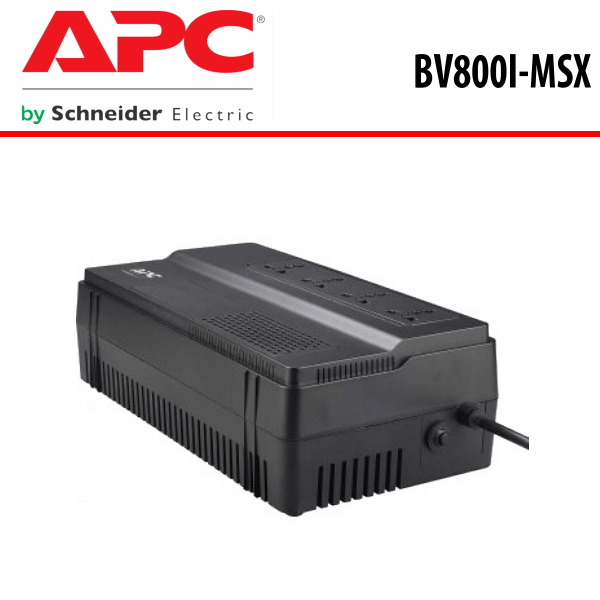

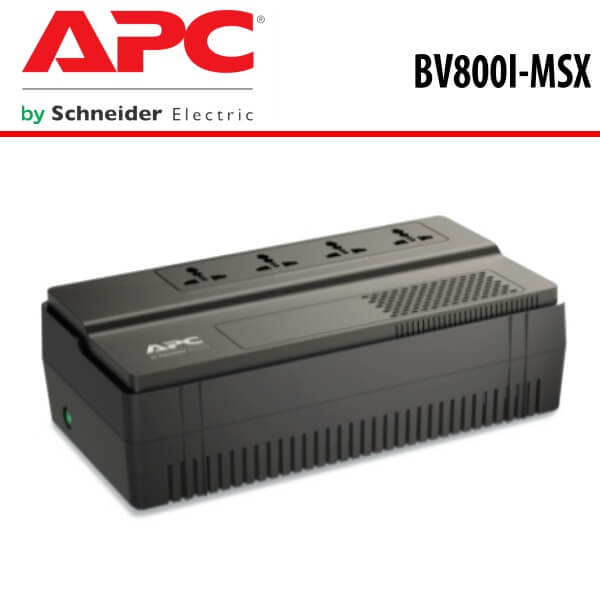

The APC BV800I MSX Nigeria is an Easy UPS which provides power protection for unstable power conditions in homes and small offices, ensuring consistent and reliable connectivity at the most critical moments. The 800VA floor/wall mount UPS has 4 total outlets, all of which provide battery back up and surge protection. It has a surge energy rating of 156 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty and CE product certification.

Features

  • Easy UPS BV 800VA AVR Universal Outlet 230V : APC BV800I MSX Nigeria provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
  • This UPS automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment thanks to Automatic Voltage Regulation (AVR)

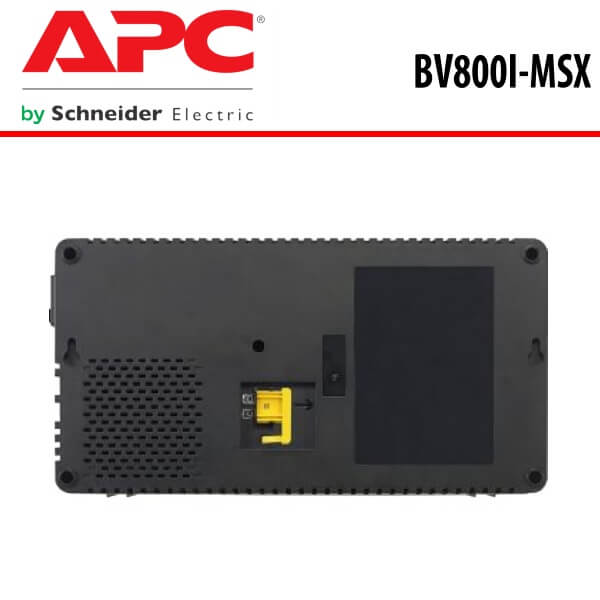

  • Wall-mount holes on the APC BV800I MSX Nigeria Allow flexibility for setup in tight locations and mounting on wall or other surfaces.
  • Audible alarms provides notification of changing utility power and UPS power conditions. Consequently, LED Indicators provide easy-to-read status of the unit and utility power conditions.
  • Battery and surge protected outlets back up and protect your hardware and data during power outages, surges and spikes.
  • APC BV800I MSX Nigeria also features battery failure notification which provides early-warning fault analysis on batteries enabling timely preventive maintenance. Intelligent battery management also maximizes battery performance, life, and reliability through intelligent, precision charging.
  • APC 800VA UPS is cold-start capable and hence provides temporary battery power when the utility power is out.
  • Slim, modern design thus the APC BV800I MSX Nigeria can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home decor.

Technical Specs

Overview
Lead time Usually in Stock
Main
Main Input Voltage 230 V
Main Output Voltage 230 V
Rated power in W 450 W
Rated power in VA 800 VA
Input Connection Type BS1363A British
output connection type 4 universal receptacle
Cable length 1.50 m
number of cables 1
Battery type Lead-acid battery
provided equipment User manual
General
Number of power module free slots 0
Number of power module filled slots 0
Redundant No
UPS size WS
Physical
colour Black
Height 9.25 cm
Width 16.05 cm
Depth 30.5 cm
Net weight 5.3 kg
Mounting preference No preference
Mounting mode Not rack-mountable
Two post mountable 0
USB compatible No
Input
network frequency 50/60 Hz +/- 5 Hz auto-sensing
input voltage limits 170…280 V
Output
Maximum configurable power in W 450 W
output frequency 50/60 Hz +/- 1 Hz unsynchronised
UPS type Line interactive
Wave type Stepped approximation to a sinewave
Graph display 1
Maximum configurable power in VA 800 VA
Transfer time 6 ms typical : 10 ms maximum
Conformance
Product certifications CE
standards
  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018
Environmental
Ambient air temperature for operation 0…40 °C
relative humidity 0…90 %
Operating altitude 0…6667 ft
Ambient air temperature for storage -20…50 °C
storage Relative Humidity 0…90 %
Storage altitude 0.00…15240.00 m
Acoustic level 40 dBA
IP degree of protection IP20
Batteries & Runtime
Number of battery filled slots 0
Number of battery free slots 0
Battery life 3…5 year(s)
Extended runtime 0
Communications & Management
alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rate 156 J
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 23.7 cm
Package 1 Width 37.3 cm
Package 1 Length 14.3 cm
Package 1 Weight 5.6 kg
SCC14 10731304344084
