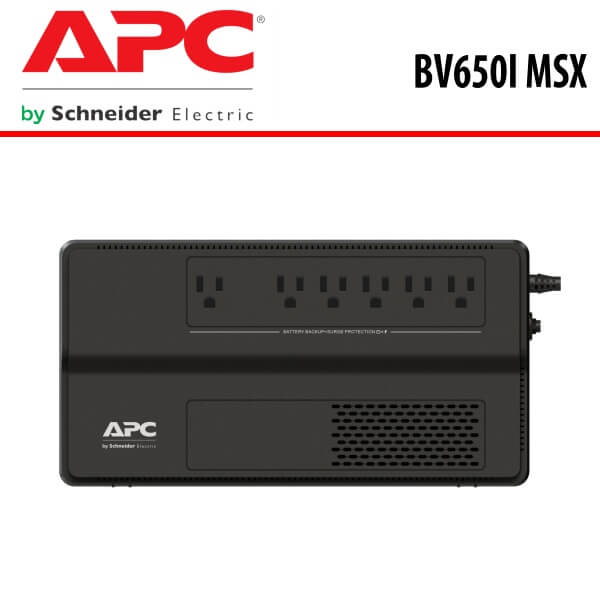

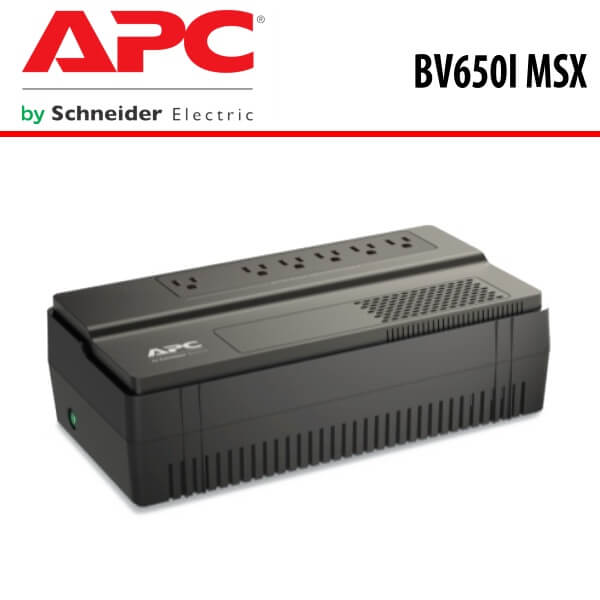

APC BV650I MSX Nigeria

Rating

APC BV650I MSX Nigeria

The APC BV650I MSX Nigeria provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.

Category:

Description

APC BV650I MSX UPS Nigeria

The APC BV650I MSX Nigeria provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments. It is an award-winning Smart-UPS and is the most popular UPS in the world for servers, storage and networks. Trust to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. APC BV650I MSX Nigeria automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment. Besides, it preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

APC BV650I MSX features an intelligent system providing an easy-to-read status of the unit and utility power conditions, issuing notification of changing utility power and UPS power conditions like battery failure notification by providing early-warning fault analysis on batteries enabling timely preventive maintenance. Also, maximizes battery performance, life, and reliability through intelligent, precision charging. Allow flexibility for setup in tight locations and mounting on wall or other surfaces.

Features

Automatic Voltage Regulation (AVR)

The APC BV650I MSX Nigeria automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment. Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

Protection

Battery backup and surge protection : Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage. Battery and surge protected outlets : Back up and protect your hardware and data during power outages, surges and spikes.

Cold-start capable

The APC BV650I MSX provides temporary battery power when the utility power is out.

Sleek design

The APC BV650I MSX has slim, modern design with upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

Transformer-block spaced outlets

This device protects equipment with input transformer blocks without blocking access to other receptacles.

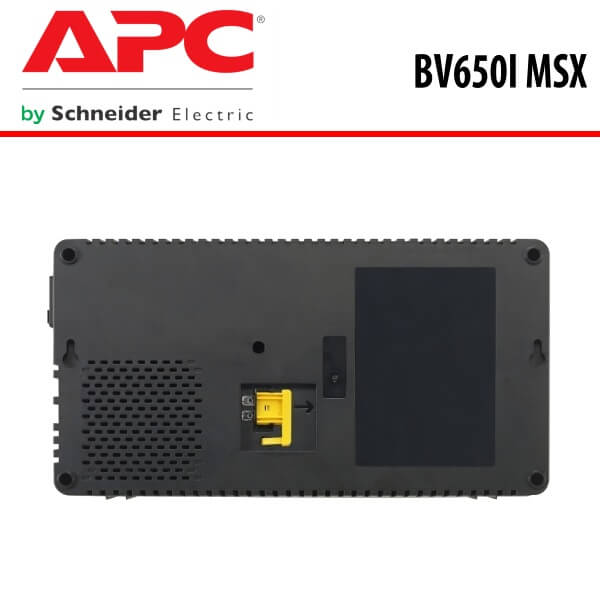

Wall-mount holes

Allow flexibility for setup in tight locations and mounting on wall or other surfaces.

LED Indicators

The APC BV650I MSX is simple to operate as it is equipped with LED indicators providing easy-to-read status of the unit and utility power conditions.

Audible alarms

Provides notification of changing utility power and UPS power conditions. Battery failure notification by providing early-warning fault analysis on batteries enabling timely preventive maintenance

Intelligent battery management

APC BV650I MSX maximizes battery performance, life, and reliability through intelligent, precision charging.

Advanced Safety Features

Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

APC BV650I MSX benefits

  • Automatic self-test : Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Intelligent battery management : Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Battery failure notification : Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Battery and surge protected outlets : Back up and protect your hardware and data during power outages, surges and spikes.
  • Surge only outlets : Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage

Specifications

General properties

  • Output power capacity : 375Watts / 650VA
  • Output Connections : (6) IEC 320 C13 (Battery Backup)
  • Nominal Output Voltage : 230V
  • Nominal Input Voltage : 230V
  • Input Connections : IEC-320 C14
  • Cord Length : 1.52meters

Output

  • Max Configurable Power (Watts) : 375Watts / 650VA
  • Output Frequency (not synced) : 50/60 Hz +/-1 Hz
  • Topology : Line Interactive
  • Waveform type : Stepped approximation to a sinewave
  • Transfer Time : 6ms typical: 10ms maximum

Input

  • Input frequency : 50/60 Hz +/- 5 Hz (auto sensing)
  • Number of Power Cords : 1
  • Batteries & Runtime
  • Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
  • Expected Battery Life (years) : 3 – 5

Efficiency

  • Communications & Management
  • Control panel : LED Status display with On Line: On Battery
  • Audible Alarm : Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm

Physical

  • Maximum Height : 92MM, 9.25CM
  • Maximum Width : 160MM, 16.05CM
  • Maximum Depth : 305MM, 30.5CM
  • Net Weight : 4.5KG
  • Shipping weight : 4.8KG
  • Shipping Height : 237MM, 23.7CM
  • Shipping Width : 143MM, 14.3CM
  • Shipping Depth : 373MM, 37.3CM
  • SCC Codes : 1073130433830 4

Environmental

  • Operating Temperature : 0 – 40 °C
  • Operating Relative Humidity : 0 – 90 %
  • Operating Elevation : 0-1968.3meters
  • Audible noise at 1 meter from surface of unit : 40.0dBA
